Rollease 4" Fabricated Fascia RFP4

Write a review
Free Shipping to the 48 contiguous states
$66.00  Each
UWRFP4
+ −
Custom Shades - Typ. Ships in 14 to 21 Business Days (Info ?)

Fascia Color
The aluminum fascia is available as anodized aluminum or powder coated paint options: White, Vanilla, Bronze, Black

Fascia brackets are provided as color coordinated but you can request different color brackets by making a comment on your order.
Note: Gray brackets are provided with the anodized aluminum fascia.

Product pictures may not represent colors accurately.
White Fascia
White Fascia White
White
Vanilla Fascia
Vanilla Fascia Vanilla
Vanilla
Black Fascia
Black Fascia Black
Black
Bronze Fascia
Bronze Fascia Bronze
Bronze
Anodized Fascia
Anodized Fascia Anodized
Anodized

Fascia Brackets
Choose from the available options. The Rollease options are included in the cost of the fascia. The ZMC options are upgrades at an additional cost. In some cases you may be required to use one or the other.

  • Rollease RB581+RTN Fascia Brackets with stick-on end plates.
    Use this option if your shade uses a Rollease R16/R24 clutch and if you want the brackets to hold both the fascia and shade.

  • ZMC RS-UG Fascia Brackets with snap-on end plates.
    Use this option if your shade uses a Rollease R3/ R8 clutch. Somfy LT30, R28, ST30 or ST40 motors and if you want the brackets to hold both the fascia and shade.

  • ZMC RS-XX Fascia Brackets with snap-on end plates.
    Use this option if your shade uses a Somfy ST50 motor with the star head design and if you want the brackets to hold both the fascia and shade. We only use the star head motors with our shades.

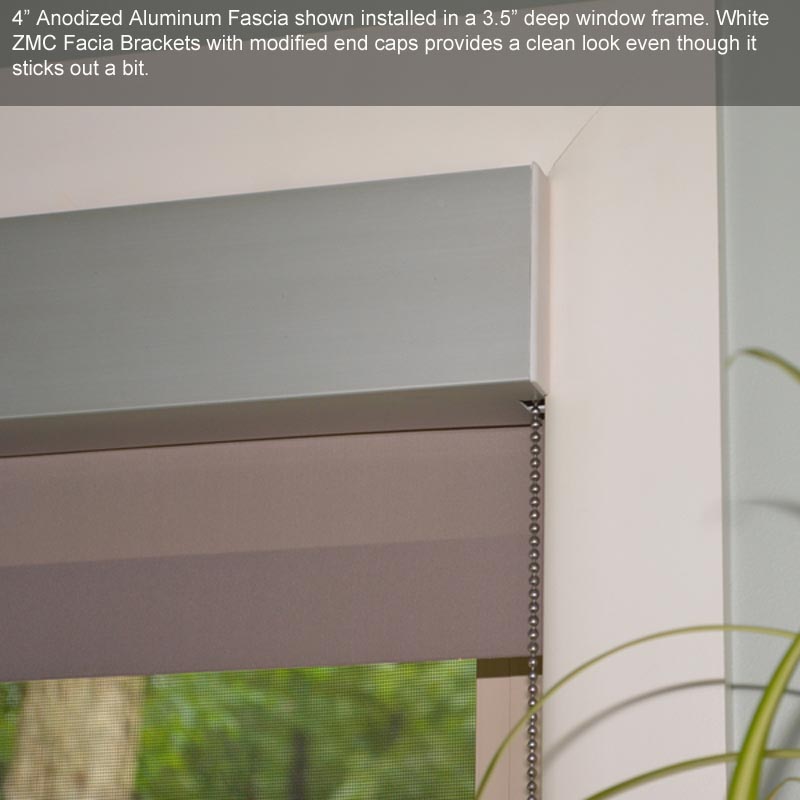

The provided fascia bracket covers are not intended for use with shades mounted inside the window frame unless modified like we show in the product picture.

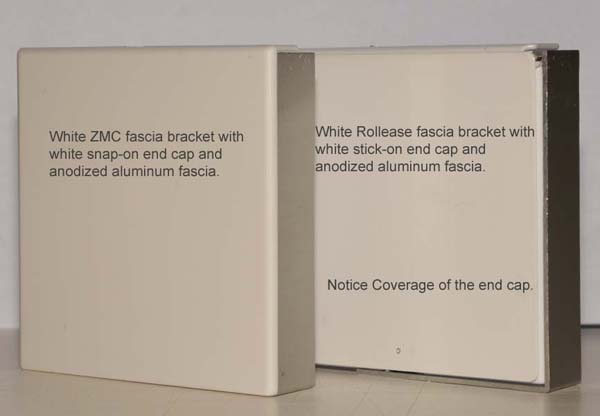

Note: The ZMC snap-on end plates fascia bracket covers are far more aesthetically pleasing than the Rollease option. Unfortunately, the ZMC bracket covers are not directly compatible with the Rollease brackets. You could purchase the ZMC covers as a separate item to use with the Rollease brackets if you cut the snap tabs off and use tape to adhere the cover to the bracket.

Fascia brackets are provided as color coordinated but you can request different color brackets by making a comment on your order.
Note: Gray brackets are provided with the anodized aluminum fascia.

Product pictures may not represent colors accurately.

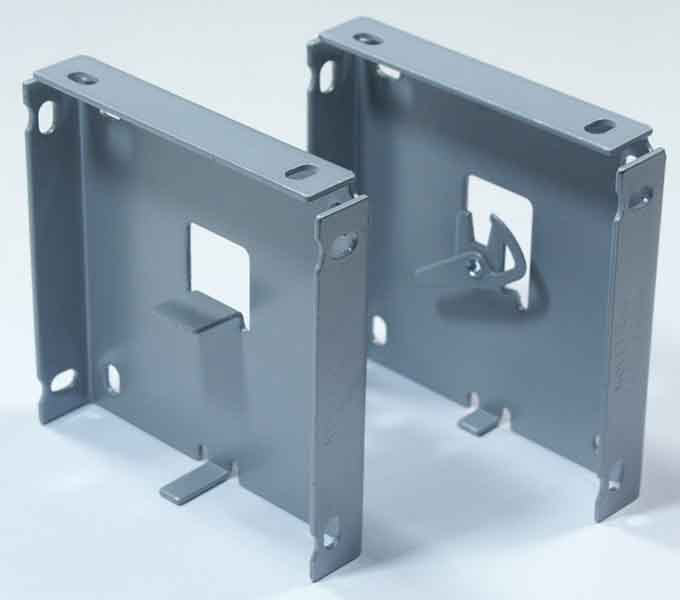

Rollease RB581+RTN Fascia Brackets
Rollease RB581+RTN Fascia Brackets RB581+RTN w/End Plates
RB581+RTN w/End Plates

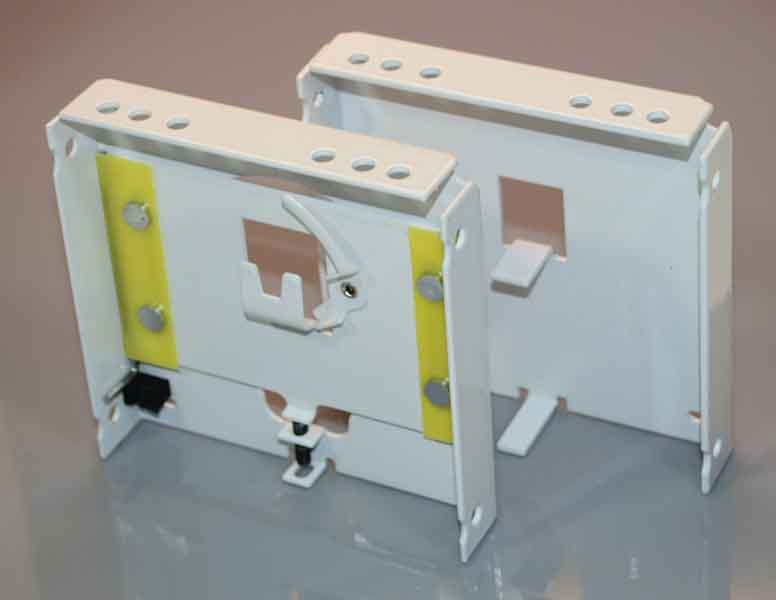

ZMC RS-UGF Fascia Brackets
ZMC RS-UGF Fascia Brackets RS-UG w/End Plates
RS-UG w/End Plates

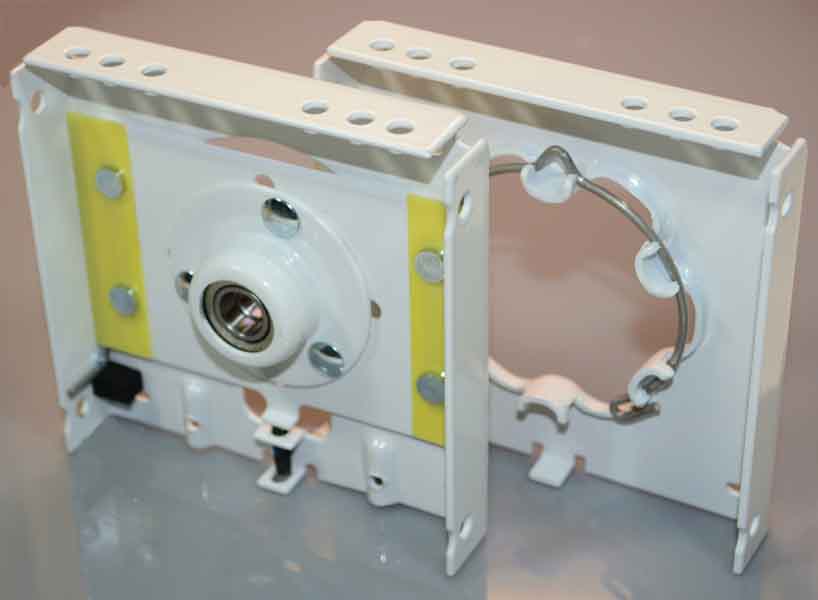

ZMC RS-851 and RS-811 Fascia Brackets
ZMC RS-851 and RS-811 Fascia Brackets RS-XX w/End Plates
RS-XX w/End Plates

Fascia Drive
Clutch and Chain driven shades require the fascia to be notched so the chain can drop through the fascia. Motorized shades do not require a notch. Notching of the fascia is a free service. The drive side of the shade is defined as you are facing the shade from the inside of the room.

Please select NA for motorized shades or if you do not want the fascia notched because your shade is hung using separate brackets and the fascia is going to be wider than the shade.

Left Side Drive - Drive Mechanism on the left.
Left Side Drive - Drive Mechanism on the left. Clutch Left
Clutch Left
Right Side Drive - Drive Mechanism on the right.
Right Side Drive - Drive Mechanism on the right. Clutch Right
Clutch Right

An (Optional) Text Field is provided to enter your specific shade ID. The shade packaging will have this ID marked on it for easy identification.

Please use abbreviations:
Master Bedroom might be MB
North, South, East or West might be N,S,E,W.
Right and Left might be L, R
Multiple windows might be A,B,C, 1, 2, 3
So your final Shade ID might look like: MB-ER1

An (Optional) Text Field is provided for any comments you might have regarding this specific shade.

Description

The Rollease RFP Series aluminum fascia panel simply snaps into the fascia panel brackets for easy access to the roller shade components. The RFP series fascia panel can be used for inside or outside frame mount applications. This fascia panel covers the front and bottom to hide the shade assembly. The back and top of the fascia are left open. The use of this fascia panel forces the shade to use regular roll. Regular roll puts the shade material closest to the window. The 4" Fascia panel is our standard size offered which is compatible with our chain driven & motorized shades. Please check your roll diameter with the shade calculator below and make sure your shade will fit!

Rollease RFP4 4" Aluminum Fascia Specifications
   •  4" Aluminum Fascia - (4.1" x 4.1" Actual)
   •  Shades must be REGULAR Roll - Material Rolls Back towards Glass
   •  Fascia Covers Front and Partial Bottom - top and back are open
   •  Fascia Snaps into Fascia Brackets - Easy On/Off
   •  Fascia Brackets hold the fascia and typically hold the shades
   •  Fascia can be used for inside frame or outside frame mount.
   •  Brackets can be used for Side-wall, Back-wall or Ceiling mounting
   •  Notching of fascia is required for clutch/chain driven shades.
   •  Includes: Fascia, Brackets**, Bracket covers. Notching (When Required)
   •  Mounting hardware not included
   •  Free Standard Ground Shipping to the 48 contiguous states.

Compatible Clutches and Motors
   •  Rollease R3, R8, R16 and R24 Clutches
   •  Somfy LT30, R28, ST30, ST40 & ST50 Motors
   •  Rollease 0.2, 1.1 & 2.0Nm Motors

WIDTH: The width you specify will be the overall tip to tip length of the fascia including brackets. End plates are never used as part of this measurement. Bracket covers should not be used for inside mount installations unless modified like we show in our picture where the end plate was cut to only cover the exposed portion of the fascia.

* Drilling through the bracket may be required for side wall mounting.

** Some brackets come at an additional cost.

Rollease 4" Fascia - Additional Information

Calculate your Roll Diameter - Make sure the shade fits in the fascia!

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

Maximum Shade Heights for Rollease 4" Fascia
