Rollease 3" Fabricated Fascia RFP3

Write a review
Free Shipping to the 48 contiguous states
$57.00  Each
UWRFP3
+ −
Custom Shades - Typ. Ships in 14 to 21 Business Days (Info ?)

Fascia Color
The aluminum fascia is available as anodized aluminum or powder coated paint options: White, Vanilla, Bronze, Black

Fascia brackets are provided as color coordinated but you can request different color brackets by making a comment on your order.
Note: Gray brackets are provided with the anodized aluminum fascia.

Product pictures may not represent colors accurately.

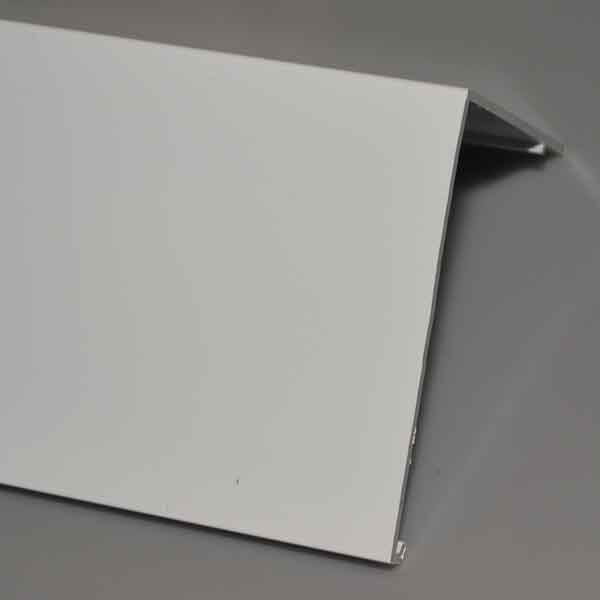

White Fascia
White Fascia White
White

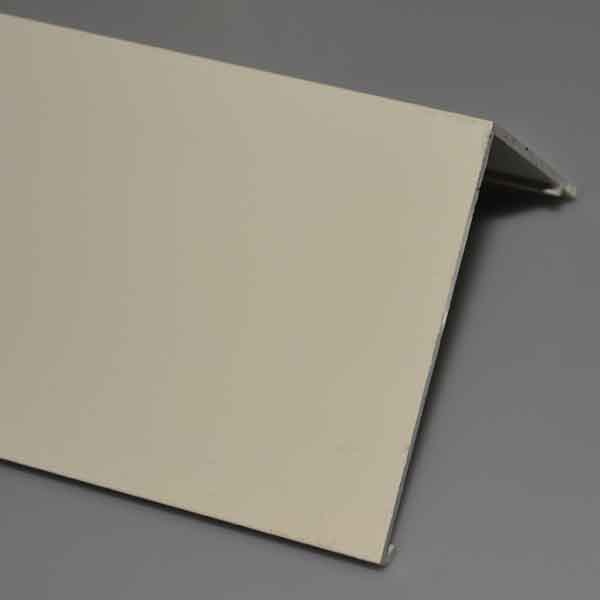

Vanilla Fascia
Vanilla Fascia Vanilla
Vanilla

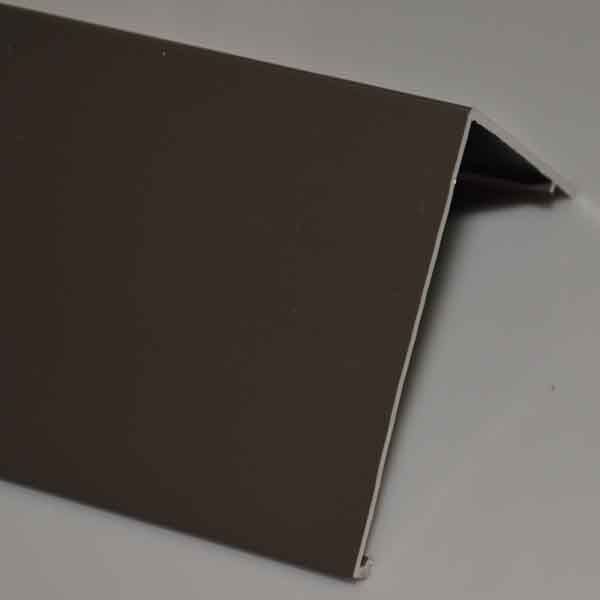

Bronze Fascia
Bronze Fascia Bronze
Bronze

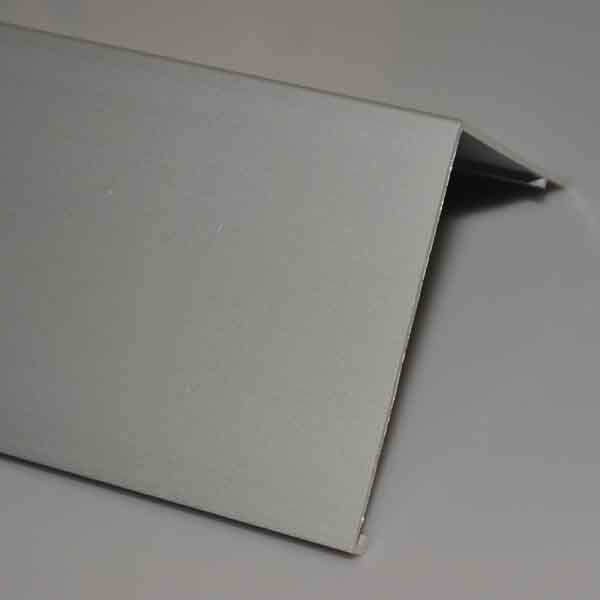

Anodized Fascia
Anodized Fascia Anodized
Anodized

Fascia Brackets

  • Rollease RB362+RTN Fascia Brackets with stick-on end plates.
    These brackets are compatible with Rollease R3/R8 clutches, Somfy LT30, R28, ST30, ST40 motors and Rollease 0.1, 1.1 and 2.0 Nm motors.

  • Rollease RB561+RTN Fascia Brackets with stick-on end plates.
    These brackets are compatible with Rollease R16 clutches.

The provided fascia bracket covers are not intended for use with shades mounted inside the window frame unless modified like we show in the product picture. The stick-on Rollease fascia bracket covers do not provide fullcoverage of the ends.

Fascia brackets are provided as color coordinated but you can request different color brackets by making a comment on your order.
Note: Gray brackets are provided with the anodized aluminum fascia.

Product pictures may not represent colors accurately.

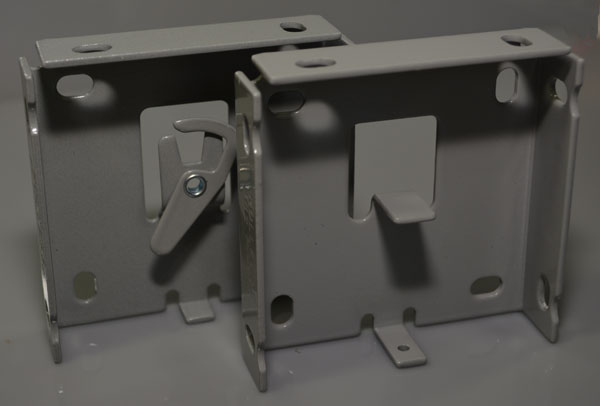

Rollease RB362+RTN Fascia Brackets
Rollease RB362+RTN Fascia Brackets RB362+RTN
RB362+RTN

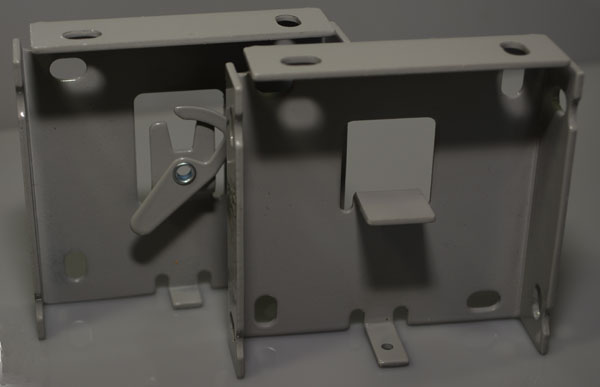

Rollease RBRB561+RTN Fascia Brackets
Rollease RBRB561+RTN Fascia Brackets RB561+RTN
RB561+RTN

Fascia Drive
Clutch and Chain driven shades require the fascia to be notched so the chain can drop through the fascia. Motorized shades do not require a notch. Notching of the fascia is a free service. The drive side of the shade is defined as you are facing the shade from the inside of the room.

Please select NA for motorized shades or if you do not want the fascia notched because your shade is hung using separate brackets and the fascia is going to be wider than the shade.

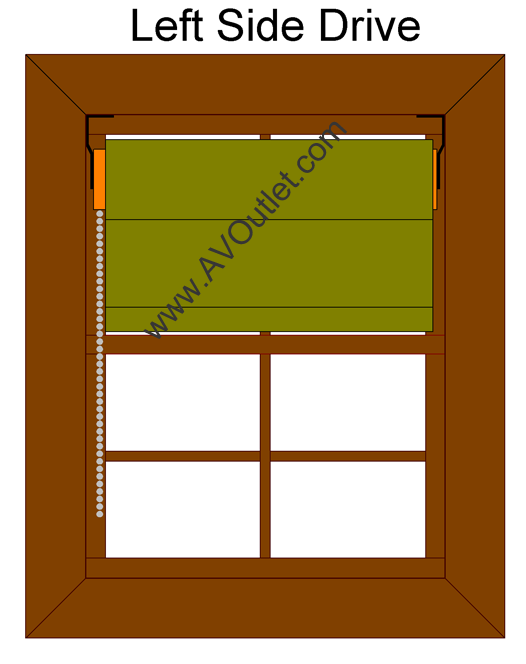

Left Side Drive - Drive Mechanism on the left.
Left Side Drive - Drive Mechanism on the left. Clutch Left
Clutch Left

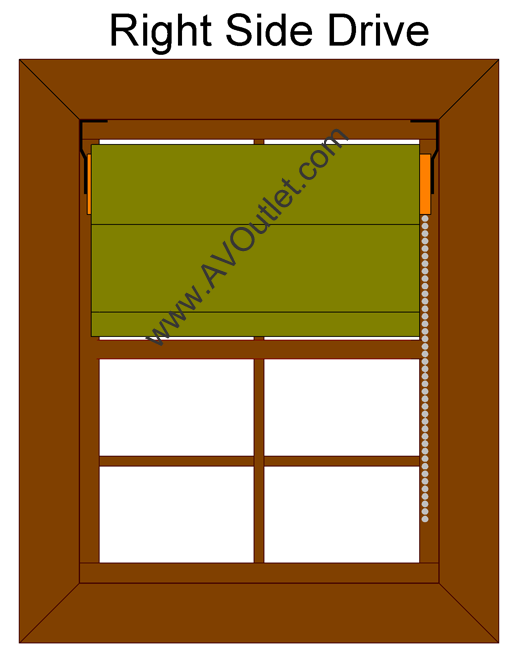

Right Side Drive - Drive Mechanism on the right.
Right Side Drive - Drive Mechanism on the right. Clutch Right
Clutch Right

An (Optional) Text Field is provided to enter your specific shade ID. The shade packaging will have this ID marked on it for easy identification.

Please use abbreviations:
Master Bedroom might be MB
North, South, East or West might be N,S,E,W.
Right and Left might be L, R
Multiple windows might be A,B,C, 1, 2, 3
So your final Shade ID might look like: MB-ER1

An (Optional) Text Field is provided for any comments you might have regarding this specific shade.

Description

The Rollease RFP Series aluminum fascia panel simply snaps into the fascia panel brackets for easy access to the roller shade components. The RFP series fascia panel can be used for inside or outside frame mount applications. This fascia panel covers the front and bottom to hide the shade assembly. The back and top of the fascia are left open. The use of this fascia panel forces the shade to use regular roll. Regular roll puts the shade material closest to the window. The 3" Fascia panel is compatible with our chain driven & motorized shades. Please check your roll diameter with the shade calculator below and make sure your shade will fit!

Rollease RFP3 3" Aluminum Fascia Specifications
   •  3" Aluminum Fascia - (3.1" x 3.1" Actual)
   •  Shades must be REGULAR Roll - Material Rolls Back towards Glass
   •  Fascia Covers Front and Partial Bottom - top and back are open
   •  Fascia Snaps into Fascia Brackets - Easy On/Off
   •  Fascia Brackets hold the fascia and typically hold the shades
   •  Fascia can be used for inside frame or outside frame mount.
   •  Brackets can be used for Side-wall, Back-wall or Ceiling mounting
   •  Notching of fascia is required for clutch/chain driven shades.
   •  Includes: Fascia, Brackets w/ End Plates and Notching (When Required)
   •  Mounting hardware not included
   •  Free Standard Ground Shipping to the 48 contiguous states.

Compatible Clutches and Motors
   •  Rollease R3 and R8 Clutches
   •  Somfy LT30, R28, ST30 and ST40 Motors
   •  Rollease 0.2, 1.1 & 2.0Nm Motors

WIDTH: The width you specify will be the overall tip to tip length of the fascia including brackets. End plates are never used as part of this measurement. Bracket covers should not be used for inside mount installations unless modified like we show in our picture where the end plate was cut to only cover the exposed portion of the fascia.

* Drilling through the bracket may be required for side wall mounting.

Rollease 3" Fascia - Additional Information

Calculate your Roll Diameter - Make sure the shade fits in the fascia!

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

Maximum Shade Heights for Rollease 3" Fascia
