ZMC RS-UG 4" Fascia Brackets for Rollease R3/R8 Clutches and Motors

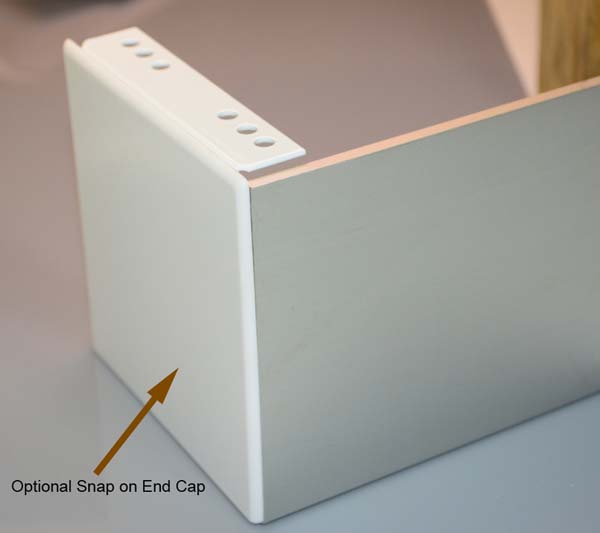

The ZMC RS-UG is a fascia bracket for use with the 4" Rollease RFP4 fascia. The 2 in 1 fascia bracket holds both the fascia panel and shade in place. The RS-UG (F thru J) allow the Rollease R3/R8 clutch and motors with tab style mounting to be used in the Rollease 4" RFP4 fascia. The ZMC RS-UG series brackets feature a leveling screw so that the shade can be easily leveled post installation. Another improvement over the Rollease brackets is the use of a much more attactive end cap for outside mount installations. The optional end cap simply snaps in place.

ZMC RS-UG 4" Fascia Bracket Specifications
   •  Compatible with ZMC and Rollease RFP4 4" Fascia
   •  Drive Bracket Tab Width: 0.4"
   •  Compatible with Rollease R3 and R8 Clutches
   •  Compatible with Motors: Somfy R28/ST30, Gaposa XS30/40, A-OK AM25/28 and more
   •  Color: White, Gray, Black, Bronze
   •  Brackets can be used for Side Wall, Back Wall Or Ceiling Mounting
   •  Adjustable leveling via set screw with included hex key
   •  Comparable to Rollease RB581-RTNM3 Fascia Brackets
   •  ZMC Bracket Part Numbers:
         -  RS-UGF - White Brackets
         -  RS-UGI - Gray Brackets
         -  RS-UGJ - Black Brackets
         -  RS-UGG - Bronze Brackets
   •  Sold as a Set

OPTIONAL ITEMS

•  Bracket Covers
         -  RS-UI1 - White Bracket End Caps
         -  RS-UI4 - Gray Bracket End Caps
         -  RS-UI5 - Black Bracket End Caps

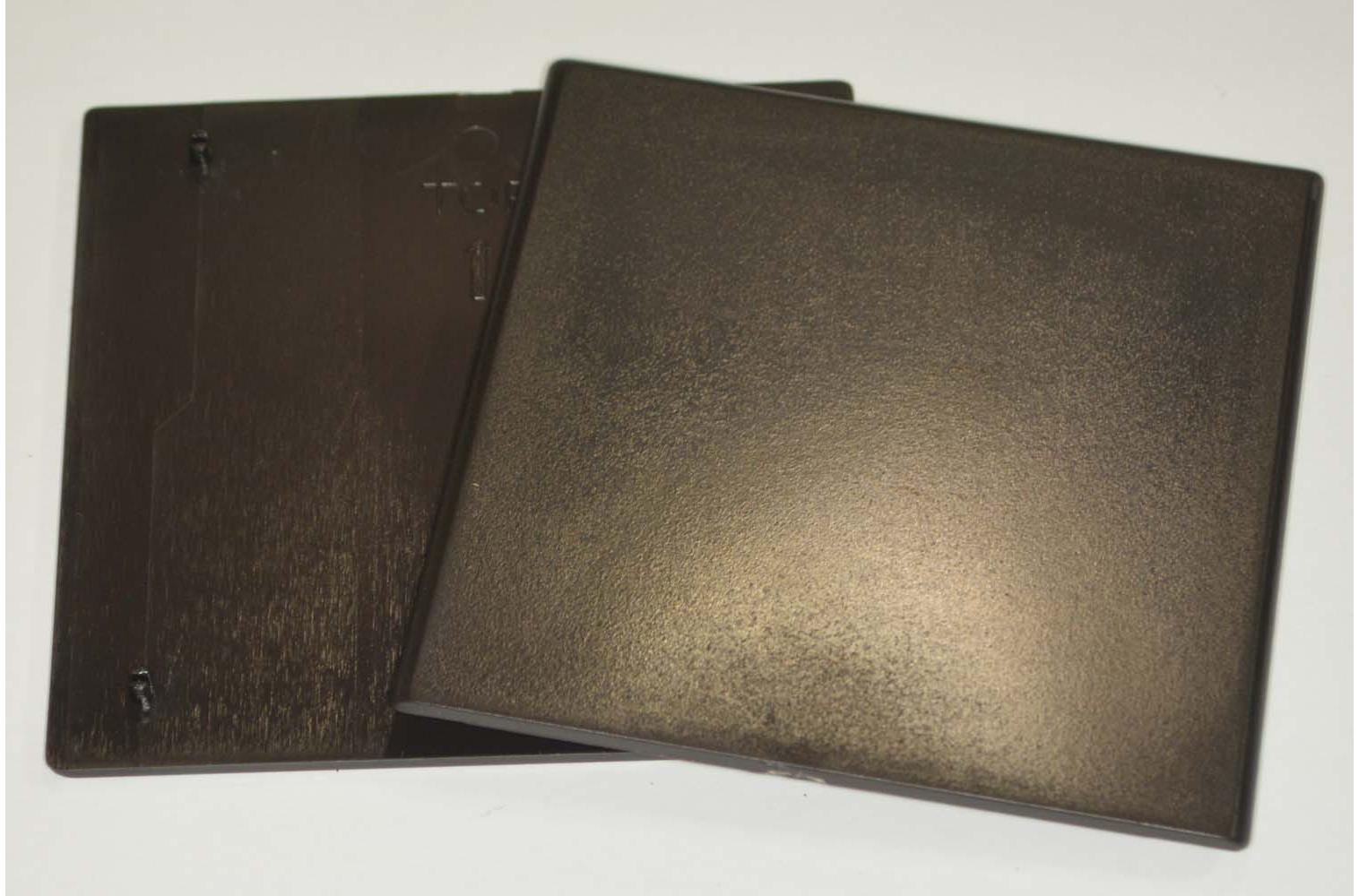

         -  RS-UI2 - Bronze Bracket End Caps

How to Snap the Fascia in Place

Rollease 4" Fascia - Additional Information - PDF
