Description

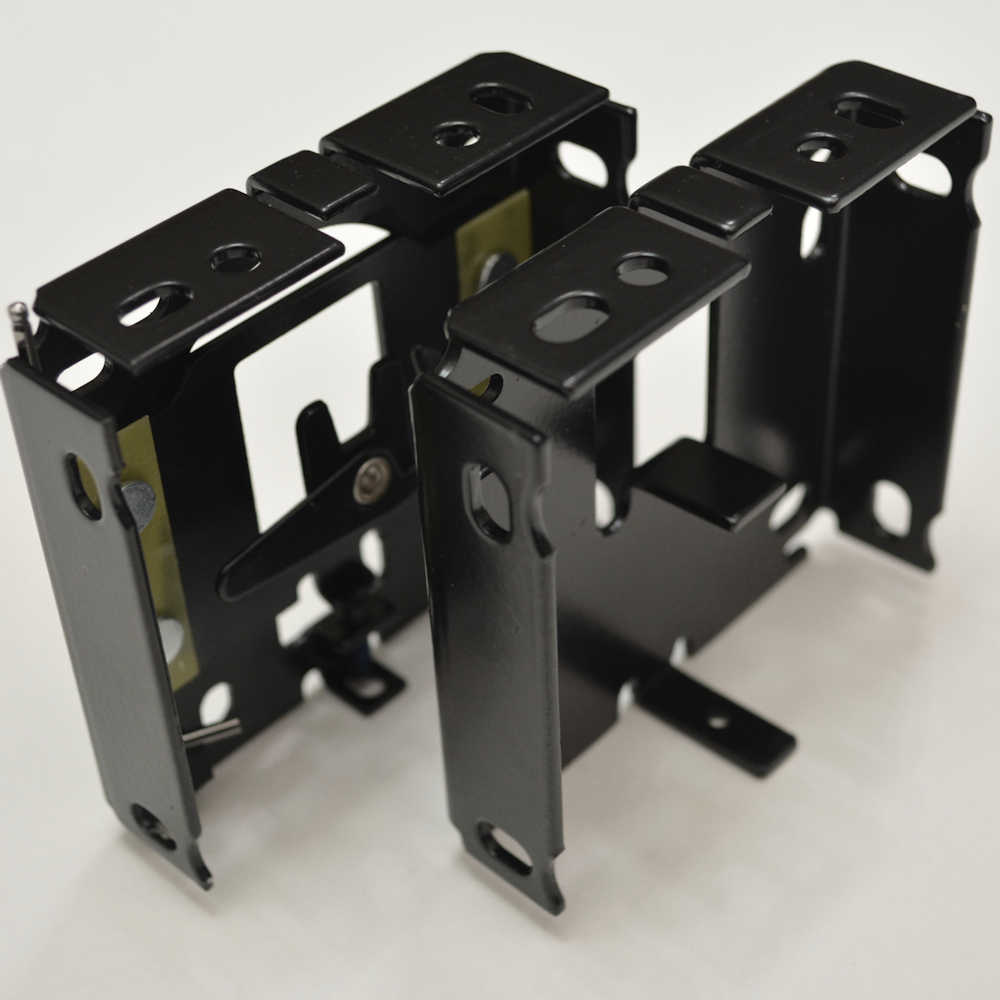

The ZMC RS-UE is a fascia bracket for use with the 3" Rollease RFP3 fascia. The 2 in 1 fascia bracket holds both the fascia panel and shade in place. The RS-UE series allows the Rollease R3/8 clutch and motors to be used in the Rollease 3" RFP3 fascia. The ZMC RS-UE series brackets feature a leveling screw so that the shade can be easily leveled post installation. The optional snap-in end caps are recommended for outside mount installations.
ZMC RS-UE 3" Fascia Bracket Specifications
• Compatible with ZMC and Rollease RFP3 3" Fascia
• Drive Bracket Tab Width: 0.4"
• Compatible with Rollease R3 and R8 Clutches
• Compatible with Motors: Somfy R28/ST30, Gaposa XS30/40, A-OK AM25/28 and more
• Color: Black
• Brackets can be used for Side Wall, Back Wall Or Ceiling Mounting
• Adjustable leveling via set screw with included hex key
• Comparable to Rollease RB362 Fascia Brackets
• ZMC Bracket Part Numbers:
- RS-UEA - White Brackets
- RS-UED - Gray Brackets
- RS-UEE - Black Brackets
• Sold as a Set
