Description

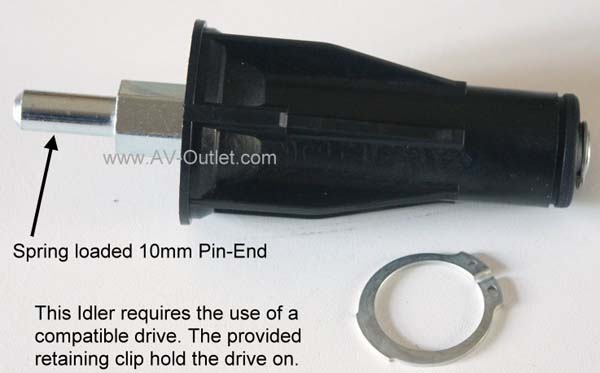

The Somfy 9420800 Universal Idler End Cap is used opposite the motor and can be used for a variety of tube sizes. The 9420800 Idler features a spring loaded 10mm shaft that allows for easier installation of the shade assembly within the mounted brackets. This idler can NOT be used by it self it must be used in conjunction with the appropriate drive for the specified tube size being used. We stock this idler for use with the Somfy or Rollease 2" smooth wall tubes which requires the use of the Somfy 9206088 2" Hard clip Drive and we also stock this idler for use with the Rollease 2.5" tube which requires the Rollease RTA6U50 crown and drive kit. The use of the universal idler with smooth wall tubes does require the end of the tube to be notched and the assembly must be either riveted or screwed in place. The nice thing with the 2.5" Rollease tubes is that no modification is necessary to the tube since their tube design features an aggressive internal rib pattern. The Universal idler does come with a retaining clip to hold the drive on the idler assembly.
Somfy 10mm Universal Collapsible Idler
• Universal Design for use with a wide range of tubes
• Heavy Duty Constructions of Delrin and Steel
• Spring Loaded 10mm End Pin
• Includes Retaining clip
• Requires Compatible Tube Adapters - Not Included
• 10mm Shaft Extension - 1.6"
• 10mm Shaft Compresses - 1.2" (Minimum extension 0.40")
• Overall Insertion Depth without Attached Drive: 3.7"
• Overall Length: 5.4"
• Somfy Part #: 9420800
• Optional Drives:

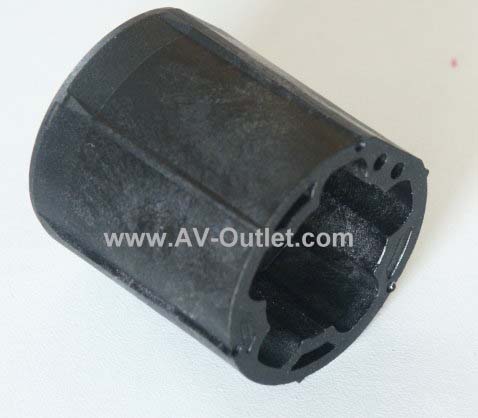

- 9206088 Hard Clip Drive for 2" Smooth Wall Tubes

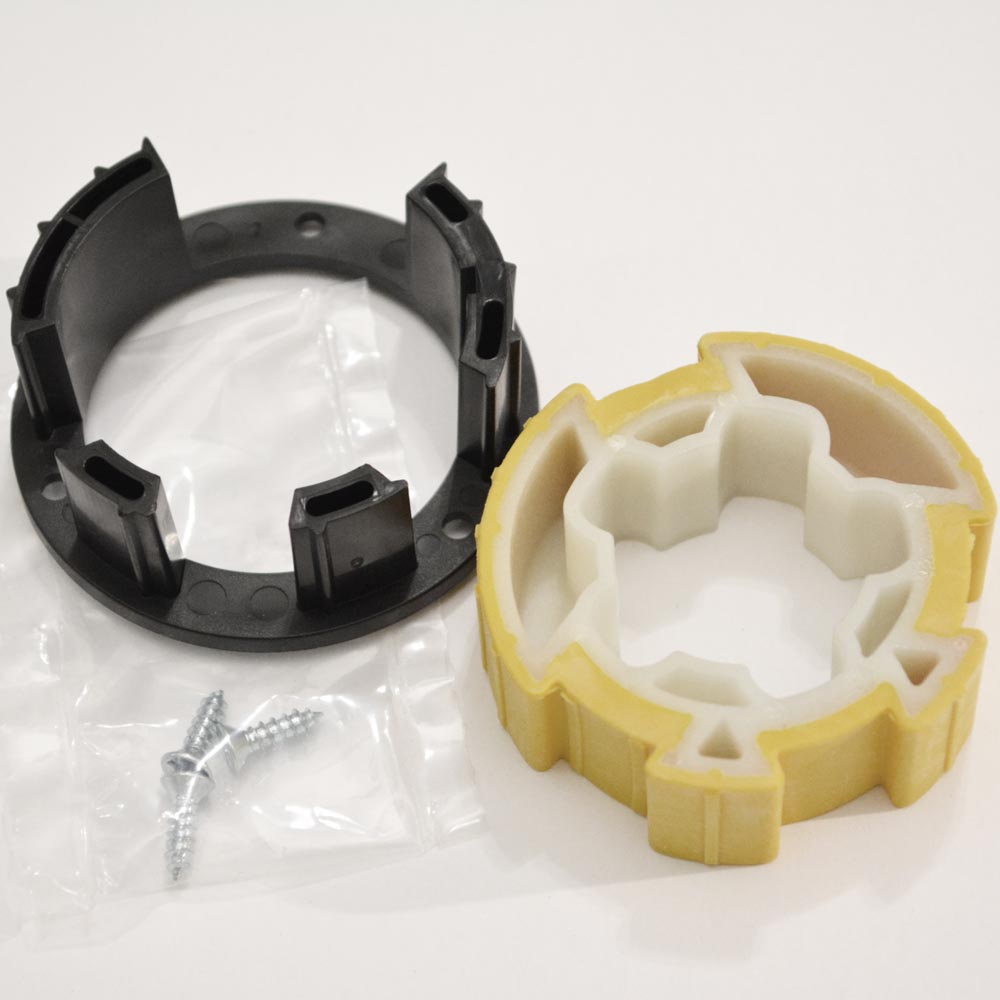

- RTA6U50 Adapter Kit for 2.5" Rollease Tubes

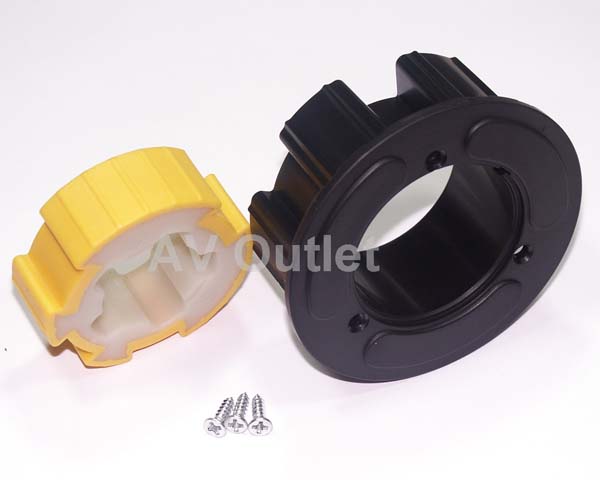

- RTA7U50 Adapter Kit for 3.5" Rollease Tubes

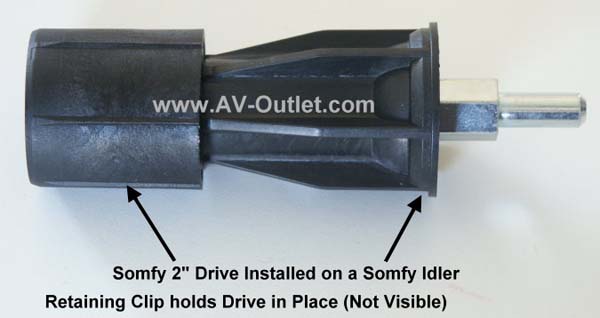

Somfy Universal Idler with 2" Drive Installed
Somfy 9420800 Universal Idler Instructions - Sorry we could not get them in English
