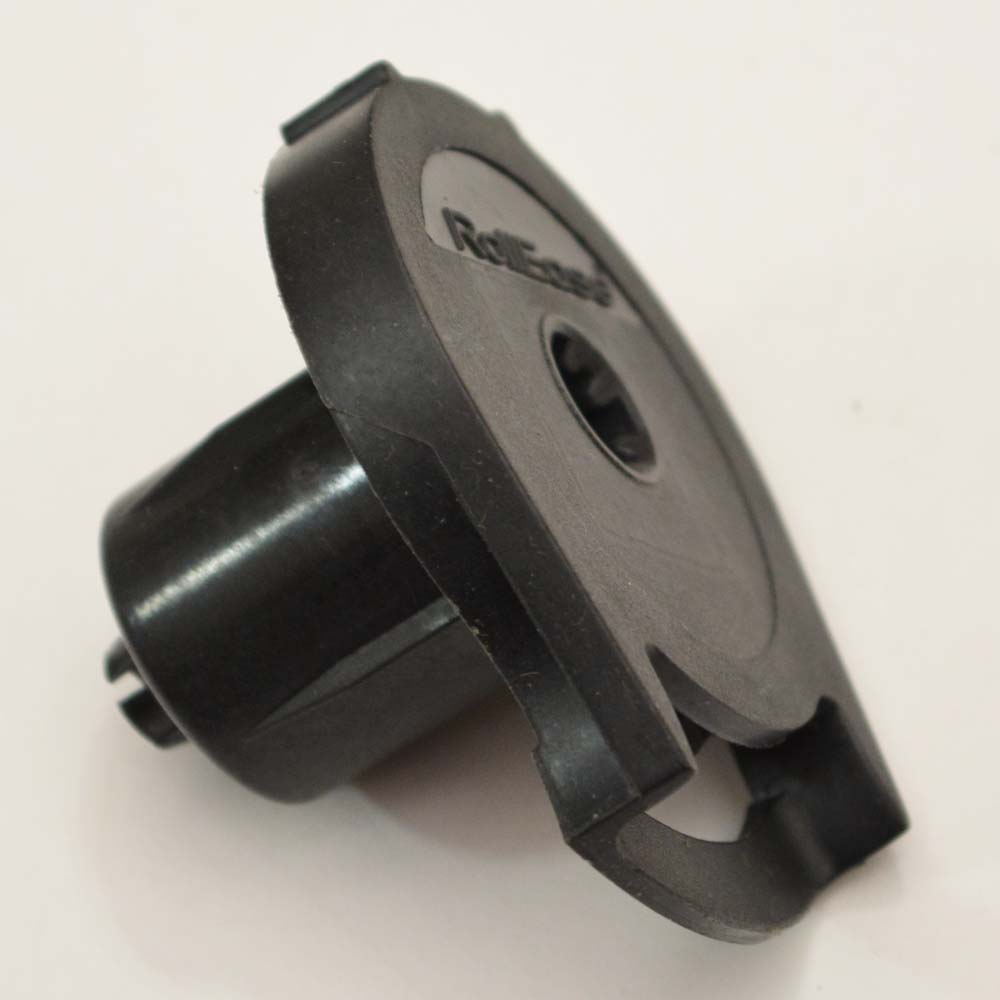

Rollease R8C01 Clutch Drive for 1.125" Roller Shade Tubes

The Rollease R8C01 clutch is designed for use with shades that are small to mid sized and has a 8lb holding capacity in a 1.125" tube.

Rollease R8C01 Clutch Specifications:
   •  Chain/Clutch Drive for 1.125" Rollease Roller Shade Tubes
   •  Color: Vanilla or Black
   •  Allows for Chain Drive of roller shades
   •  Head Diameter: 1.94"
   •  Insertion Depth: 1.07"
   •  Insertion Diameter: 0.9625" (Designed for a press fit)
   •  Protrusion From Tube: 0.42"
   •  Holding Capacity: 8lb on 1.125" Tube
   •  Compatible Beaded Chain: Rollease RBC #10 Beaded Chain
   •  Compatible Tube: Rollease RTEA2T 1.125" (28mm)
   •  Compatible Brackets: Rollease RB360, RB380 and RB390
   •  Compatible End Plug: Rollease REP01 End Plug

Rollease Clutch Brochure

Roller Shade Component Dimensions

Rollease Clutch and Chain Shade Fabrication

Chain/Clutch Driven Roller Shade Installation Instructions

Note: We sell the clutch kits without consideration of use. Clutches are rated for capacity to hold a material in place. Clutches with small heads require more pull force to lift a shade than a clutch with a larger head. Larger tubes will require more pull force than smaller tubes. Below are our generic recommendations for clutch use which are conservative. Tube deflection and pull force are considered.
   •  Shades up to 36" width - R8C02 Clutch and 1" Tube
   •  Shades up to 48" width - R8C01 Clutch and 1.125" Tube
   •  Shades up to 60" width - R8C03 Clutch and 1.25" Tube
   •  Shades up to 64" width - R8C14 Clutch and 1.5" Tube
   •  Shades up to 96" width - R16 or R24 Clutch and 1.5" Tube
   •  Shades up to 120" width - R16 or R24 Clutch and 2" Tube
   •  Shades up to 144" width - R24 Clutch and 2.5" Tube

Actual shade size, tube size and material should be used to determine the true limits of a system. The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube and causes ripples in the hanging shade material.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
