A-OK AM35-6/28-MEL RF 120VAC Roller Shade Motor

The A-OK AM35 shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact you can control the shades in your living room from your bedroom completely wirelessly. The A-OK motor stores the limits set by the remote controls.

Special Features - Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. With the momentary press of a button, you can command the shade to go to the Full up or Full Down position. Need more programmable stopping positions, not a problem, the A-OK motors can be programmed for up 6 stopping positions (4 intermediate). The advanced RF control technology offers the user individual or group control. Each motor can be controlled by more than one remote control so you can have dedicated room controls and master controls for the whole home.

Note: The remote controls do not have individual buttons to command control of the intermediate positions. When you press the up or down button the shade will move to the next programmed stopping point. You can command the shade to bypass the intermediate stopping points by double pressing the Up or Down buttons with a 1 second pause between presses.

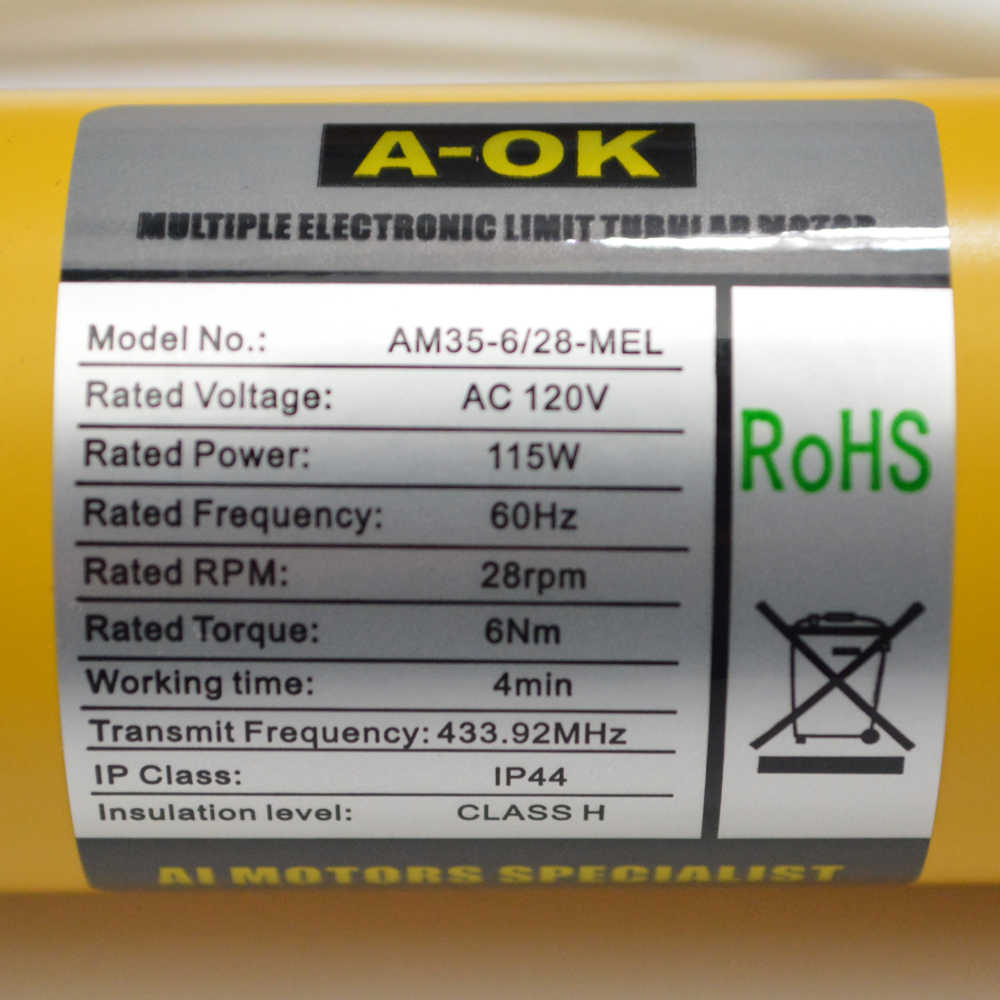

A-OK AM35-6/28-MEL 120VAC Roller Shade Motor Specifications
   •  Power: 120VAC 1A
   •  Torque: 6Nm
   •  Lift Capacity - Not Including Tube Weight
        -  2" Tube: 53.11lb *
        -  2.5" Tube: 42.48lb *
   •  Motor Speed: 28 RPM
   •  Quiet Operation : 43dBa
   •  Soft Stop: No
   •  6 Programmable Stops (4 Intermediate)
   •  Compatible with A-OK RF Control Technology (433.92 MHz)
   •  Motor Power Cable: 39" Non-Terminated
   •  Attached Antenna: 7.5"
   •  Compatible Tubes:
        -  Rollease RTEA5T 2" Tubes
        -  Rollease RTEA6T 2.5" Tubes
   •  Requirements for use - Not Included
        -  A-OK RF Remote
   •  Dimensions

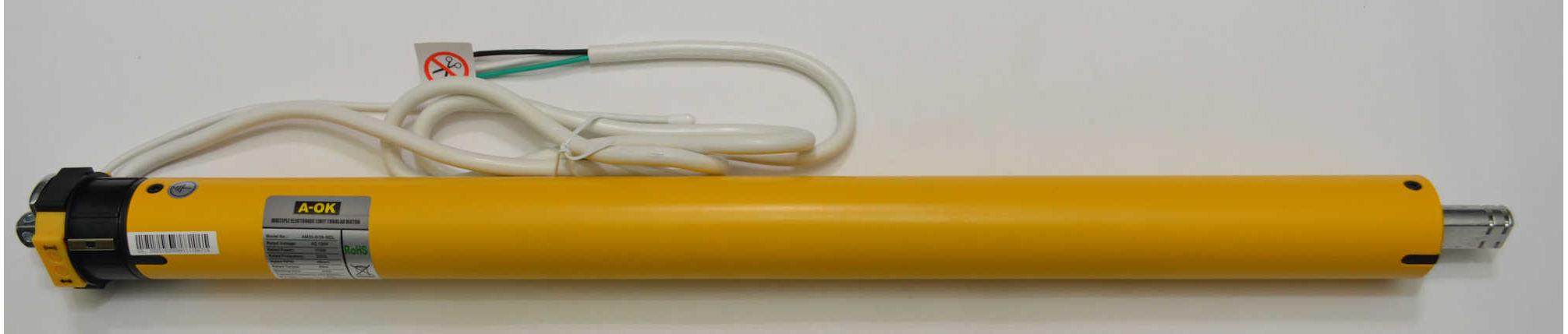

        -  Overall: 19 1/4" L x 1.5" D - Insertion Dia.: 1.38"
   •  Weight: App. 3.04lb
   •  Warranty 5 years
   •  Includes:

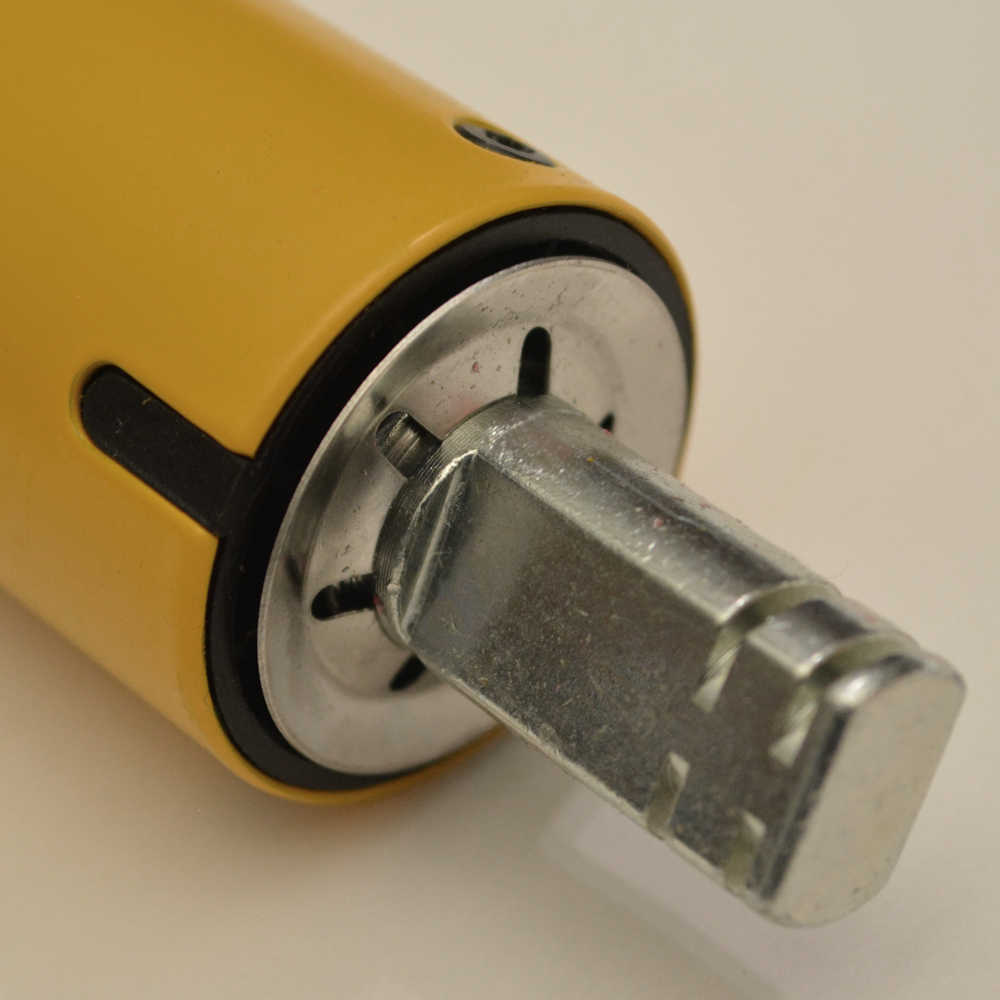

        -  AM35-6/28-MEL Motor

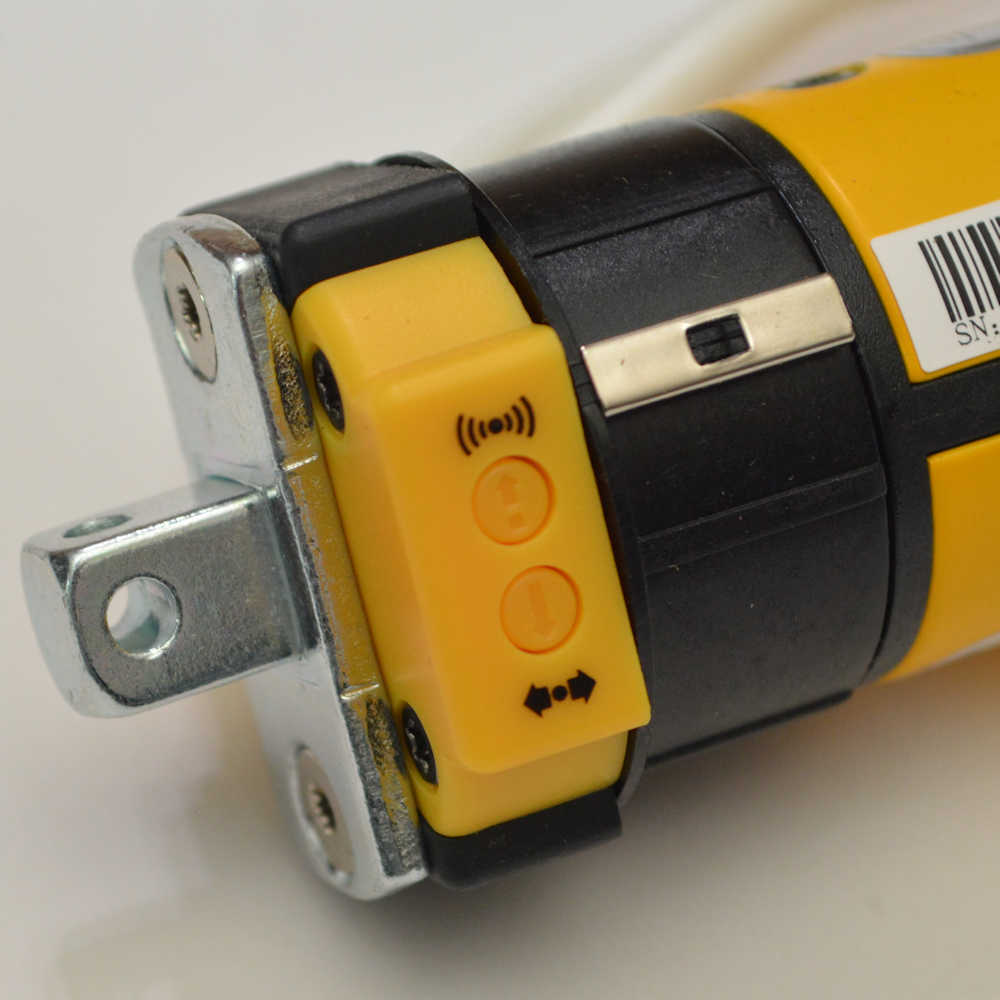

        -  Attached 10mm Stud Bracket Adapter (Removable)

* The stated torque capabilities are using the 10mm stud, heavy duty idler and brackets. The use of the recommended component list for 2" tubes below should be derated to 4Nm (35.4lb on 2" tube). This is more than enough for a 120"W x 96"H shade using average weight material (12oz/sqyd) and 120" W x 168"H using light weight material (6oz/sqyd). Neither of which are even close to the true lifting capacity of this motor. The limitations are due to deflection of the 2" tube under the associated material weights.

Recommended Tip to Tip Deductions
   •  2" Tube Using Components Listed Below: 1 3/8"
   •  2.5" Tube Using Components Listed Below (Equal Light Gaps): 2 3/4"
   •  2.5" Tube Using Components Listed Below (Max Compression on Idler): 2 1/8" (1.375" Motor Side, 0.75" Idler Side)

Tip to Tip is defined as the space that entire assembly (tubes, brackets, drives, idler etc.) needs to fit. This type of measurement is most often used for shades mounted within framed constraints.

Minimum Shade Width (Using Components Listed Below)
   •  2" Tube, Tip to Tip including Brackets: 21.75"
   •  2.5" Tube, Tip to Tip including Brackets: 26.25"

Maximum Shade Width
   •  2" Tube, Tip to Tip including Brackets: 120"
   •  2.5" Tube, Tip to Tip including Brackets: 144"

Maximum Width limitation is due to tube deflection not lifting capacity.

Recommended Component List for use with 2" Rollease Tubes
(Not a complete list of all possible options)

   •  Crown and Drive (2" Tube Adapter): AM35-2-CD
   •  Bracket Adapter (Motor Head): Somfy 9012258
   •  Brackets: Rollease RB360, RB380, RB390
   •  2" Tube: Rollease RTEA5T
   •  Idler/End Plug: Rollease REP53 & RA2 (Both Required)

Recommended Component List for use with 2.5" Rollease Tubes
(Not a complete list of all possible options)

   •  Crown Adapter (35mm to 45mm): AM3545-C-ADA
   •  Crown Adapter (2.5" Tube): AM45-25-C
   •  Drive Adapter (2.5" Tube): AM3545-25-D
   •  Motor Bracket: Somfy 9410665
   •  Idler Bracket: Somfy 9410635
   •  Idler/End Plug: Somfy 9420800
   •  Idler/End Plug Adapter (2.5" Tube): Rollease RTA6U50
   •  2.5" Tube: Rollease RTEA6T

A-OK AM35-6/28-MEL Shade Motor Programming Instructions

Rollease Shade Tube Specifications

Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
