Description

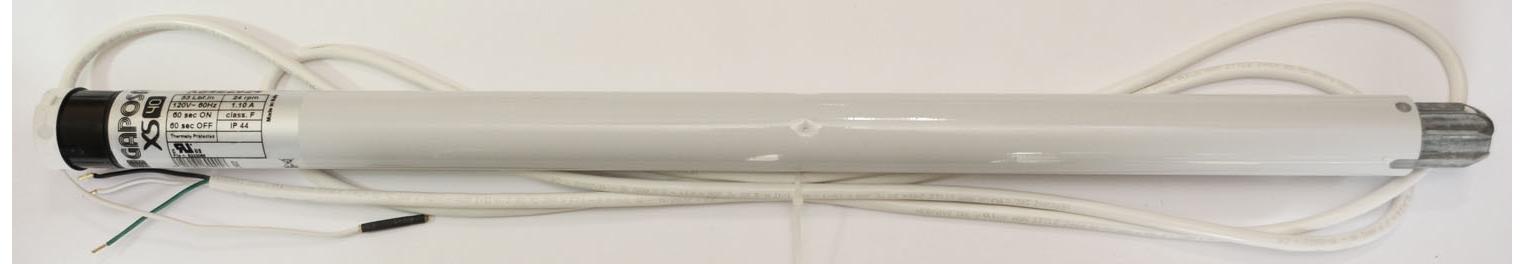

The Gaposa XS30 series Super Sileos XS40-AC6024 is a quiet 120VAC roller shade motor. Gaposa XS Super Sileos motors are engineered with superior noise reduction technology and are barely heard. This compact, low profile shade motor can be used in 2" Rollease tubes and with its 6Nm torque can be used in shades as wide as 120". Choose this motor where small and large shades need to be lifted and where operation must be at their quietest levels.
Radio Frequency: This Gaposa shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. The motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up, Full Down and to a customer specified preferred position. No need to hold the button down and wait for the shade to reach the desired position.
Multiple Controls: The shade motor is controlled via Gaposa's advanced RF technology which offers the user simple individual or group control. Each motor can be controlled by more than one remote control. You can use one remote for local room based control and another remote for whole home control. Need more advanced controls? No problem, Gaposa has the RollApp Android/iOS mobile device interface that provides manual and scheduled timer based control. Need integration with your home automation system? No Problem, Gaposa has the LinkIt RS232 control and QCTZ36SDU Dry Contact interface for integration with Home Automation systems.
Soft Stop: The shade motor reduces speed as it nears a programmed stopping point to softly stop your shade.
Retrofit Considerations
This motor can be retrofitted to existing Rollease Chain/Clutch driven shades. By default the this motors is compatible with Rollease R-Series components and typically does not take any more space than the chain/clutch mechanism.
IF you have a Rollease R16 Clutch/chain driven roller shade on a 2" Rollease Shade Tube, you will need the motor components plus new brackets. Simply pull out the clutch, insert the motor and replace your Rollease R Series RB5xx Brackets with the Rollease R Series RB3xx Brackets.
Gaposa XS40-AC6024 120VAC Roller Shade Motor Specifications
• XS40 Series - Super Sileos - Ultra Quiet
• RF Control Technology: 434.15MHz
• Nominal Motor Size: 40mm
• Operating Voltage 120VAC
• Normal Current Draw: 1.1A
• Torque: 6.0Nm
• Lift Capacity - Not Including Tube Weight
- 2" Tube: 53.1lb
• Motor Speed: 24 RPM (Not Adjustable)
• Ultra Quiet Operation: <40 dBa (Not a Specification)
• Soft Stop: Speed is reduced when the shade comes to a stop
• 3 Programmable Stops (Open/Closed/Intermediate)

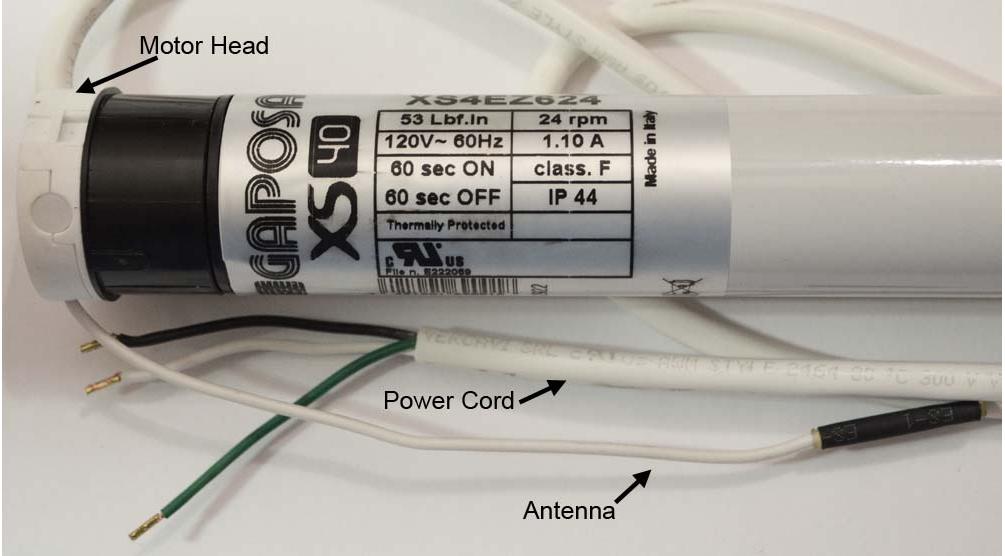

• Non-removable Power Cord - 8' Foot Open End (No Plug)
• Attached Antenna: 7"
• Requirements for use - Not Included
- Motor Crown and Drive (Tube Adapter)
- Gaposa RF Remote
- Bracket Adapter
- 2" Rollease Shade Tube
- 2" Idler/End Plug
- Rollease RB3xx Series Shade Brackets
• Dimensions
- Overall: 25" L x 1.47" Dia.
• Weight: App. 3.6lb
• Warranty: 5 years
• Made in Italy
• Includes:
- Motor
• Gaposa Part#: XS4EZ624
• AVO Part#: XS40-AC6024
Recommended Component List for use with 2" Rollease Tubes
(Not a complete list of all possible options)

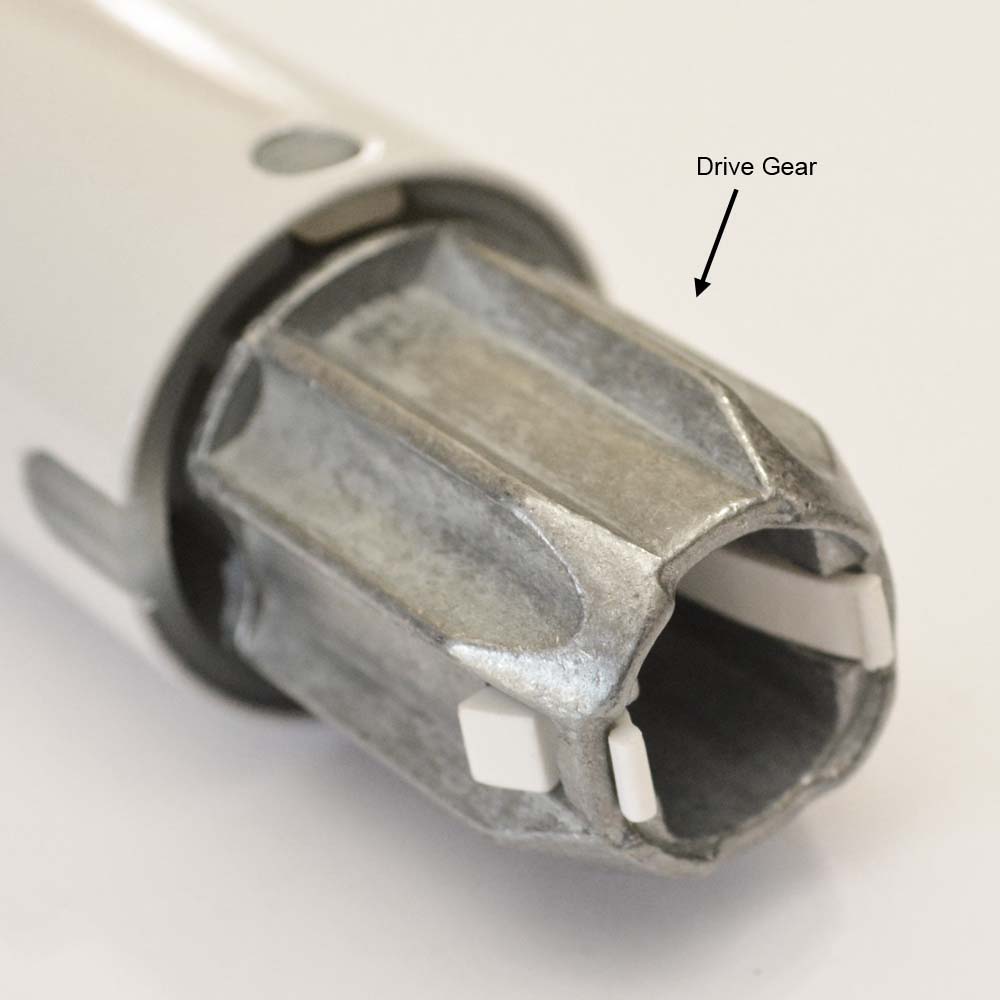

• Crown and Drive (2" Tube Adapter): Gaposa XS40CD200
• Bracket Adapter (Motor Head): Somfy 9012258

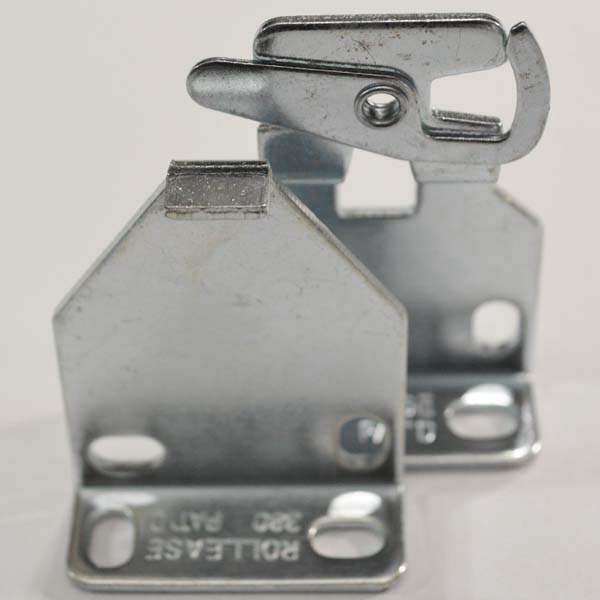

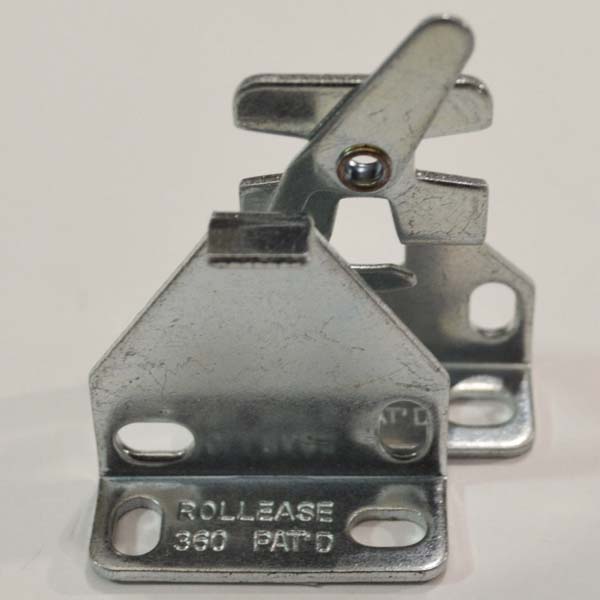

• Brackets: Rollease RB360, RB380, RB390
• 2" Tube: Rollease RTEA5T
• Idler/End Plug: Rollease REP53 & RA2 (Both Required)
Roller Shade Tubes and Hem Bars are Sold Separately
• Rollease Roller Shade Tubes - Product Link
• Rollease Internal Bar and External Hem Bars - Product Link
Recommended Tip to Tip Deductions
1 1/4" - Using 2" Rollease Tube & Rollease R-Series Components
Tip to Tip Measurement: This is the measurement used for shades mounted within a window frame or within framed constraints and effectively the measurement from the outside edge of the brackets in a shade system.
Minimum Shade Width
27 3/8" Tip to Tip - Using 2" Rollease Tube & Rollease R-Series Components
Maximum Shade Width
120" Tip to Tip - Using 2" Rollease Tube & Rollease R-Series Components
Maximum Width limitations are guidelines to minimize tube deflection and are not always a reflection of lifting capacity. The shade fabricator calculator below should be used to determine a system's limitations.
Rollease Shade Tube Specifications
Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.
Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
Related Downloads
Gaposa XS40-AC6024 Shade Motor Specification Sheet
Gaposa XS40-AC6024 Shade Motor Programming Instructions
Gaposa XS40-AC6024 Shade Motor Installation Instructions
Gaposa Roller Shade Motor and Related Videos
How to program a Gaposa roller shade motor
Compare how roller shade motors sound
Features
- 6Nm, 53.1lb on 2" Tube
