Description
Basic but detailed product information and ordering instructions are provided. It is however difficult to put every aspect of roller shade ordering within a single product page. We encourage our customers to review the information contained in the following page link for more more details and technical information.
Roller Shade Technical Information

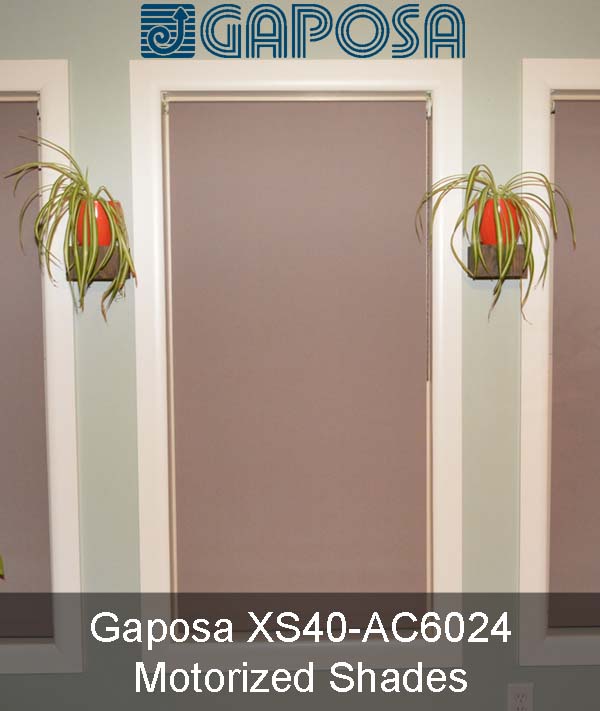

GapoSA Super Sileo XS40-AC6024 120VAC RF Motorized Roller Shades Include
Hemmed shade mounted on tube with supporting components as outline below and Free Standard Ground Shipping to the 48 contiguous states.
Motor
• Gaposa XS40-AC6024 RF Shade Motor w/adapters, not installed in tube *
* Motors are not installed in the shade tube to protect the motor during transit. The motors will ship separately with all necessary adapters installed and ready for easy installation. No additional hardware is required for the motor installation and they simply slide into the tubes. Please refer to the shade installation instructions below with the downloads.
Tubes Sizes
• Shades up to 120" width use 2" Rollease Shade Tubes.
Idler / End Plug
• 2" Tube Shades - Rollease REP53/RA2 Idler/End Plug installed.
Brackets
• Rollease RB360 Brackets are used on shades without Fascia.
We also sell components. The components used in our shades can be viewed in detail on their respective product pages.
Motor Information

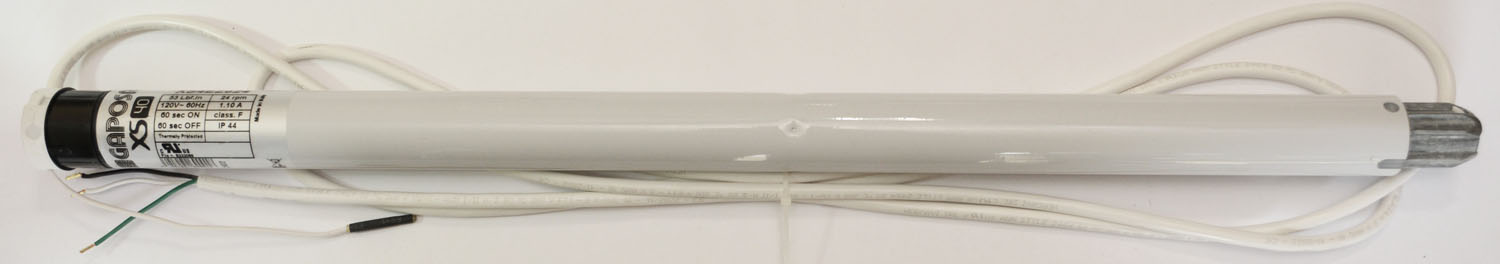

The Gaposa XS30 series Super Sileos XS40-AC6024 is a quiet 120VAC roller shade motor. Gaposa XS Super Sileos motors are engineered with superior noise reduction technology and are barely heard. This compact, low profile shade motor can be used in 2" Rollease tubes and with its 6Nm torque can be used in shades as wide as 120". Choose this motor where small and large shades need to be lifted and where operation must be at their quietest levels.
Radio Frequency: This Gaposa shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. The motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up, Full Down and to a customer specified preferred position. No need to hold the button down and wait for the shade to reach the desired position.
Multiple Controls: The shade motor is controlled via Gaposa's advanced RF technology which offers the user simple individual or group control. Each motor can be controlled by more than one remote control. You can use one remote for local room based control and another remote for whole home control. Need more advanced controls? No problem, Gaposa has the RollApp Android/iOS mobile device interface that provides manual and scheduled timer based control. Need integration with your home automation system? No Problem, Gaposa has the LinkIt RS232 control and QCTZ36SDU Dry Contact interface for integration with Home Automation systems.
Soft Stop: The shade motor reduces speed as it nears a programmed stopping point to softly stop your shade.
Gaposa XS40-AC6024 120VAC Roller Shade Motor Specifications
• XS40 Series - Super Sileos - Ultra Quiet
• RF Control Technology: 434.15MHz
• Nominal Motor Size: 40mm
• Operating Voltage 120VAC
• Normal Current Draw: 1.1A
• Torque: 6.0Nm
• Lift Capacity - Not Including Tube Weight
- 2" Tube: 53.1lb
• Motor Speed: 24 RPM (Not Adjustable)
• Ultra Quiet Operation: <40 dBa (Not a Specification)
• Soft Stop: Speed is reduced when the shade comes to a stop
• 3 Programmable Stops (Open/Closed/Intermediate)
• Non-removable Power Cord - 8' Foot Open End (No Plug)
• Attached Antenna: 7"
• Requirements for use - Not Included
- Gaposa RF Remote
• Dimensions
- Overall: 25" L x 1.47" Dia.
• Weight: App. 3.6lb
• Warranty: 5 years
• Made in Italy
• Gaposa Part#: XS4EZ624
• AVO Part#: XS40-AC6024
Tip to Tip Deductions
1 1/4" - Using 2" Rollease Tube & Rollease R-Series Components
Tip to Tip Measurement: This is the measurement used for shades mounted within a window frame or within framed constraints and effectively the measurement from the outside edge of the brackets in a shade system.
Minimum Shade Width
27 3/8" Tip to Tip - Using 2" Rollease Tube & Rollease R-Series Components
Maximum Shade Width
120" Tip to Tip - Using 2" Rollease Tube & Rollease R-Series Components
Maximum Width limitations are guidelines to minimize tube deflection and are not always a reflection of lifting capacity. The combination of shade size, material and motor are analyzed to provide the flattest shade possible. We will sometimes deviate slightly from the somewhat generically stated maximum width limitations.
Document Downloads
Gaposa XS40-AC6024 Shade Motor Specification Sheet
Gaposa XS40-AC6024 Shade Motor Programming Instructions
Gaposa XS40-AC6024 Shade Motor Installation Instructions
Shade Coverings - Fascia, Valances, Cornices
Due to the possible options Fascia, Valances and Cornices are offered separately from the shades and can be purchased in our Shade Coverings page.
A couple examples of the our offerings are listed below.
Classic IB Valance
The Classic IB shade valance provides a simple clean covering for your window treatment needs. This valance is offered in a large variety of materials so it can blend in or provide a nice textural contrast. This valance is constructed of shade material and has a hemmed pocket with an aluminum hem bar. One of the nice features of this valance is its soft nature. It can be easily moved out of the way to gain access to the window treatment behind it. The Classic IB Valance is available with a height of 5" to 8" and is offered with two different header options to suit your mounting needs. The 1" D x 3/4" H header can be used where you have adequate depth to mount the valance in front of the shade or you can choose 3 1/2"D x 3/4" H header that you would mount in the window frame before mounting the shade and then mount the shade to the header board. The valance is mounted to the header board using staples so it can be dismantled, modified and reassembled by the users to further suit their needs.
Fascia
The Rollease RFP Series aluminum fascia panel simply snaps into the fascia panel brackets for easy access to the roller shade components. The RFP series fascia panel can be used for inside or outside frame mount applications. This fascia panel covers the front and bottom to hide the shade assembly. The back and top of the fascia are left open. The use of this fascia panel forces the shade to use regular roll. Regular roll puts the shade material closest to the window. We offer 3" and 4" Fascia panels which are compatible with our Chain & Clutch Shades, Gaposa Motorized Shades and Somfy Motorized Shades. Some shades will not be compatible with the 3" Fascia and will require the 4" Fascia.
Lead Time
The lead time for fabrication of shades is typically 7 business days but please check the lead time indicated near the "Add to Cart" button. The lead time for shades varies throughout the year and it will be listed more accurately there. The product ships directly from our shade manufacturer to you.
Return Policy
Shades are built to customer specific requirements and as such are special order items. We can not accept returns for custom built or special order items. This does not mean we are not able to help customers post purchase. Shades ordered too wide may be returned and cut down. Shades ordered too small can not be fixed. Some components of the order might also be returnable. Please contact us if you have questions about our return policy.
Warranty
Shade Fabrication: Limited Lifetime non-transferable warranty. Covers workmanship: IE Hemming, Attachment of material to the tube etc.
Shade Material: Phifer Materials carry a 5 or 10 year limited warranty against defects depending on the particular fabric. Fading and changes in color are not warranted. Interior shade control fabrics must be used in interior applications.
Rollease Components: Rollease provides a Limited Lifetime Warranty on their Clutch mechanisms and a 10 Year limited warranty on other components.
Gaposa Li-ion Motors and Controls carry a limited 3 Year Warranty against defects and failure when used in interior shading applications. Products must comply to technical design and usage standards.
Gaposa AC and DC Motors carry a limited 5 Year Warranty against defects and failure when used in interior shading applications. Products must comply to technical design and usage standards.
All warranties stated herein are limited abbreviated warranties and consumers should check with component manufacturers for complete warranty terms. As is the case with all warranties. AV Outlet, SOMFY, Phifer, Rollease etc shall not be liable for any injury, loss or damage, direct or consequential, arising out of, or the inability to use the equipment. Before using, the buyer and/or the ultimate user shall determine the suitability of the product for its intended use and the user assumes all risks and liability in connection therewith. The consumer is responsible for returning the product for warranty servicing.
Our Main Custom Roller Shade Index Page
Features
Shade Drive:
- Gaposa XS40-AC6024
