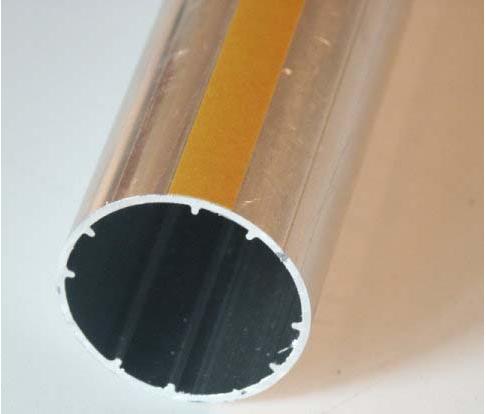

Rollease RTEA5T14-2 Roller Shade Tubes w/ Tape - 2" (50mm) x 2 Foot

Rollease aluminum roller shade tubes are used for a variety of shade systems including manual clutch/chain driven, spring driven, roman, motorized etc. The Rollease tubes are compatible with many shade component manufacturers like Somfy, ZMC, Vertilux and many more. Each tube is supplied with pre-applied double stick shade tape for easy shade fabric attachment.

Rollease 2" (50mm) Roller Shade Tube Specifications - 2 Foot:
   •  Nominal Size: 2" (50mm)
   •  Length: 2 Foot - (+/-0.25")
   •  Material: Aluminum
   •  4 Sets of 2 Ribs Patterns (8 ribs total)
   •  OD: App. 2" (50.8mm)
   •  ID: App. 1.875" (47.6mm) - Not Including Internal Ribs
   •  Wall Thickness: App. 0.0625"
   •  Weight: 0.5 lb per foot
   •  Includes: Applied Double Sided Tape
   •  Part #: RTEA5T14-2
   •  Stocked in 16 Foot Lengths

Optional: FREE custom cut lengths cut to an accuracy of 1/16" +/- 1/32.

Known Compatible Shade Mechanisms
Rollease Clutches: SL15H01*, SL20H53*, SL30H53*, R16C53*, R24C53*
Somfy Motors: ST30*, ST40*

* Adapters may be required.

Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection based on tube size, material weight, width and height plus much more. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

Roller Shade Component Dimensions

Rollease Clutch and Chain Shade Fabrication

As of 11/25/20 we have decided to use both Rollease and ZMC as suppliers for our extruded aluminum shade tubes and hem bars. The decision was made to improve our ability to stock the product and is expected to be a seamless change to our customers. The ZMC equivalent part number for the 2" tube is RS-T57.
