1224VD-SPLK-1, Low Voltage Power Wire Splice Kit - 26 to 22 AWG

The AVO 1224VD-SPLK-1 is a butt splice kit used to splice low voltage power supply wires to single Rollease DCRF, Somfy LT30, Somfy R28 & RU28 and Somfy ST30 shade motor power leads. The splice kit accepts wire gauges 24 to 20 AWG wires (the shade motor power leads are 24 AWG). The splice kit provides an easy crimp method to connect the wires together and does not require soldering. The included white heat shrink tubing provides a color matched cover for the spliced connection so that it provides the best possible aesthetic transition from the power supply wires to the motor lead wires. This kit can also be used to splice in extra wire for extending battery wand lead lengths.

AVO 1224VD-SPLK-1 Splice Kit Specifications:

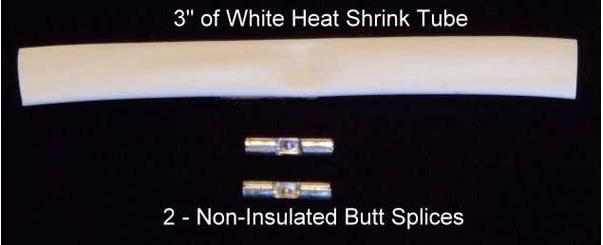

   •  Includes: 2 Non Insulated Butt Splices
   •  Includes: 3" of White Heat Shrink
   •  Compatible with Wire Gauges: 24 to 20 AWG
   •  Connects and extends shade motor power supply leads
   •  Use with any low voltage wiring

12VD150W Power Supply Splice Instructions

24VD075W Power Supply Splice Instructions
