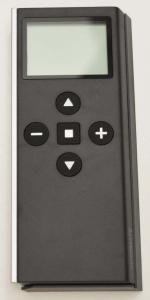

Rollease Automate ARC Push 15 Channel Remote Control - Black

The Rollease AUTOMATE Push 15 remote controls feature a contemporary design with magnetic wall base. With 15 channels of control, the Push 15 remotes are perfect for individual room and whole home shade control. All Rollease remote controls allow you to program the limits of the shade, set a favorite shade position and adjust the speed of the motor.

The motors store the limits set by the remote controls and memory is not lost when power is disconnected. With the momentary press of a button you can command the shade to go to the Full UP, Full Down or to a customer specified Favorite position. No need to hold the button down and wait for the shade to reach the desired position. Each motor can be controlled by up to 10 remote controls or channels on the same remote control. You can use channels of controls as individual or group motor channels. All shades on the same group channel will operate simultaneously.

Zero Channel - The included "0" channel essentially makes this a 16 channel remote control. The "0" channel however is not programmable. The "0" channel provides to ability to control all channels of the remote control at the same time.

Group Control Feature - Not only does the Push 15 have 15 channels that can be used for individual or group control you also get 5 separate group channels. The Group Channels are labelled A thru E and are programmed by you to the grouping that you need.

Hide Feature - The hide feature of this remote control allows you to eliminate confusion and excessive scrolling by allowing you to hide unused channels and or groups. The hide feature cannot hide a single channel or group in the middle of a range. For instance: You cannot hide channels 5 thru 10 and use 1 thru 4, 11 thru 15. You can however hide all channels or groups after a specific channel or group. For instance you can make this a single channel by hiding channel 2. By selecting channel 2 to be hidden you are also selecting 2 thru 15.

Lock Feature - The lock feature prevents unwanted changes to already programmed shades.

Leveling Feature - The Leveling Control allows precise simultaneous position control of multiple shades on the same remote control channel ensuring perfect alignment.

Rollease Automate Push 15 Remote Control Specifications:
   •  Channels of Control: 15
   •  Color: Black w/Silver accents)
   •  Additional Channel "0" Controls All Channels Simultaneously
   •  Remove and Hide Unused Channels
   •  Power Source: CR2450 Lithium Coin Cell Battery
   •  Radio Frequency RF Control - 433.92MHz
   •  Lock Function Prevents Programming Changes
   •  Leveling Function to stop shades at the same height
   •  Controllable Positions: Open, Closed, Favorite and Leveling
   •  Programs and Controls Rollease Automate ARC (RF) Motors

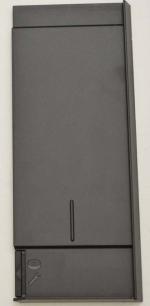

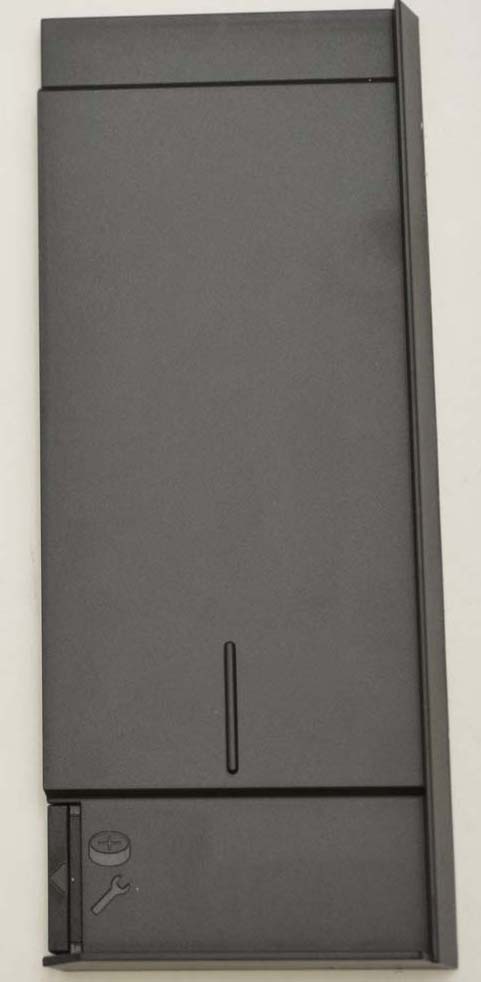

   •  Slim Wall Mount Magnetic Base
   •  Typical Control Range: up to100' *
   •  Dimensions - Not Including Wall Mount Base
        -  5.12" H x 2.1" W x 0.42" D
   •  Weight: App. 0.375lb
   •  MFG Part Numbers
        -  Black - MT02-0101-050008
   •  Included Items:
        -  Remote Control - Push 15
        -  Wall Mount Base with Hardware
        -  CR2450 Battery

* Control Range: Range depends on walls, construction type and RF noise in the area.

Rollease Push 15 Remote Control Instructions - PDF Document

Rollease Push 15 Remote Control Brochure - PDF
