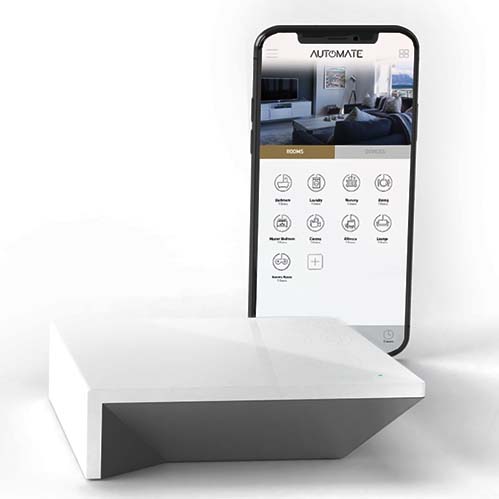

Rollease Pulse 2 Mobile Device Interface and App - MT02-0401-067001

Rollease Automate Pulse 2
Mobile Device Hub

Take your Rollease Automate experience to the next level by integrating Automate motorized shades into industry-leading smart home control systems. Automate’s rich integration supports discrete shade control and scene activation and features a two-way communication system offering real time shade position and battery level status.

Whether you are at home or away, the Rollease Automate Pulse 2 allows you to accurately control your shades via the animated interface on your smart phone. Bi-Directional communication allows you to visualize the exact positioning of your internal and external shades while also allowing you to check the battery health of your wirefree motors. Getting started is simple via the easy to follow setup wizard. Create rooms, set timers & scenes for optimum comfort and allow Automate PULSE 2 to take control. Installers can also take advantage of the convenient remote free setup to efficiently set motor limits with their smart phone.

Automate Pulse 2 Mobile Device Hub Features:

Setup Wizard
The step by step wizard guides you through the installation and makes set-up a plug and play solution

WIFI or Ethernet Connection
Built-in Wi-Fi or the option of Ethernet connection, ensures the Pulse 2 can connect to any home network and provide swift, wireless control of Automate shades.

433MHZ Bi-Directional ARC
ARC "Automate Radio Communication" protocol allows for information to be communicated in both directions, from the control device to the motor and back again. This allows for live shade positioning and the battery health displays on your smart phone.

Remote Access
Easily monitor and control your shades from anywhere in the world via your smart phone. No Complex port forwarding or router configuration required.

Timers
Set and manage up to 15 timers to enable easy activation of preferred settings at various time of day.

Scenes
Set and manage up to 15 scenes.

Manage Rooms
Group shades into rooms. Configure and operate a group of shades that belong to a room.

Manage Locations
Manage multiple Automate Pulse hubs in various locations. Easily switch between office, home, vacation home etc. all using the same account. The Pulse App allows up to 5 different locations per account with up to 5 hubs per location.

Remote Free Setup
Thanks to the ARC technology there is no need to use a hand held remote. The technology allows for fast and easy configuration of the motors via the App. You can easily set limits and adjust the motors using the App.

Sunrise & Sunset Detection
Utilising time zone and location, the Pulse 2 can automatically raise or lower Automate shades according to the position of the sun.

Rollease Automate Pulse 2 MT02-0401-067001 Mobile Application Hub Specifications:
   •  Accounts per Hub: 1 Admin, 4 Guest
   •  Devices per Hub: 20
   •  Hubs per Location: 5
   •  Rooms per Location: 15
   •  Scenes per Location: 15
   •  Timers per Location: 15
   •  Locations per Account: 5
   •  Desktop or Wall Mount via Adhesive
   •  Power Requirement: 5VDC 1A, via USB
   •  Radio Frequency RF Control - 433.92MHz
   •  WiFi Network: 802.11b/g/n 2.4Ghz
   •  Programs and Controls Rollease Automate ARC Motors
   •  Compatible with all Rollease Automate ARC Motors
   •  Provides Worldwide Control with Mobile Phone Service
   •  Compatible Third Party Control:
        -  Apple HomeKit
        -  Amazon Alexa
        -  Google Assistant
        -  IFTTT
        -  SmartThings
        -  Control4, Elan, Homeseer, Crestron AMX, Savant
   •  Typical Control Range (RF): up to100' *
   •  Dimensions
        -  4.41" L x 4.41"" W x 1.18" H
   •  Weight: App. 0.45lb
   •  Included Items:
        -  Pulse 2 HUB - MT02-0401-067001
        -  Power Supply w/ USB Cable
        -  Ethernet RJ45 Cable

* RF Control Range: Range depends on walls, construction type and RF noise in the area. We've tested the range to possibly exceed 80 feet through several walls and from a different floor in a house. 80 Feet is the limit of the distance we could test.
