Description

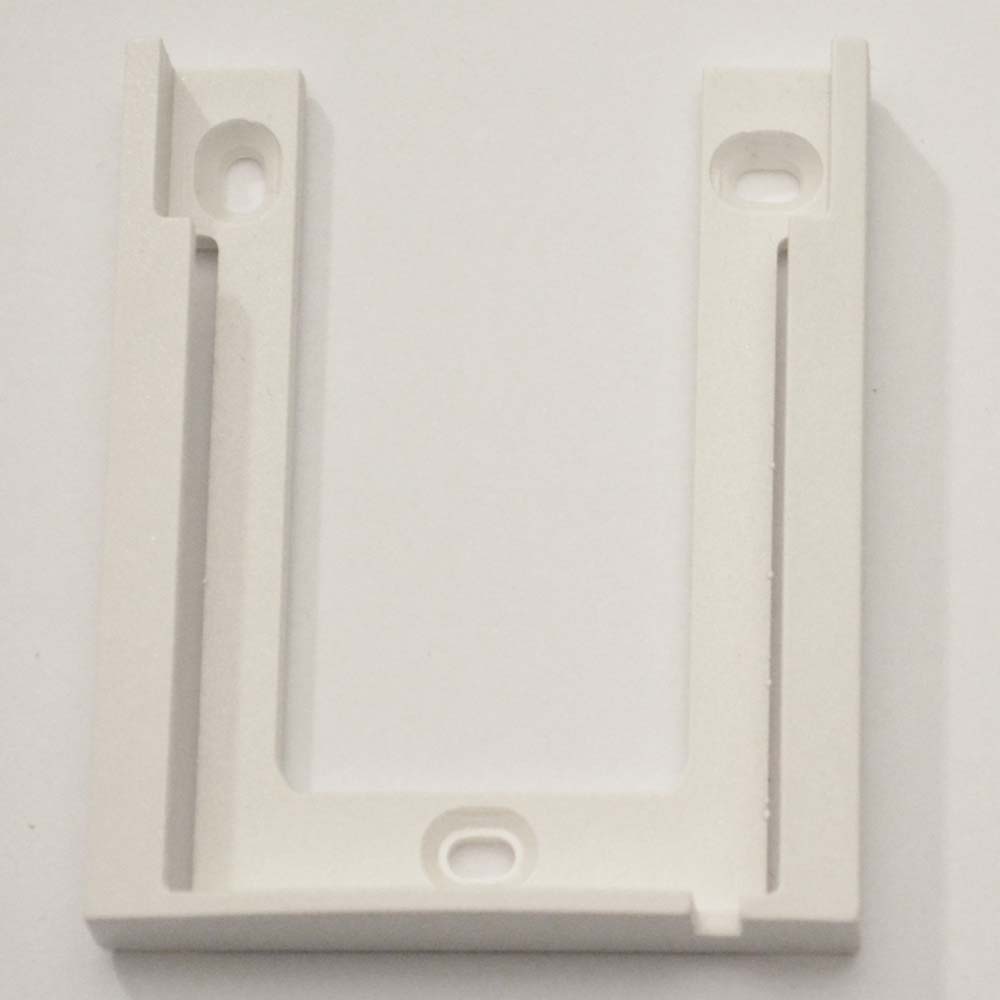

The Gaposa QCZTAB4 is a four channel Euro style surface mount wall remote control. Mount it anywhere, no junction box required. This wall remote control also double as a hand held remote control thanks to the innovative wall mount base. All Gaposa remote controls allow you to program the limits of the shade, set a favorite shade position and control the shade.
The motors store the limits set by the remote controls and memory is not lost when power is disconnected. With the momentary press of a button you can command the shade to go to the Full UP, Full Down or to a customer specified Favorite position. No need to hold the button down and wait for the shade to reach the desired position. Each motor can be controlled by an unlimited number of remote controls or channels. You can use channels of control for individual motorized shades or groups of motorized shades. All shades using the same channel will operate simultaneously.
The channel select button allows you to select a single channel or all four channels for group conrol.
The QCZTAB4 additionally features optional colored frames to match any decor.
Gaposa QCZTAB4 Wall Remote Control Specifications:
• Channels of Control: 4
• Color: White on White
• Surface mount
• Removable for use a Hand Held Remote
• LED Feedback
• Up, Stop, Down & Channel Select Buttons
• Radio Frequency RF Control - 434.15MHz
• Programs and Controls Gaposa RF Motors
• Typical Control Range: up to100' *
• Power Source: CR2430 Lithium Coin Cell Battery
• Dimensions - Including Wall Mount Base
- 3.15" H x 3.15" W x 0.6" D
• Weight: App. 0.125lb
• Warranty: 3 Years
• Made in Italy
• Included Items:
- Remote Control
- Wall Mount Base
- CR2430 Battery
* Control Range: Range depends on walls, construction type and RF noise in the area.
