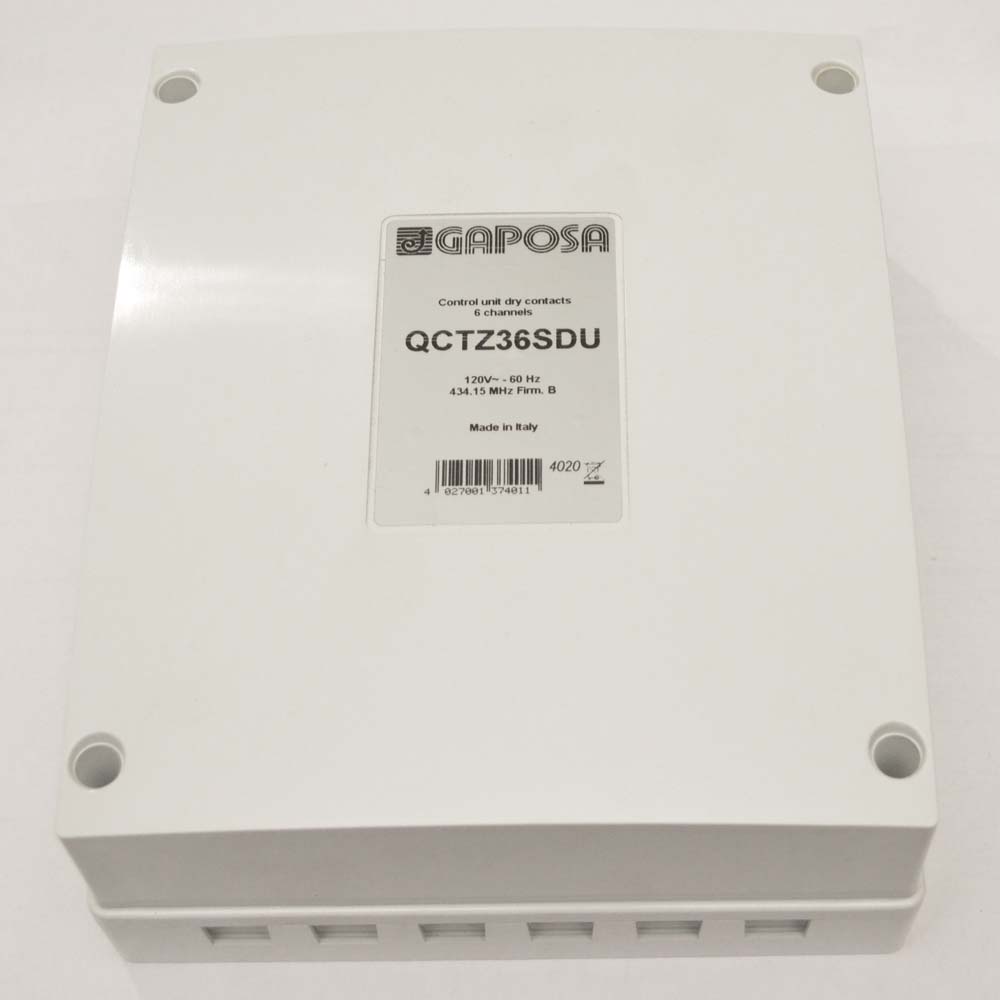

Gaposa QCTZ36SDU Dry Contact Home Automation Interface/Hub - 6 Channel

The Gaposa QCTZ36SDU is 6 channel dry contact interface that provides universal control of Gaposa RF motors. Just connect your home automation system to the individual Up, Down and Stop inputs of each channel. All Gaposa remote controls allow you to program the limits of the shade, set a favorite shade position and control the shade.

The motors store the limits set by the remote controls and memory is not lost when power is disconnected. With the momentary press of a button you can command the shade to go to the Full UP, Full Down or to a customer specified Favorite position. No need to hold the button down and wait for the shade to reach the desired position. Each motor can be controlled by an unlimited number of remote controls or channels. You can use channels of control for individual motorized shades or groups of motorized shades. All shades using the same channel will operate simultaneously.

Gaposa QCTZ36SDU Dry Contact Interface Specifications:
   •  Channels of Control: 6
   •  Color: White
   •  LED Feedback (Internal)
   •  Radio Frequency RF Control - 434.15MHz
   •  Programs and Controls Gaposa RF Motors via Internal Buttons

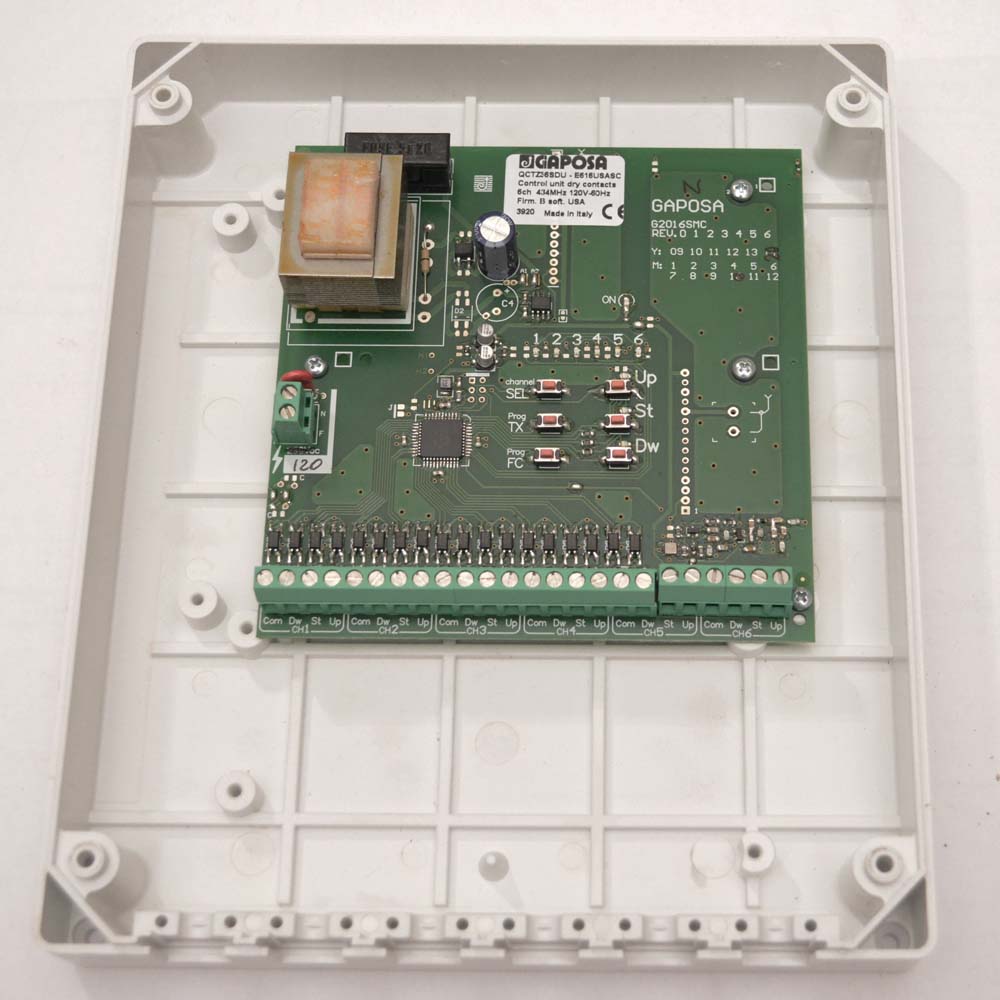

   •  Controls Gaposa RF Motors via Dry Contacts

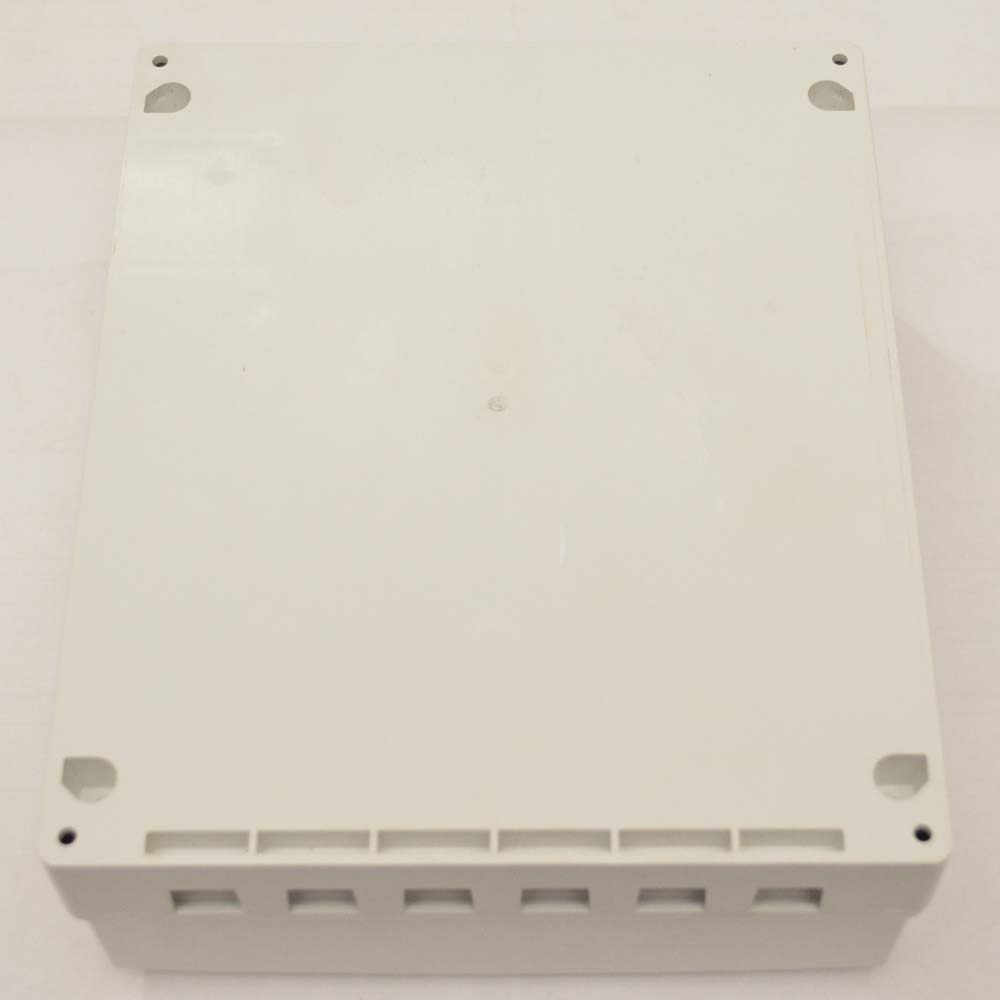

   •  Wall Mountable Enclosure with Provided Hardware
   •  Cable Ports w/Grommets and Clamps - Qty: 6
   •  Typical Control Range: up to100' *
   •  Power Source: 120VAC - Cord not Included
   •  Dimensions: 8.9375" H x 7.625" W x 3.375" D
   •  Weight: App. 2.1lb
   •  Warranty: 3 Years
   •  Made in Italy
   •  Included Items:
        -  Dry Contact Interface

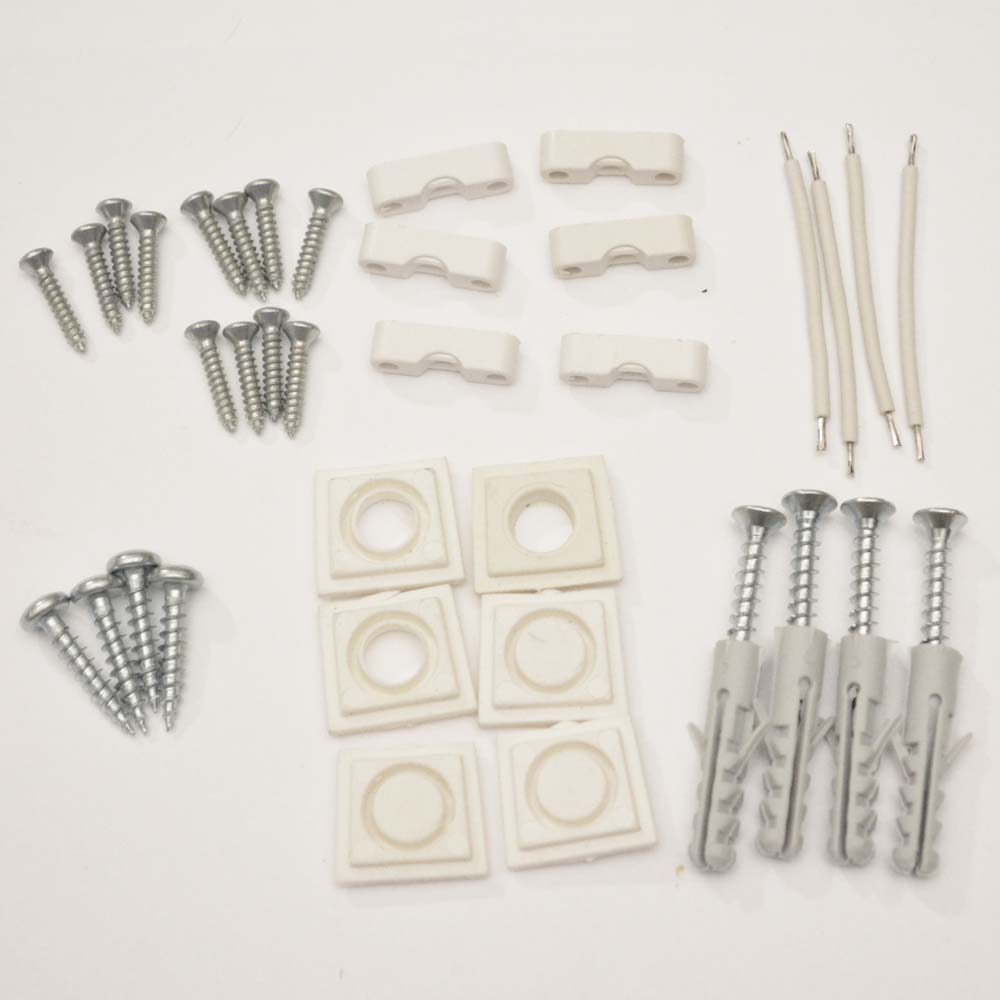

        -  Accessories

* Control Range: Range depends on walls, construction type and RF noise in the area.
