Gaposa QCTZ01Y RF Remote Control - 1 Channel - White

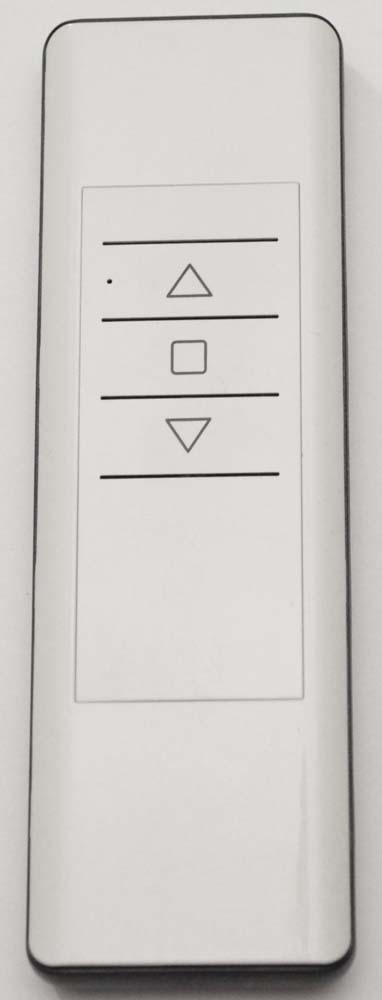

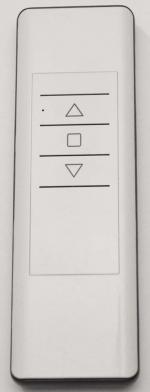

The Gaposa QCTZ01Y is a single channel hand held remote control with magnetic wall mount base. All Gaposa remote controls allow you to program the limits of the shade, set a favorite shade position and control the shade.

The motors store the limits set by the remote controls and memory is not lost when power is disconnected. With the momentary press of a button you can command the shade to go to the Full UP, Full Down or to a customer specified Favorite position. No need to hold the button down and wait for the shade to reach the desired position. Each motor can be controlled by an unlimited number of remote controls or channels. You can use channels of control for individual motorized shades or groups of motorized shades. All shades using the same channel will operate simultaneously.

Gaposa QCTZ01Y Hand Held Remote Control Specifications:
   •  Channels of Control: 1
   •  Color: White

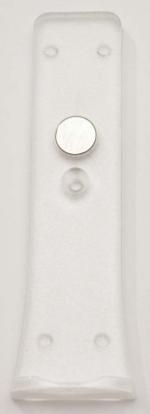

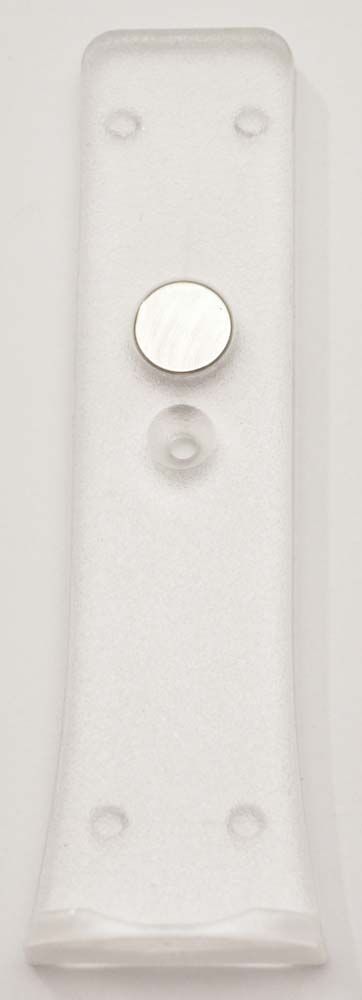

   •  Magnetic Wall Mount Base for Convenient Storage
   •  LED Feedback
   •  Up, Stop, & Down Buttons
   •  Radio Frequency RF Control - 434.15MHz
   •  Programs and Controls Gaposa RF Motors
   •  Typical Control Range: up to100' *
   •  Power Source: CR2032 Lithium Coin Cell Battery
   •  Dimensions - Not Including Wall Mount Base
        -  5.93" H x 1.86" W x 0.48" D
   •  Weight w/Base: App. 0.25lb
   •  Weight wo/Base: App. 0.15lb
   •  Warranty: 3 Years
   •  Made in Italy
   •  Included Items:
        -  Remote Control
        -  Wall Mount Base
        -  CR2032 Battery

* Control Range: Range depends on walls, construction type and RF noise in the area.
