Gaposa LinkIt RS232 Home Automation Interface/Hub - 16 Channel

Gaposa LinkIt 16
RS232 Automation Interface

Take your Gaposa motorized shade experience to the next level by integrating with the LinkIt home automation interface via RS232 communication. Allows for seamless control of your Gaposa RF motors with your existing home automation system.

Gaposa LinkIt-16 Home Automation Interface Specifications:
   •  RS232 control of Gaposa RF Motors
   •  16 Channels of Individual or Group Control
   •  Supports Open, Closed & Intermediate Positions and Tilting Mode
   •  LED Feedback
   •  Reset and Programming Buttons (Only used with Control4)

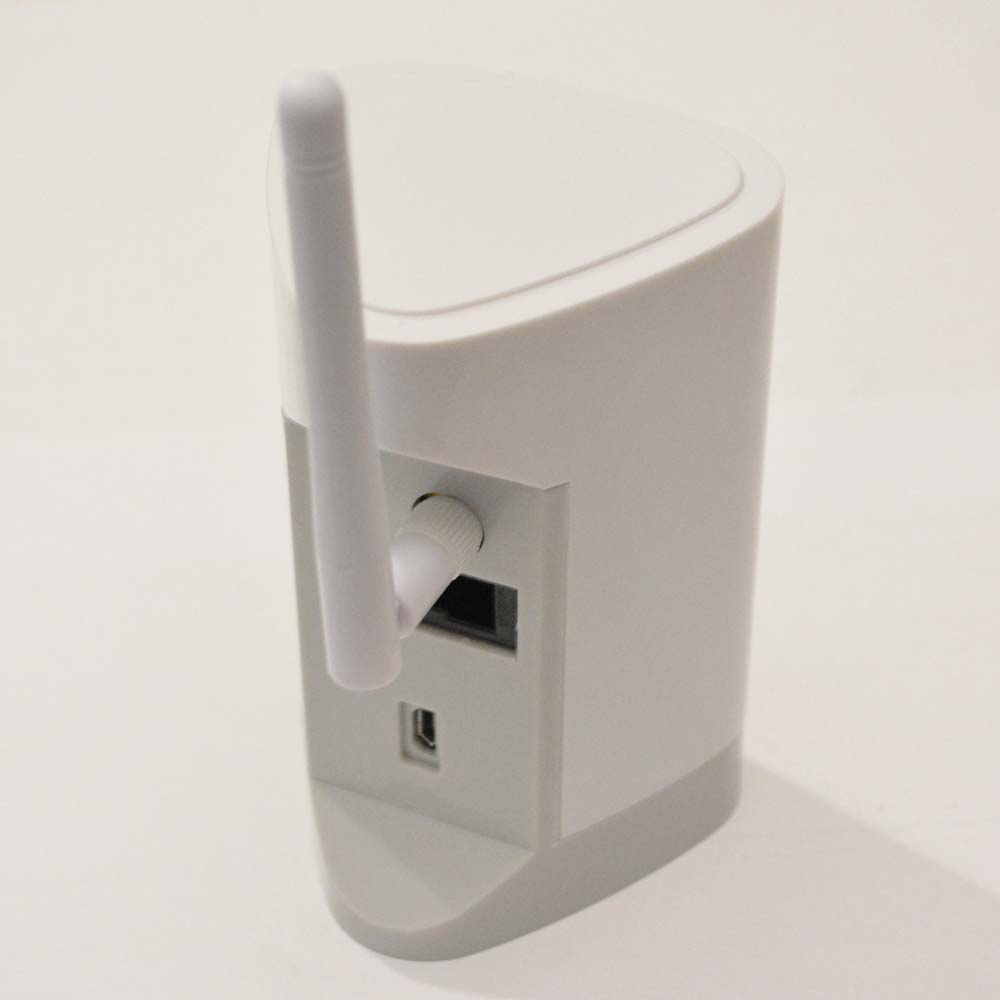

   •  External Antenna
   •  RS232 interface via RJ9
   •  Compatible with Control4 (Download Driver Below)
   •  Power Requirement: 5VDC 1A, via USB
   •  Radio Frequency RF Control - 434.15MHz
   •  Typical Control Range (RF): up to100' *
   •  Dimensions
        -  2.85" L x 2.74" W x 4.3" H
   •  Weight: App. 0.25lb Device Only
   •  Warranty: 3 Years

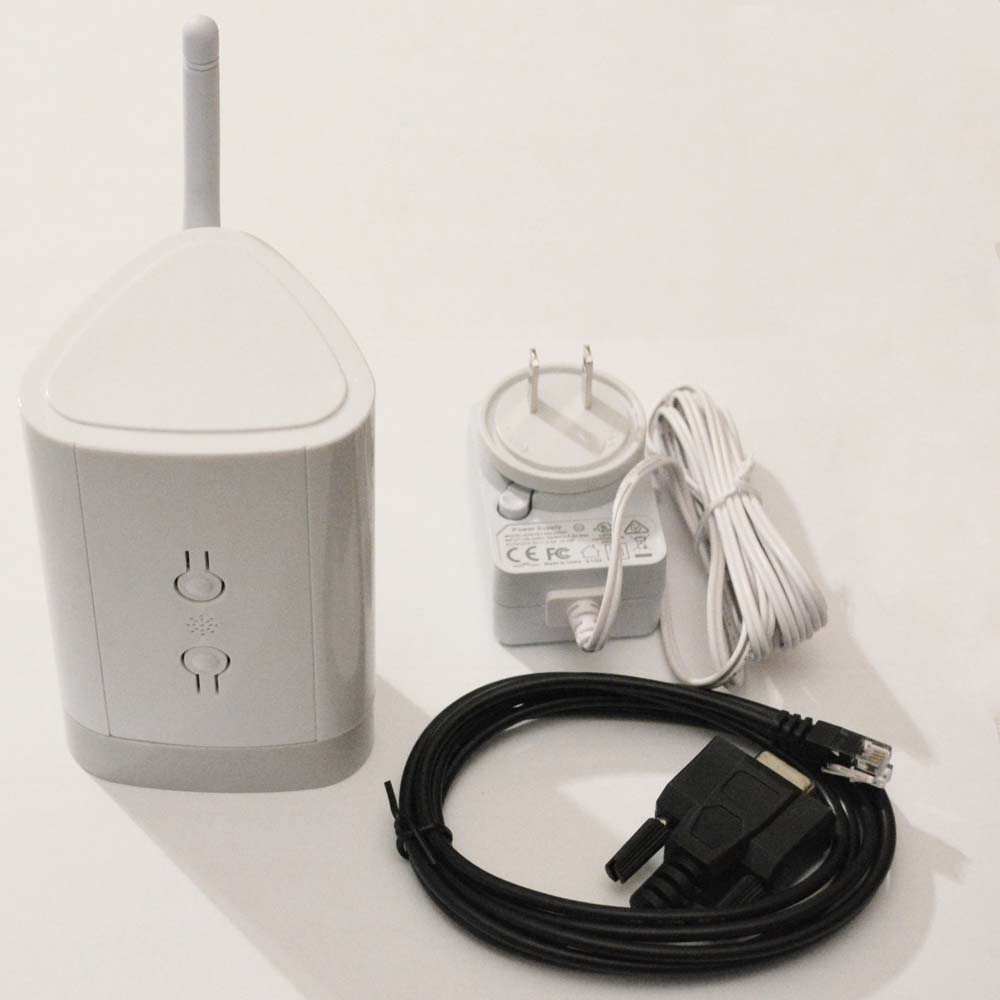

   •  Included Items:
        -  LinkIt Interface
        -  RJ9 to DB9 Cable
        -  Power Supply w/ USB Cable

* RF Control Range: Range depends on walls, construction type and RF noise in the area. We've tested the range to possibly exceed 80 feet through several walls and from a different floor in a house. 80 Feet is the limit of the distance we could test.

Related Downloads

Gaposa LinkIt RS232 Communication Instructions - PDF

Gaposa LinkIt Control4 Instructions - PDF

Gaposa LinkIt Control4 Driver - Driver zip File

Gaposa Roller Shade Motor and Related Videos

How to program a Gaposa roller shade motor
