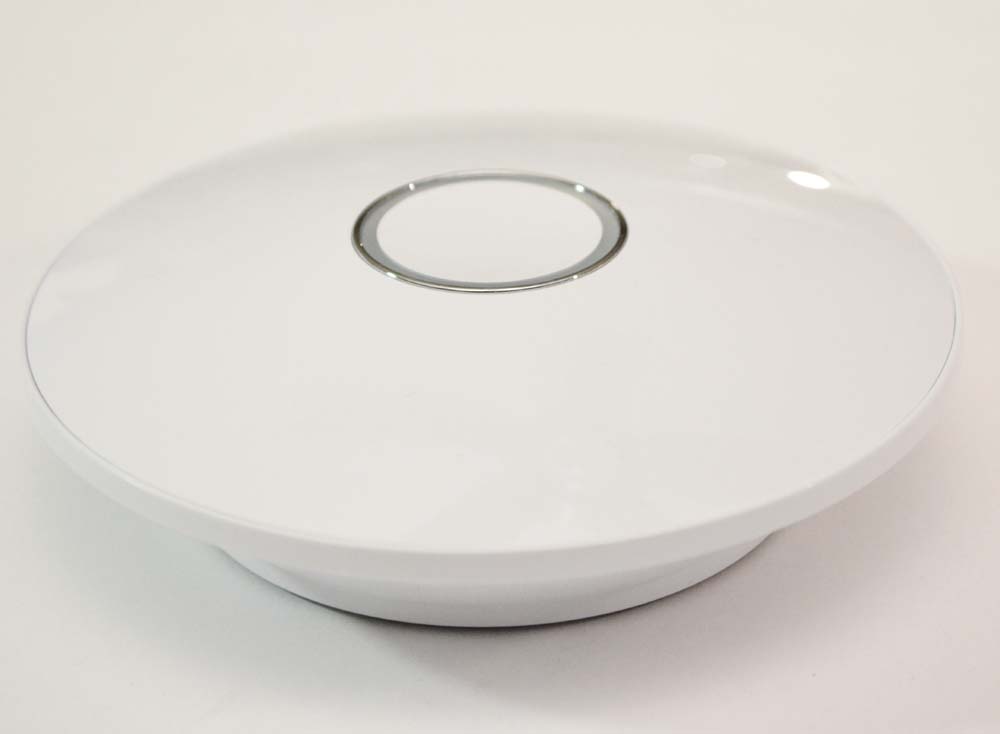

A-OK AC520-01 Smart Home Mobile Device Interface

The A-OK AC520 (aka Orvibo Allone Pro VS20RB) is a smart home bridge / hub that links up to WiFi and allows direct mobile device control of RF enabled A-OK roller shade motors at or away from home. The hub also features a built-in IR blaster to control almost any IR controlled device like tvs and stereos.

The HomeMate app. used with this smart home hub allows manual control shades, scenes creation and sheduled automation events for your shades.

A-OK AC520 Mobile Device Interface Specifications:
   •  Compatible with Phones and Tablets - Android (4.0.3 and Higher) and iOS (8.0 and Higher)
   •  Provides Scheduled and Manual Control of RF A-OK motors
   •  Local Wifi Network required 2.4GHz 802.11 b/g/n
   •  Radio Frequency RF Control - 433.92MHz
   •  Modulation: OOK / 2FSK / 2GFSK / GMSK
   •  IR Frequency - 20 to 60KHz
   •  Large IR Remote Control Database
   •  Power Source: USB Micro 5VDC 1A
   •  Typical Control Range: up to 100' *
   •  Dimensions -  4.33" Diameter x 1.24" H
   •  Weight: App. 0.8lb
   •  Warranty: 5 years

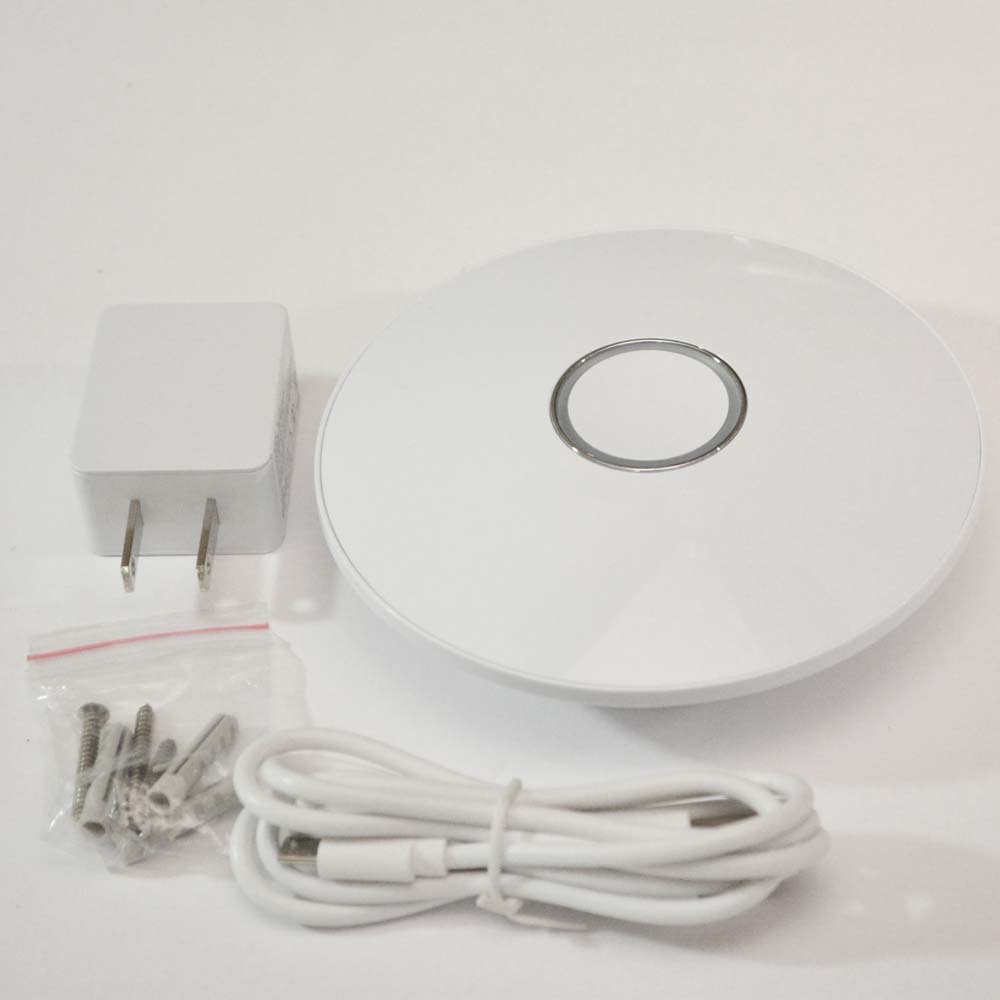

   •  Included Items:
        -  A-OK AC520 Hub
        -  USB Power Supply
        -  Hardware

* Control Range: Range depends on walls, construction type and RF noise in the area. We've tested the range to be app. 70 feet through several walls and from a different floor in a house.
