ZMC RS-SF1-9 Flat Internal Shade Hem Bar - 9 Foot (106" Actual)

Shade hem bars are used at the bottom of a shade to help keep the shade flat while it is hanging. Internal hem bars are typically concealed in a pocket formed by folding the shade material. Traditionally, wood or aluminum is used for shade or blind hems. Aluminum provides the benefit of resistance to warp, strength and increased weight. Large shades and stiff shade materials require the use of heavier ham bars.

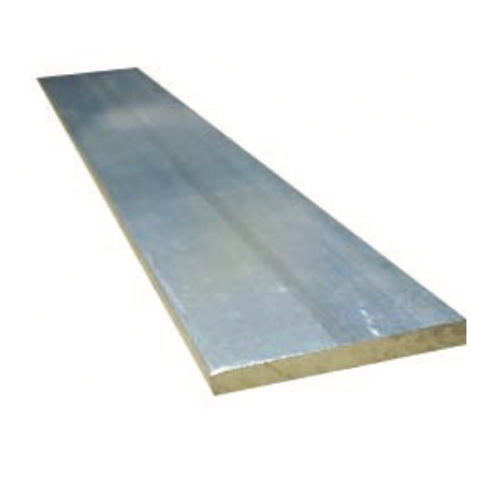

The ZMC RS-SF1 is a simple flat aluminum hem bar that can be used for small to medium shades.

ZMC RS-SF1-9 Aluminum Internal Hem Bar Specifications - 9 Foot (106" Actual):
   •  Length: 106" - (+/-0.125")
   •  Height: 1"
   •  Thickness: 0.12"
   •  Weight: 0.14 lb per foot
   •  Material: Aluminum
   •  Finish: As Extruded
   •  Shape: Flat
   •  Stocked in 16 foot lengths

Optional: FREE custom cut lengths cut to an accuracy of 1/16" +/- 1/32.

* Max Package length for UPS ground is 108" so we can not cut 9 Foot product to full 108" length. If you require full 108" product length we will have to quote Freight Shipping.
