Rollease RFP4-6 4" Aluminum Fascia Panel - 6 Foot

Write a review
$46.20  Each

Fascia Color
The aluminum fascia is available as anodized aluminum or powder coated paint options: White, Vanilla, Bronze, Black

Fascia brackets are provided as color coordinated but you can request different color brackets by making a comment on your order.
Note: Gray brackets are provided with the anodized aluminum fascia.

Product pictures may not represent colors accurately.

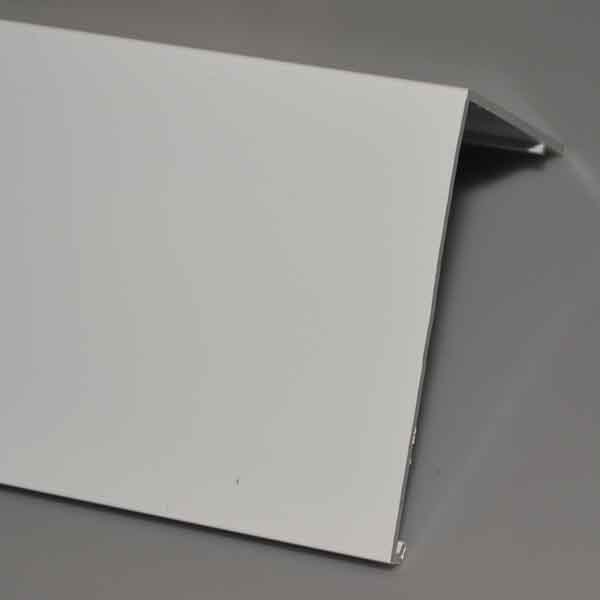

White Fascia
White Fascia White
White

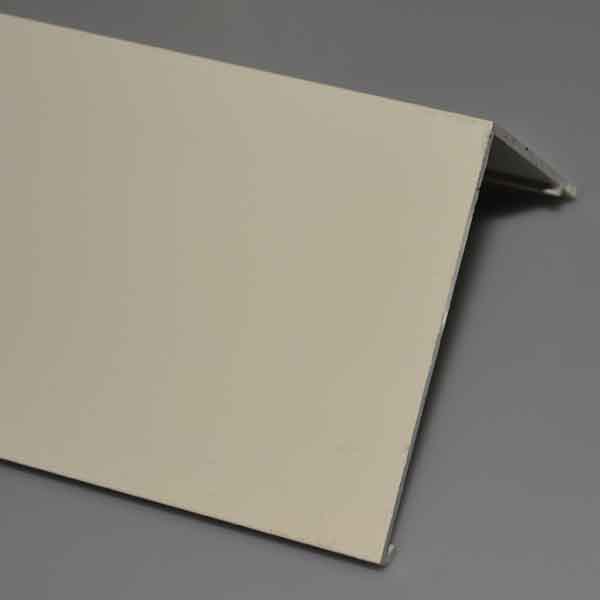

Vanilla Fascia
Vanilla Fascia Vanilla
Vanilla
Black Fascia
Black Fascia Black
Black

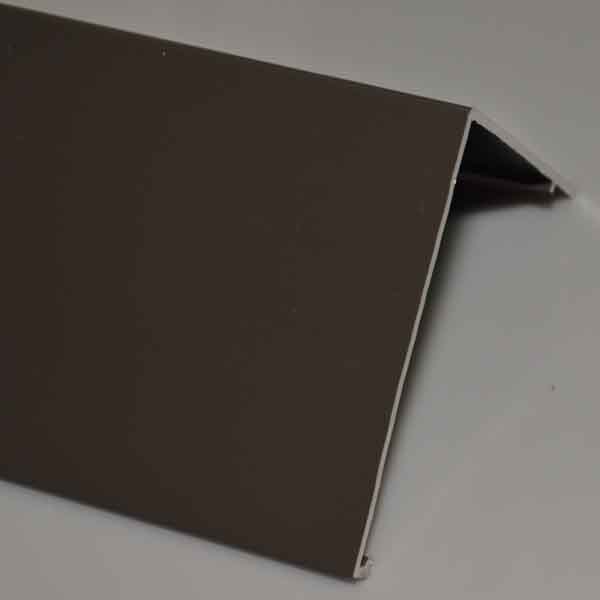

Bronze Fascia
Bronze Fascia Bronze
Bronze

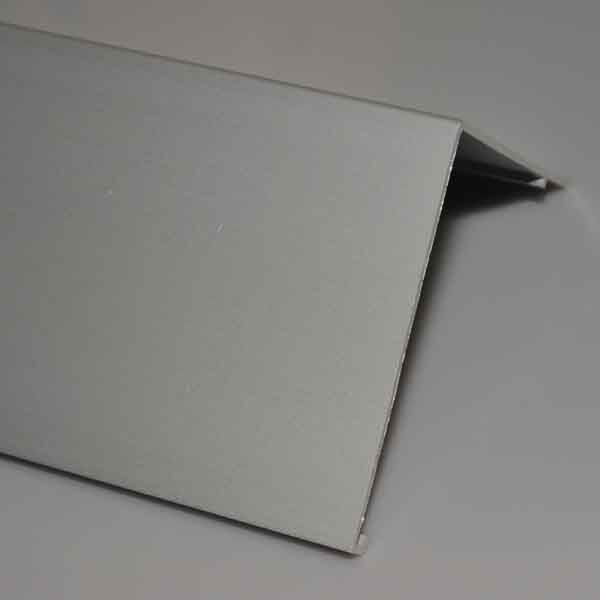

Anodized Fascia
Anodized Fascia Anodized
Anodized
RFP4-6
+ −
MFG Drop Ship - Typ. Ships in 5 Biz Days (Info ?)

Description

The Rollease RFP Series aluminum fascia panel simply snaps into the fascia panel brackets for easy access to the roller shade components. The RFP series fascia panel can be used for inside or outside frame mount applications. This fascia panel covers the front and bottom to hide the shade assembly. The back and top of the fascia are left open. The use of this fascia panel forces the shade to use regular roll. Regular roll puts the shade material closest to the window. The 4" Fascia panel is our standard size offered which is compatible with our Rollease Chain & Clutch Shades, Somfy & Rollease motorized shades. Please check your roll diameter with the shade calculator below and make sure your shade will fit!

Rollease Fascia Installed - Inside Mount

Rollease RFP4-6 Fascia Specifications
   •  4" Aluminum Fascia
   •  Length: 6 Foot +/- 1/4"
   •  Stocked Lengths up to 12 Foot
   •  Shades must be REGULAR Roll - Material Rolls Back towards Glass
   •  Fascia Covers Front and Partial Bottom - top and back are open
   •  Fascia Snaps into Fascia Brackets - Easy On/Off
   •  Fascia Brackets can and are typically used to hold shades as well.
   •  Brackets can be used for Side Wall, Back Wall Or Ceiling Mounting
       (Drilling through Bracket May be required for side wall mounting)
   •  Includes: Fascia Panel Only

Calculate your Roll Diameter - Make sure the shade fits in the fascia!

Optional: FREE custom cut lengths cut to an accuracy of 1/16" +/- 1/32.

Note: The fascia requires notching if used with a clutch and chain mechanism. This service is not provided. Please see the 4" Additonal Information PDF below for more information.

Optional Items
   •  Fascia Brackets - (Color Coordinated)

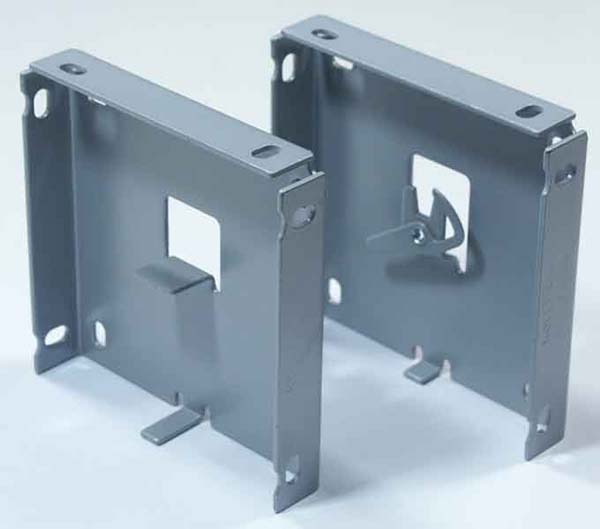

        -  Rollease RB581+RTN Brackets Compatible with R16/R24 Clutches
   •  Fascia Bracket Covers - (Color Coordinated)

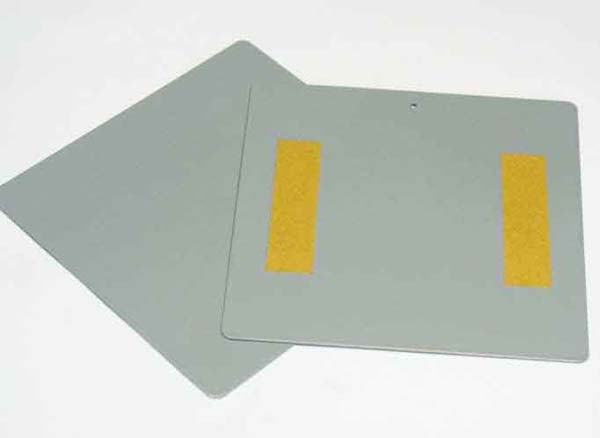

        -  RB581FP Stick-on End Plates

Compatible 4" facscia brackets for R3/R8 Clutches, Somfy LT30, R28, ST30, ST40 motors and Rollease 0.2, 1.1 & 2.0 Nm motors use ZMC RS-UG fascia brackets Sold Separately.

Compatible 4" facscia brackets for Somfy ST50 motors use ZMC RS-8XX fascia brackets Sold Separately.

Rollease 4" Fascia - Additional Information - PDF

Roller Shade Component Dimensions

Rollease Clutch and Chain Shade Fabrication

Calculate your Roll Diameter - Make sure the shade fits in the fascia!

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

Maximum Shade Heights for Rollease 4" Fascia
