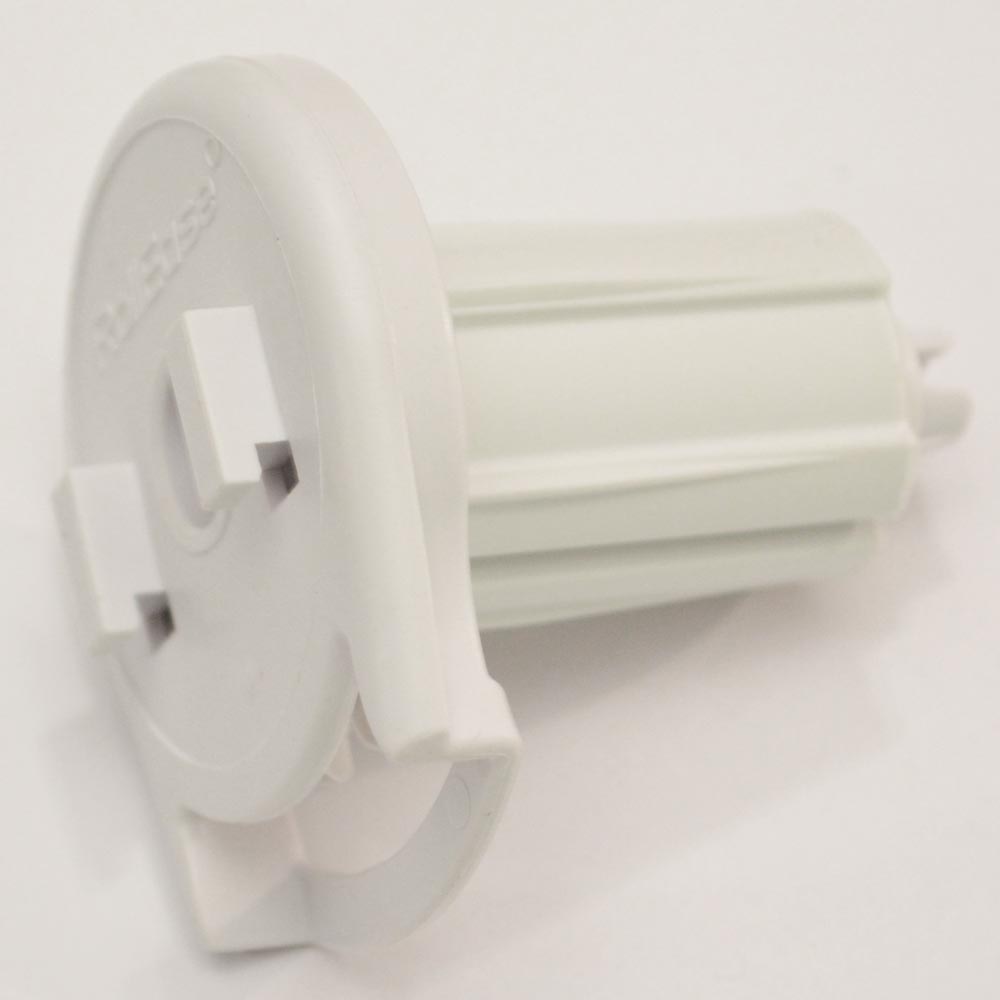

Rollease SL10H01 Skyline Clutch Drive - 11lb Holding Capacity

The Rollease Skyline Series Clutches ending with H01 are designed to fit into 1 1/8" tubes but easy to use adapters are available for 1.25" and 1.5" shade tubes.

Rollease Skyline SL10H01 clutch Specifications:
   •  Clutch Holding Capacity
         -  1 1/8" Tube: 11lb
         -  1 1/4" Tube: 10lb - Requires SLA03 Adapter
         -  1 1/2" Tube: 8lb - Requires SLA53 Adapter
   •  Color: White
   •  Allows for Chain Drive of roller shades
   •  Overall Length: App. 2.4"
   •  Overall Diameter: App. 1.94"
   •  Insertion Depth: App. 1.87"
   •  Insertion Diameter: App. 1.0675"
   •  Protrusion From Tube: App. 0.552"
   •  Compatible Beaded Chain: Rollease RBC #10 Beaded Chain
   •  Compatible Tube: Rollease RTEA2T 1.125" (28mm)
   •  Compatible Tube: Rollease RTEA3T 1.25" (32mm) - Requires SLA03 Adapter
   •  Compatible Tube: Rollease RTEA4T 1.5" (38mm) - Requires SLA53 Adapter
   •  Compatible Brackets: Rollease SLB660, SLB680 and SLB690
   •  Compatible End Plug: Rollease SLPE03 - 1.25" Tube
   •  Compatible End Plug: Rollease SLPE53 - 1.5" Tube
   •  Compatible End Plug: Rollease SLPEHD53 - 1.5" Tube

OPTIONAL ITEMS

   •  Clutch Adapter

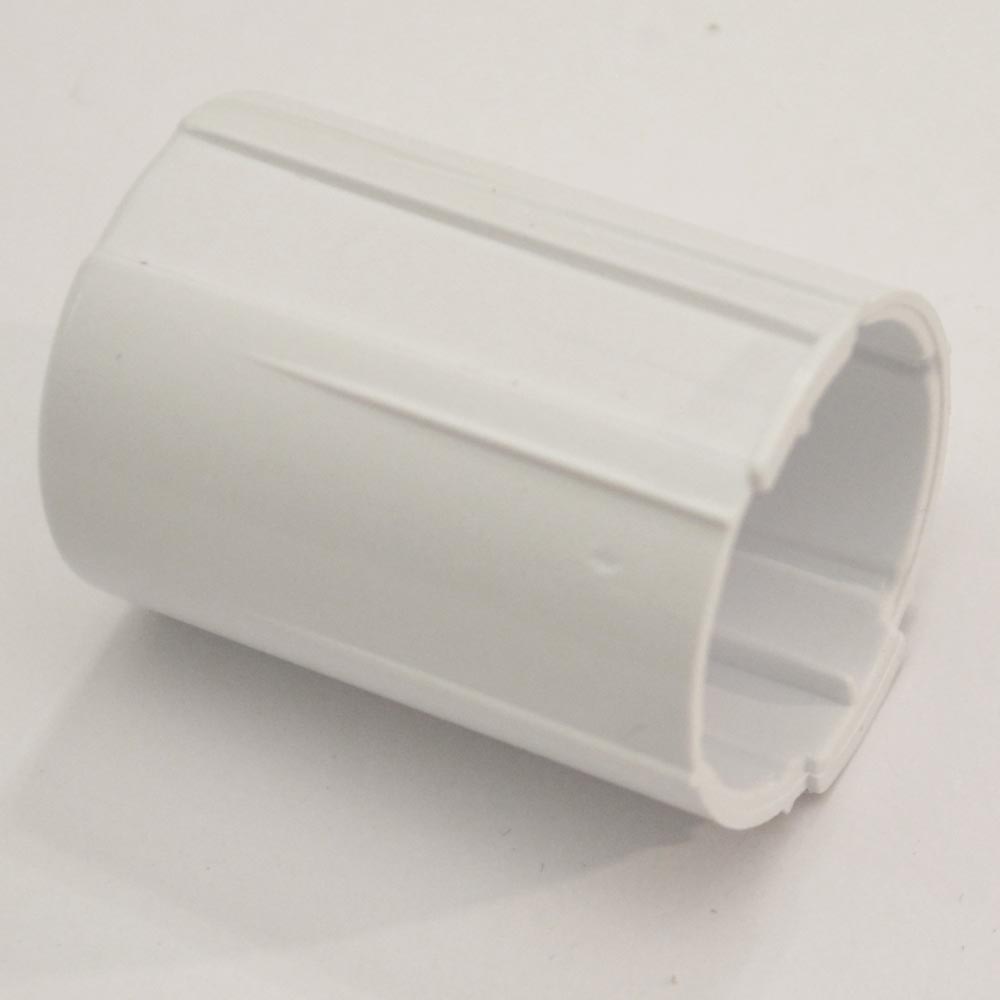

        -  SLA03 for 1.25" Rollease Tubes

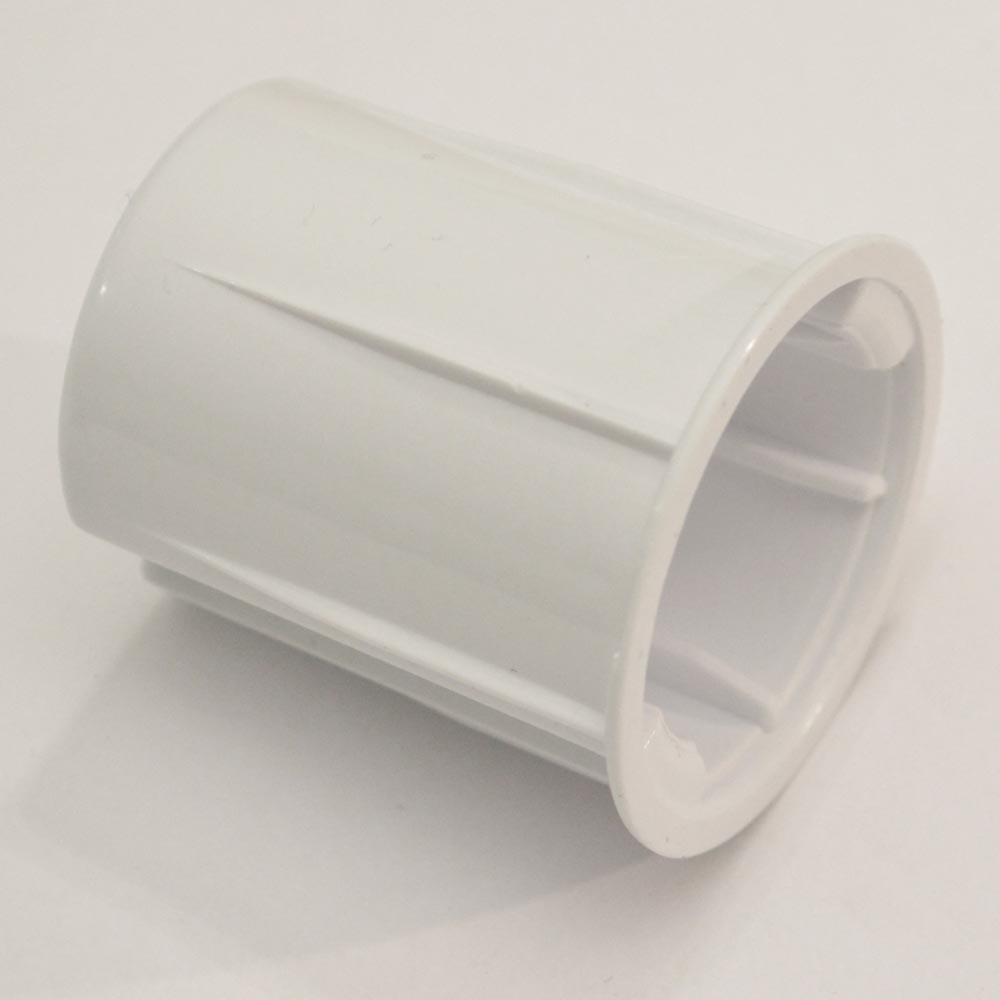

        -  SLA53 for 1.5" Rollease Tubes

Rollease Clutch Brochure

Roller Shade Component Dimensions

Rollease Clutch and Chain Shade Fabrication

Chain/Clutch Driven Roller Shade Installation Instructions

We sell the clutch kits without consideration of use. Clutches are rated for capacity to hold a material in place. Clutches with small heads require more pull force to lift a shade than a clutch with a larger head. Larger tubes will require more pull force than smaller tubes. Below are our generic recommendations for clutch use which are conservative. Tube deflection and pull force are considered.
   •  Shades up to 48" width - SL10 or SL15 Clutch and 1.125" Tube
   •  Shades up to 60" width - SL10 or SL15 Clutch and 1.25" Tube
   •  Shades up to 64" width - SL10 or SL15 Clutch and 1.5" Tube
   •  Shades up to 96" width - SL20 or SL30 Clutch and 1.5" Tube
   •  Shades up to 120" width - SL30 Clutch and 2" Tube
   •  Shades up to 144" width - SL30 Clutch and 2.5" Tube

Actual shade size, tube size and material should be used to determine the true limits of a system. The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube and causes ripples in the hanging shade material.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
