Gaposa XS50-Li3026 (XSDC5EZ326B) Li-ion Battery Powered RF Roller Shade Motor, 3Nm, 26RPM

The Gaposa XS50 series Super Sileos XS50-Li3026 is a quiet Li-ion roller shade motor. Gaposa XS Super Sileos motors are engineered with superior noise reduction technology and are barely heard. This shade motor features a long life built-in lithium-ion battery. Say good bye to expensive external batteries. Lithium-ion battery technology is mature and has moved into motorized shade. This is now the default option for retrofit installations where wiring a power source is not possible. The built-in lithium battery is expected to provide approximately 500 cycles of operation (depends on shade size) before needing a charge. That means you'll only need to plug in the optional external battery charger once a year or so.

This heavy duty motor is designed for tubes as small as 2" in diameter and does not have any practical limits with respect to it use with roller shades. Choose this motor where medium to moderately large shades need to be lifted and where operation must be at their quietest levels.

Radio Frequency: This Gaposa shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. The motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up, Full Down and to a customer specified preferred position. No need to hold the button down and wait for the shade to reach the desired position.

Multiple Controls: The shade motor is controlled via Gaposa's advanced RF technology which offers the user simple individual or group control. Each motor can be controlled by more than one remote control. You can use one remote for local room based control and another remote for whole home control. Need more advanced controls? No problem, Gaposa has the RollApp Android/iOS mobile device interface that provides manual and scheduled timer based control. Need integration with your home automation system? No Problem, Gaposa has the LinkIt RS232 control and QCTZ36SDU Dry Contact interface for integration with Home Automation systems.

Soft Stop: The shade motor reduces speed as it nears a programmed stopping point to softly stop your shade.

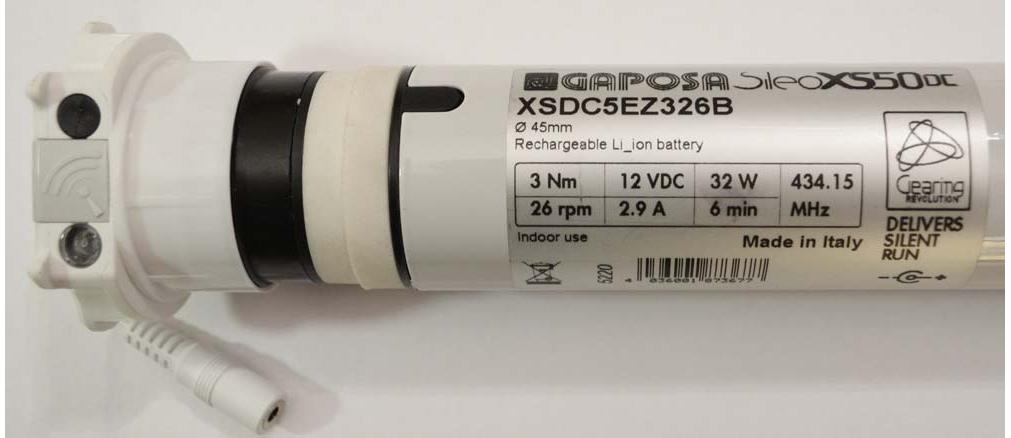

Gaposa XS50-Li3026 Li-ion Roller Shade Motor Specifications
   •  XS50 Series - Super Sileos - Ultra Quiet
   •  RF Control Technology: 434.15MHz
   •  No external power source required (Except for Charging)
   •  Built-in 12v Rechargeable Lithium-ion Battery
   •  Nominal Motor Size: 45mm
   •  Torque: 3.0Nm
   •  Lift Capacity - Not Including Tube Weight
        -  2" Tube: 26.5lb
        -  2.5" Tube: 21.2lb
        -  3.25" Tube: 16.3lb
   •  Motor Speed: 26 RPM (Not Adjustable)
   •  Ultra Quiet Operation: < 40 dBa (Not a Specification)
   •  Soft Stop: Speed is reduced when the shade comes to a stop
   •  3 Programmable Stops (Open/Closed/Intermediate)
   •  Low Battery Indicator: None
   •  3.5" Charging Cable w/ Female 3.5mm x 1.35mm Plug

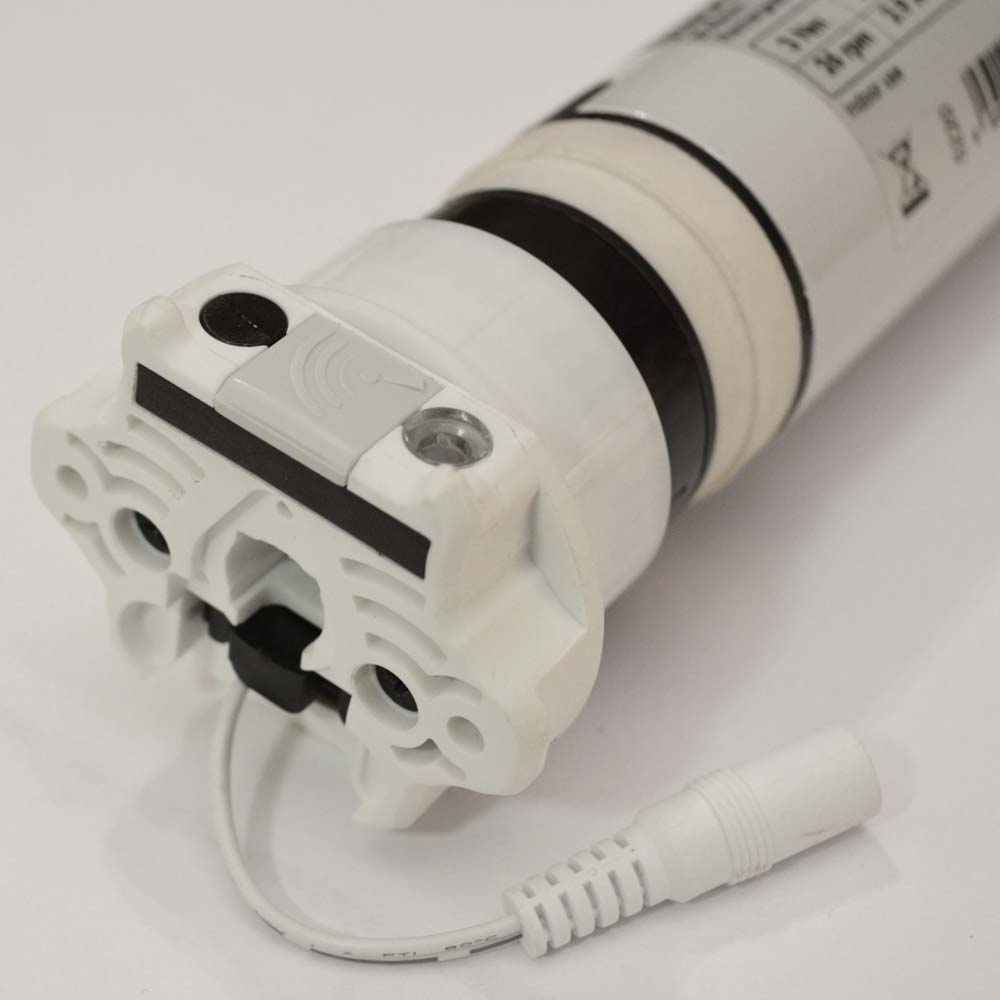

   •  Star Head Motor - Compatible with Somfy and ZMC Brackets
   •  Requirements for use - Not Included

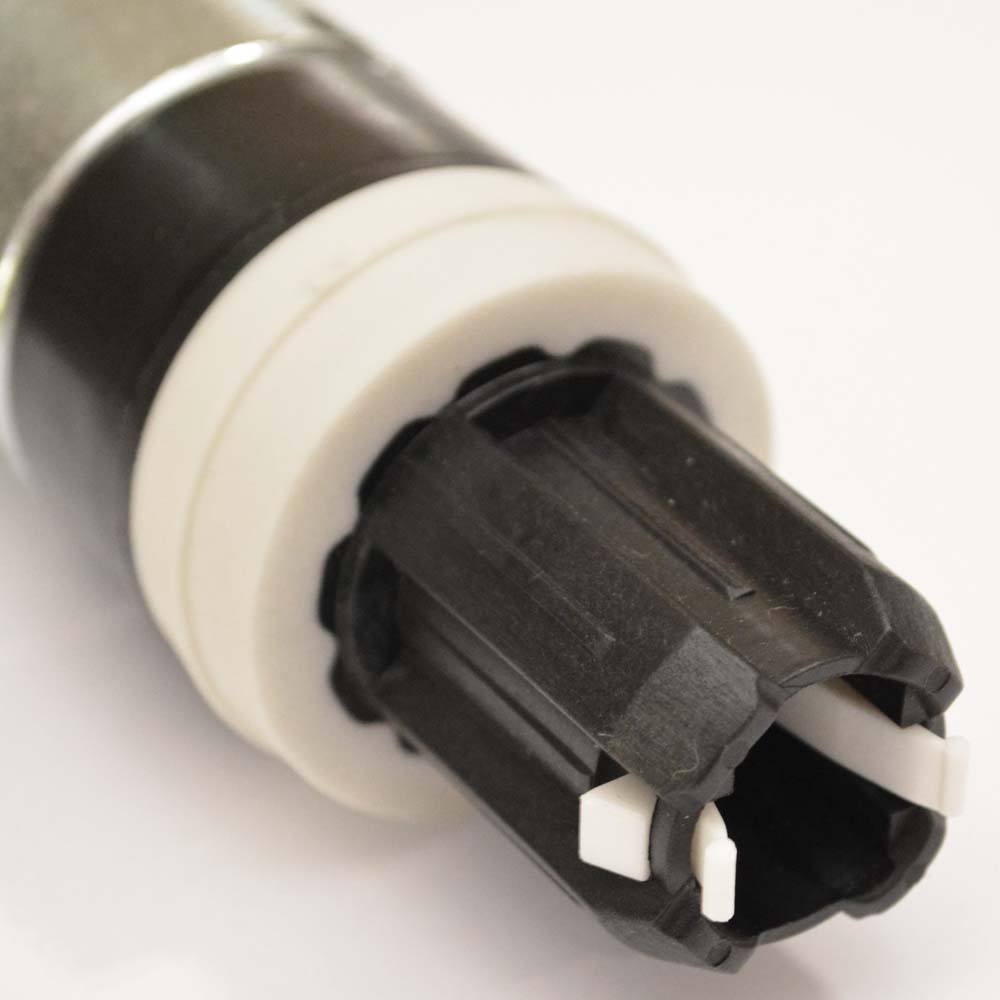

        -  Motor Crown and Drive (Tube Adapter)
        -  Gaposa RF Remote
        -  2.5" or 3.25" Rollease Shade Tube
        -  2.5" or 3.25" Idler/End Plug
        -  Somfy or ZMC Shade Brackets
   •  Dimensions

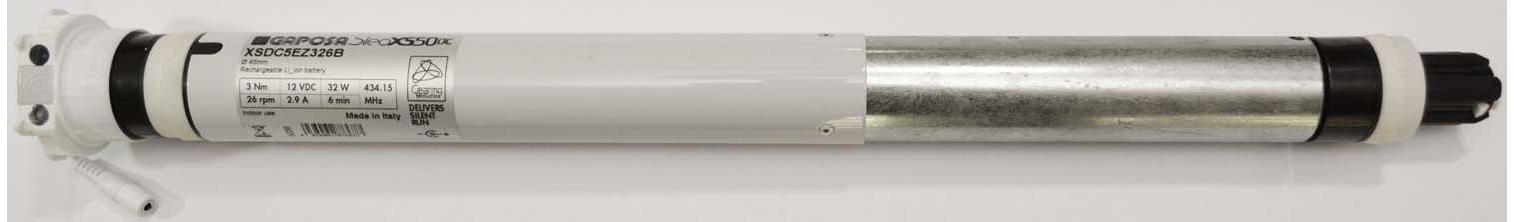

        -  Overall: 22.625" L x 2.36" Dia.
   •  Weight: App. 4.6lb
   •  Warranty: 3 years
   •  Made in Italy
   •  Includes:
        -  Motor
   •  Gaposa Part#: XSDC5EZ615B
   •  AVO Part#: XS50-Li3026

Note: This product can only ship via ground shipping methods due to the lithium battery.

Recommended Tip to Tip Deductions
1.75" -  Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler

Tip to Tip Measurement: This is the measurement used for shades mounted within a window frame or within framed constraints and effectively the measurement from the outside edge of the brackets in a shade system.

Minimum Shade Width
30" Tip to Tip -  Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler
28.25" Tube Length -  Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler

Maximum Shade Width
144" Tip to Tip - Using  2.5" Rollease Tube & ZMC Components
No Practical Limit - Using 3.25" Rollease Tube - Consider Weight

Maximum Width limitations are guidelines to minimize tube deflection and are not always a reflection of lifting capacity. The shade fabricator calculator below should be used to determine a system's limitations.

Rollease Shade Tube Specifications

Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
