Rollease R16-Kit - Chain/Clutch Drive Shade Kit for 1.5" and 2" Roller Shade Tubes

Rollease R16-Kit - Chain/Clutch Drive Shade Kit for 1.5" and 2" Roller Shade Tubes

Write a review

$13.02 Each

Product Code: R16-Kit

Quantity:

+ −

Quantity Discounts:

5+	10+	20+
$12.37	$11.72	$10.42

Ask a question

Stocked Item - Typ. Ships within 1 Biz Days (Info ?)

R16 Clutch Color:

More Information

Rollease R16 (Vanilla)
• Vanilla
• Use with Rollease 1.5" or 2" Tubes

Rollease R16 (Black)
• Black
• Use with Rollease 1.5" or 2" Tubes *

Product pictures may not represent colors accurately.

* Adapters are required for 2" tubes.

Vanilla

Black

R16 Adapter:

More Information

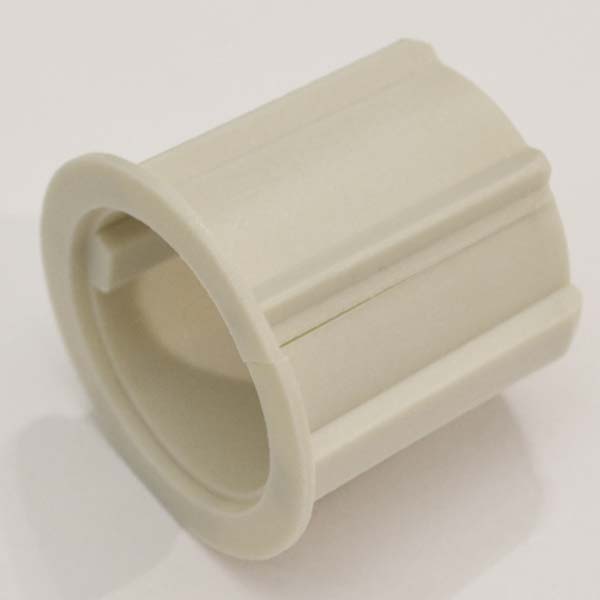

Rollease RA2 (Vanilla)
• Vanilla
• Use with Rollease 2" Tubes

Rollease RA2 (Black)
• Black
• Use with Rollease 2" Tubes

The R16 clutch is natively compatible with the Rollease 1.5" tube and does not require an adapter.

1.5" Tube Max Recommended Span - 96"

2" Tube Max Recommended Span - 120"

Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

RA2V

RA2B

R16 Idler:

More Information

Rollease REP53 (Vanilla)
• Vanilla
• Use with Rollease 1.5" Tubes

Rollease REP53 (Black)
• Black
• Use with Rollease 1.5" Tubes

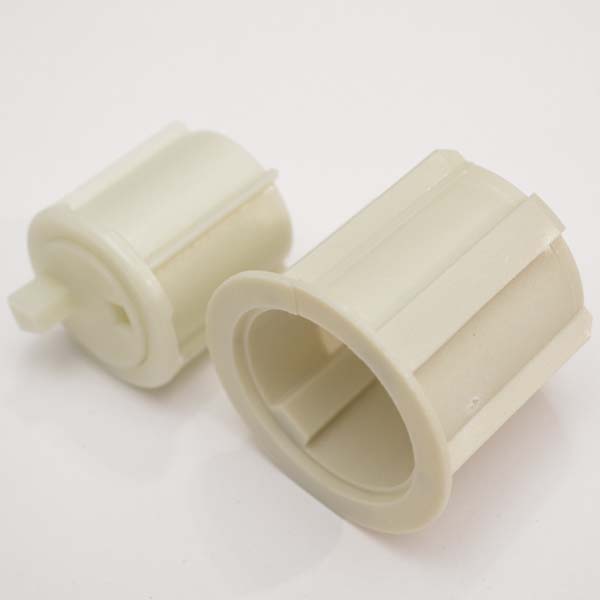

Rollease REP53 & RA2 (Vanilla)
• Vanilla
• Use with Rollease 2" Tubes

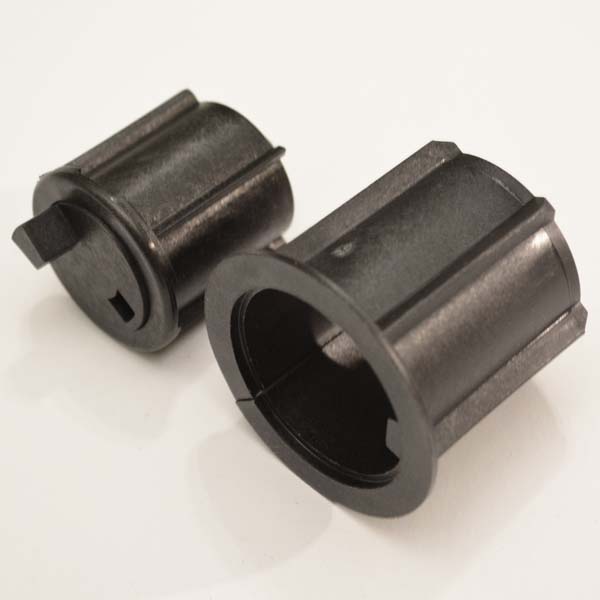

Rollease REP53 & RA2 (Black)
• Black
• Use with Rollease 2" Tubes

1.5" Tube Max Recommended Span - 96"

2" Tube Max Recommended Span - 120"

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

REP53V

REP53B

REP53V & RA2V

REP53B & RA2B

Chain Option:

More Information

Plastic Beaded Chain
Colored plastic beads are fused to a color coordinated nylon cord. The plastic beaded chain is argued to be the strongest of the chain options due to its continuous cord. Plastic beaed chains do not hang as nicely as the metal beaded chains.

Includes: Color coordinated chain connector and clear snap-on stop ball.

Nickel Plated Steel Beaded Chain
The least durable of all choices but more economical than stainless steel.

Includes: Nickel plated steel chain connector and crimp-on stop ball.

Stainless Steel Beaded Chain
Stainless steel beaded chain is close to the plastic beaded chain in strength. The advantage of stainless steel is that it will retain its appearance.

Includes: Stainless steel chain connector and nickel plated steel crimp-on stop ball.

All options include 20 Feet of chain, Stop Ball and Connector.

Need a different length?
Different lengths can be purchased separately.
Beaded Chain Options

Not sure how much you need?
Chain Length Chart

White (20')

Ivory (20')

Black (20')

Nickel Plated Steel (20')

Stainless Steel (20')

R16 Bracket Option:

More Information

Rollease RB560 (Zinc)
• Zinc
• 1.625" Projection *

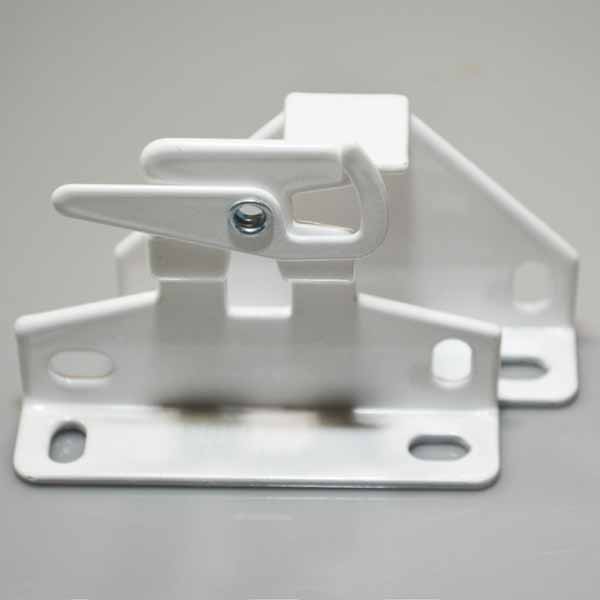

Rollease RB560 (White)
• White
• 1.625" Projection *

Rollease RB560 (Black)
• Black
• 1.625" Projection *

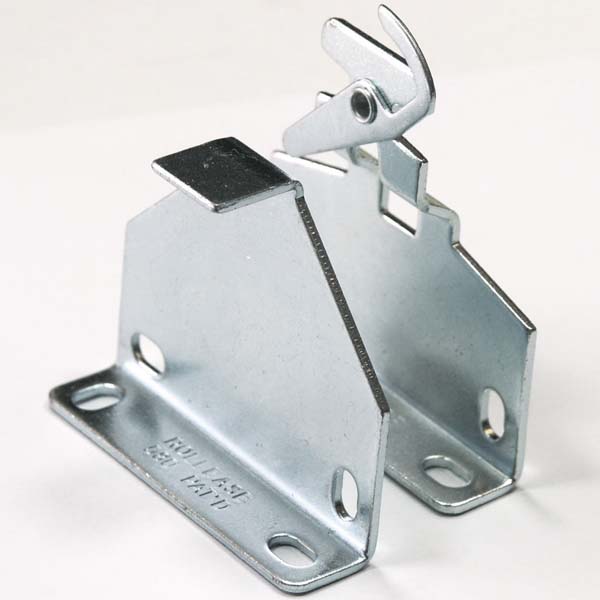

Rollease RB580 (Zinc)
• Zinc
• 2" Projection *

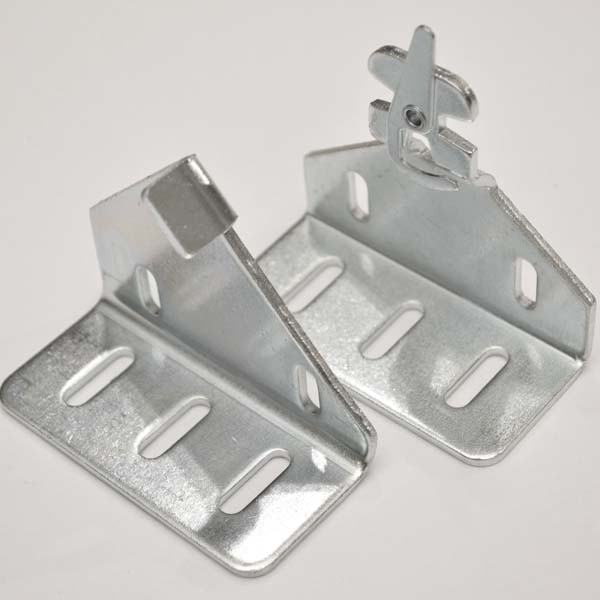

Rollease RBGAL (Zinc)
   •  Zinc
   •  Heavy Duty
   •  2.25" Projection *

* Projection Distance is the distance from the mounting surface to the center of the tube. Divide your roll diameter in half to figure out which bracket you need. If your roll diameter is 3" you will need the RB380 or RB390 brackets. Use of the RB360 would result in the shade rubbing the wall. If you do not know what your roll diameter is you can calculate the roll diameter using the shade calculator below.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

RB560Z

RB560W

RB560B

RB580Z

RBGAL

Chain Tensioner:

More Information

Rollease/ZMC Chain Tensioner
• Color: Clear
• Rollease/ZMC WMCA Compliant Safety Device

The RolleaseZMC chain tensioning device is versatile safety device to hold beaded chain and cord. Chain tensioning devices are strongly recommended to keep the chain tight to the wall. This greatly reduces the chances for injuries. Complies with the WCMA-ANSI standard that requires a hold-down device to make the shade partially inoperable unless the hold-down device is installed. The hold-down device is designed for continuous cord or bead chain loops that allows stop balls and/or connectors to pass through.

Clear Chain Tensioner

Misc. Items:

More Information

Rollease Shade Tape
• Double Sided
• 0.525" x 36yd Roll

Double sided roller shade tape is used to secure shade material to roller shade tubes. This industry standard shade tape is the same tape Rollease applies to their tubes. It is typically only needed if reusing old tubes.

Shade Tape

Description

The Rollease R16-Kit is a custom clutch shade kit that allows you to select the necessary components for your shade installation. Use this kit for small to large shades up to 96" W x 96" H(**Consider Shade Weight). All necessary items are listed here with the clutch as an option. The base price for the kit is for the clutch alone without options.

Rollease R16 Shade Clutch Specifications:
   •  Color: Vanilla or Black
   •  Compatible with 1.5" & 2" Rollease Tubes
   •  Allows for Chain Drive of roller shades
   •  Head Diameter: 2.66"
   •  Insertion Depth: 1.875"
   •  Insertion Diameter: 1.425" (Designed for a press fit)
   •  Protrusion From Tube: 0.54"
   •  Lifting Capacity:
         -  16lb on 1.5" Tube
         -  12lb on 2" Tube
   •  Base Price Only Includes the Shade Clutch

Roller Shade Tubes and Hem Bars are Sold Separately
• Rollease Roller Shade Tubes - Product Link
• Rollease Internal Bar and External Hem Bars - Product Link

Rollease Clutch Brochure

Roller Shade Component Dimensions

Rollease Clutch and Chain Shade Fabrication

Chain/Clutch Driven Roller Shade Installation Instructions

Note: We sell the clutch kits without consideration of use. Clutches are rated for capacity to hold a material in place. Clutches with small heads require more pull force to lift a shade than a clutch with a larger head. Larger tubes will require more pull force than smaller tubes. Below are our generic recommendations for clutch use which are conservative. Tube deflection and pull force are considered.
   •  Shades up to 36" width - R8C02 Clutch and 1" Tube
   •  Shades up to 48" width - R8C01 Clutch and 1.125" Tube
   •  Shades up to 60" width - R8C03 Clutch and 1.25" Tube
   •  Shades up to 64" width - R8C14 Clutch and 1.5" Tube
   •  Shades up to 96" width - R16 or R24 Clutch and 1.5" Tube
   •  Shades up to 120" width - R16 or R24 Clutch and 2" Tube
   •  Shades up to 144" width - R24 Clutch and 2.5" Tube

Actual shade size, tube size and material should be used to determine the true limits of a system. The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube and causes ripples in the hanging shade material.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

Features

Capacity:

NA, 16lb on 1.5" Tube
NA, 12lb on 2" Tube

Shade Drive:

R16 Clutch
