Description
The Gaposa XS50 series Super Sileos XS50-DC4028 is a quiet 24VDC roller shade motor. Gaposa XS Super Sileos motors are engineered with superior noise reduction technology and are barely heard. This heavy duty motor is designed for tubes as small as 2" in diameter and does not have any practical limits with respect to it use with roller shades. Choose this motor where medium to very large shades need to be lifted and where operation must be at their quietest levels.
Radio Frequency: This Gaposa shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. The motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up, Full Down and to a customer specified preferred position. No need to hold the button down and wait for the shade to reach the desired position.
Dry Contact Control Technology: Not a fan of RF control or maybe you want to use wired and RF control together. This Gaposa motor also has dry contact control built-in. Dry contact control allows you to the control with simple buttons, switches, relays or third party programmable contacts. Dry contact controls do not require or use voltage. All you have to do short two wires together to command the motor.
Note: The motor is not programmable via the dry contact wires but the upper and lower limits (Not Intermediate) can be programmed via the buttons on the motor head.
Multiple Controls: The shade motor is controlled via Gaposa's advanced RF technology which offers the user simple individual or group control. Each motor can be controlled by more than one remote control. You can use one remote for local room based control and another remote for whole home control. Need more advanced controls? No problem, Gaposa has the RollApp Android/iOS mobile device interface that provides manual and scheduled timer based control. Need integration with your home automation system? No Problem, Gaposa has the LinkIt RS232 control and QCTZ36SDU Dry Contact interface for integration with Home Automation systems.
Soft Stop: The shade motor reduces speed as it nears a programmed stopping point to softly stop your shade.
Gaposa XS50-DC4028 24VDC Roller Shade Motor Specifications
• XS50 Series - Super Sileos - Ultra Quiet
• RF Control Technology: 434.15MHz
• Dry Contact Technology
• Nominal Motor Size: 45mm
• Operating Voltage: 24VDC
• Normal Current Draw: 2.0A
• Torque: 4.0Nm
• Lift Capacity - Not Including Tube Weight
- 2" Tube: 35.4lb
- 2.5" Tube: 28.3lb
- 3.25" Tube: 21.8lb
• Motor Speed: 28 RPM (Not Adjustable)
• Ultra Quiet Operation: < 40 dBa (Not a Specification)
• Soft Stop: Speed is reduced when the shade comes to a stop
• 3 Programmable Stops (Open/Closed/Intermediate) - RF Control
• 2 Programmable Stops (Open/Closed) - DCT Control
• Removable12" Power Only Cord - 11" w/Female 5.5mm x 2.1mm Plug
• Removable 6 Conductor 59" Dry Contact/Power Cord
• Star Head Motor - Compatible with Somfy and ZMC Brackets
• Requirements for use - Not Included
- Motor Crown and Drive (Tube Adapter)
- Gaposa RF Remote (Not required for Dry Contact use)
- 2.5" or 3.25" Rollease Shade Tube
- 2.5" or 3.25" Idler/End Plug
- Somfy or ZMC Shade Brackets
- 24VDC Power Supply
• Dimensions
- Overall: 20.1875" L x 2.36" Dia.
• Weight: App. 3.85lb
• Warranty: 5 years
• Made in Italy
• Includes:
- Motor
- Power Cord
- Dry Contact/Power Cord

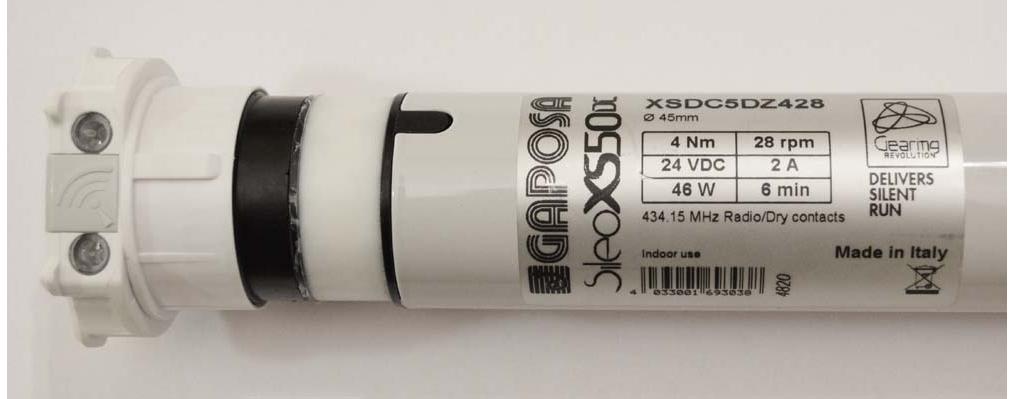

• Gaposa Part#: XSDC5DZ428
• AVO Part#: XS50-DC4028
Recommended Tip to Tip Deductions
1.75" - Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler
Tip to Tip Measurement: This is the measurement used for shades mounted within a window frame or within framed constraints and effectively the measurement from the outside edge of the brackets in a shade system.
Minimum Shade Width
27 9/16" Tip to Tip - Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler
25 13/16" Tube Length - Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler
Maximum Shade Width
144" Tip to Tip - Using 2.5" Rollease Tube & ZMC Components
No Practical Limit - Using 3.25" Rollease Tube - Consider Weight
Maximum Width limitations are guidelines to minimize tube deflection and are not always a reflection of lifting capacity. The shade fabricator calculator below should be used to determine a system's limitations.
A typical Gaposa XS50-DC4028 motorized shade 30" W x 60" H on a 2.5" tube uses approximately 450ma of current at 24VDC.
* Our stated current draws are for use as estimates ONLY and are not specifications. Gaposa states the XS50-DC5028 Motors consume 2000ma (2A) per motor. Current draw will depend on motor used, type of window treatment (roller shade, cellular, roman etc), size of tube, size and weight of the shade. To be certain of your needs you should test the current draw of your particular window treatment. Size your power supplies accordingly.
Rollease Shade Tube Specifications
Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.
Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
Roller Shade Tubes and Hem Bars are Sold Separately
• Rollease Roller Shade Tubes - Product Link
• Rollease Internal Bar and External Hem Bars - Product Link
Related Downloads
Gaposa XS50-DC4028 Shade Motor Specification Sheet
Gaposa XS50-DC4028 RF Shade Motor Programming Instructions (RF Remote Control Use)
Gaposa XS50-DC4028 DCT Shade Motor Programming Instructions (DCT Dry Contact Use)
Gaposa XS50-DC4028 Shade Motor Installation Instructions
ZMC RS-884 Universal Idler Instructions
Gaposa Roller Shade Motor and Related Videos
How to program a Gaposa roller shade motor
Compare how roller shade motors sound
Features
Capacity:
- 4Nm, 28.3lb on 2.5" Tube
- 4Nm, 21.8lb on 3.25" Tube
Shade Drive:
- Gaposa XS50
