Gaposa XS50-AC5025 (XS5EZ525) 120VAC Powered RF Roller Shade Motor, 5Nm, 25RPM - Kit

Write a review

List price: $233.21

$199.89 Each

You save: $33.32 (14%)

Product Code: XS50-AC5025-Kit

Quantity:

+ −

Ask a question

Special Order - Typ. Ships in 3-5 Biz Days (Info ?)

Gaposa XS50 C/D:

More Information

Gaposa - XS50CD2500
• Crown and Drive for 2.5" Rollease RTEA6T Tubes

XS50CD250 - 2.5"

Gaposa XS50 Idlers:

More Information

ZMC RS-884 idler and RS-982/984 2.5" Adapter
• Spring Loaded and Retractable 10mm Ultra Idler
• Crown and Drive for Rollease 2.5" RTEA6T Tubes

Assembled RS-844 Idler with Adapters installed

The next gen in idlers! The ZMC Ultra idler features a snug fit rubberized shaft to eliminate the loose play found in competing idlers.

RS-884/982/984

Gaposa XS50 Brackets:

More Information

ZMC RS-701 Motor Bracket
   •  Somfy Style Star Head Motor Bracket
   •  Color: White
   •  2.375" Projection Distance
   •  Used for Side Wall, Back Wall or Ceiling Mounting

ZMC RS-711 Idler Bracket
   •  10mm Idler Bracket w/Bearing
   •  Color: White
   •  2.375" Projection Distance
   •  Used for Side Wall, Back Wall or Ceiling Mounting

* Projection Distance is the distance from the mounting surface to the center of the tube. Divide your roll diameter in half to figure out which bracket you need. If you do not know what your roll diameter is you can calculate the roll diameter using the shade calculator.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

RS-701 Motor Bkt

RS-711 Idler Bkt

RS-701 & RS-711

Gaposa RF Remotes:

More Information

Gaposa QCTZ01Y Remote Control
   •  1 Channel Remote Control
   •  White
   •  Hand-held remote control.
   •  Can control numerous shade motors but they will operate simultaneously.

Gaposa QCTZ02Y Remote Control
   •  5 Channel Remote Control
   •  White
   •  Hand-held remote control.
   •  Provides ability to separate motors onto 5 unique channels of control.
   •  You may group shade motors onto the same channel for simultaneous control.

Gaposa QCTZ16SY Remote Control
   •  16 Channel Remote Control
   •  White
   •  Hand-held remote control.
   •  Advanced Digital Display Remote Control with Programmable Timers
   •  Provides ability to separate motors onto 16 unique channels of control.
   •  You may group shade motors onto the same channel for simultaneous control.

Gaposa QCZTAB Euro Style Surface Mount Wall Remote Control
   •  1 Channel Remote Control
   •  White
   •  Surface mount wall remote control.
   •  Removable from Wall Base
   •  Optional Trim Plates Sold Separately
   •  Can control numerous shade motors but they will operate simultaneously.

Gaposa QCZTAB4 Euro Style Surface Mount Wall Remote Control
   •  4 Channel Remote Control
   •  White
   •  Surface mount wall remote control.
   •  Removable from Wall Base
   •  Optional Trim Plates Sold Separately
   •  Provides ability to separate motors onto 4 unique channels of control.
   •  You may group shade motors onto the same channel for simultaneous control.

Gaposa QCTZ01D Surface Mount Wall Remote Control
   •  1 Channel Remote
   •  White
   •  Surface mount wall remote control.
   •  Can control numerous shade motors but they will operate simultaneously.

Gaposa QCTZ02D Surface Mount Wall Remote Control
   •  5 Channel Remote Control
   •  White
   •  Surface mount wall remote control.
   •  Provides ability to separate motors onto 5 unique channels of control.
   •  You may group shade motors onto the same channel for simultaneous control.

Gaposa QCTZDEK Decorator Wall Remote Control
   •  1 Channel Remote
   •  White
   •  Compatible with standard switch boxes and decorator tim plates.
   •  Can control numerous shade motors but they will operate simultaneously.

Gaposa QCTZDEK4 Decorator Wall Remote Control
   •  4 Channel Remote Control
   •  White
   •  Compatible with standard switch boxes and decorator tim plates.
   •  Provides ability to separate motors onto 4 unique channels of control.
   •  You may group shade motors onto the same channel for simultaneous control.

Gaposa RollApp Mobile Device Interface/Hub
   •  Android & iOS Compatible
   •  Controls up to 32 Devices per Hub
   •  Manual and Programmable Control
   •  Compatible with Amazon Alex and Google Assistant

All Gaposa remote controls allow you to program the limits of the shade. You do not have to point the remote at the motor it every time you want to control it. You can control the shades in your living room from your bedroom completely wirelessly. The Gaposa motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up or Full Down position. The advanced RF control technology offers the user simple individual or group control. All shades on the same channel will operate simultaneously. Each motor can be controlled by more than one remote control so you can have dedicated room controls and master controls for the whole home.

QCTZ01Y

QCTZ02Y

QCTZ16SY

QCZTAB

QCZTAB4

QCTZ01D

QCTZ02D

QCTZDEK

QCTZDEK4

RollApp

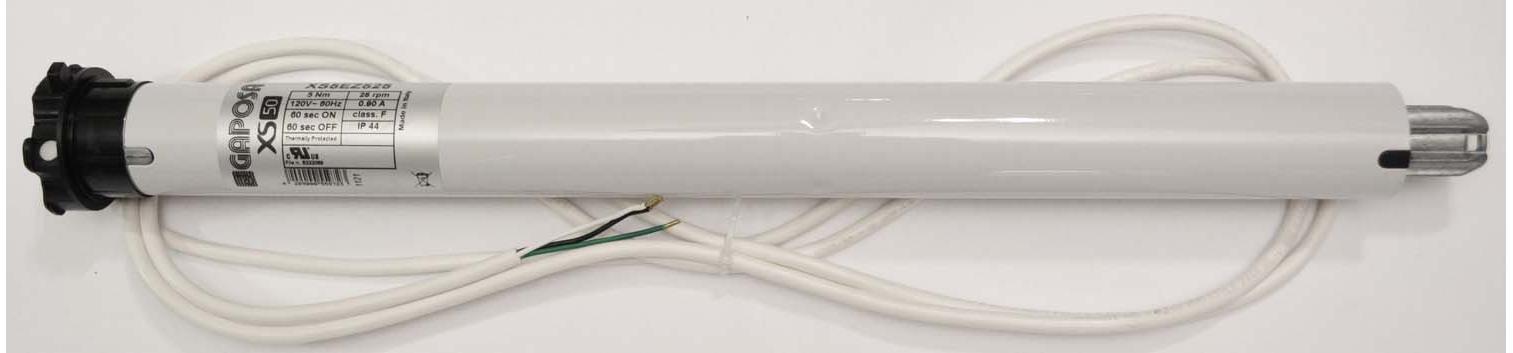

The Gaposa XS50 series Super Sileos XS50-AC5025 is a quiet 120VAC roller shade motor. Gaposa XS Super Sileos motors are engineered with superior noise reduction technology and are barely heard. This heavy duty motor is designed for tubes as small as 2" in diameter and does not have any practical limits with respect to it use with roller shades. Choose this motor where medium to very large shades need to be lifted and where operation must be at their quietest levels.

Radio Frequency: This Gaposa shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. The motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up, Full Down and to a customer specified preferred position. No need to hold the button down and wait for the shade to reach the desired position.

Multiple Controls: The shade motor is controlled via Gaposa's advanced RF technology which offers the user simple individual or group control. Each motor can be controlled by more than one remote control. You can use one remote for local room based control and another remote for whole home control. Need more advanced controls? No problem, Gaposa has the RollApp Android/iOS mobile device interface that provides manual and scheduled timer based control. Need integration with your home automation system? No Problem, Gaposa has the LinkIt RS232 control and QCTZ36SDU Dry Contact interface for integration with Home Automation systems.

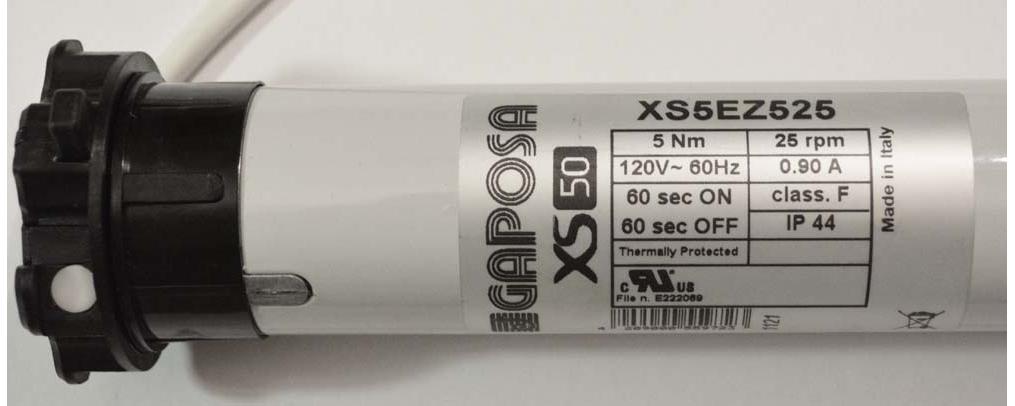

Gaposa XS50-AC5025 120VAC Roller Shade Motor Specifications
   •  XS50 Series - Super Sileos - Ultra Quiet
   •  RF Control Technology: 434.15MHz
   •  Nominal Motor Size: 45mm
   •  Operating Voltage: 120VAC
   •  Normal Current Draw: 0.9A
   •  Torque: 5.0Nm
   •  Lift Capacity - Not Including Tube Weight
        -  2" Tube: 44.2lb
        -  2.5" Tube: 35.4lb
        -  3.25" Tube: 27.2lb
   •  Motor Speed: 25 RPM (Not Adjustable)
   •  Ultra Quiet Operation: < 40 dBa (Not a Specification)
   •  Soft Stop: NO
   •  3 Programmable Stops (Open/Closed/Intermediate)
   •  Removable Power Cord - 8' Foot Open End (No Plug)
   •  Star Head Motor - Compatible with Somfy and ZMC Brackets
   •  Requirements for use - Not Included
        -  Motor Crown and Drive (Tube Adapter)
        -  Gaposa RF Remote
        -  2.5" or 3.25" Rollease Shade Tube
        -  2.5" or 3.25" Idler/End Plug
        -  Somfy or ZMC Shade Brackets
   •  Dimensions
        -  Overall: 21.625" L x 2.36" Dia.
   •  Weight: App. 4.4lb
   •  Warranty: 5 years
   •  Made in Italy
   •  Includes:
        - Motor
   •  Gaposa Part#: XS5EZ525
   •  AVO Part#: XS50-AC5025

Recommended Tip to Tip Deductions
1.75" - Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler

Tip to Tip Measurement: This is the measurement used for shades mounted within a window frame or within framed constraints and effectively the measurement from the outside edge of the brackets in a shade system.

Minimum Shade Width
29" Tip to Tip - Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler
27.25" Tube Length - Using 2.5" Rollease Tube, ZMC RS-711 Idler Bracket, ZMC RS-701 Motor Bracket and ZMC RS-884 idler

Maximum Shade Width
144" Tip to Tip - Using 2.5" Rollease Tube & ZMC Components
No Practical Limit - Using 3.25" Rollease Tube - Consider Weight

Maximum Width limitations are guidelines to minimize tube deflection and are not always a reflection of lifting capacity. The shade fabricator calculator below should be used to determine a system's limitations.

Rollease Shade Tube Specifications

Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

Roller Shade Tubes and Hem Bars are Sold Separately
• Rollease Roller Shade Tubes - Product Link
• Rollease Internal Bar and External Hem Bars - Product Link
