Description
The Gaposa XS30 series Super Sileos XS30-Li2026 is perhaps one of the more versatile, quiet and small shade motors on the market. Gaposa XS Super Sileos motors are engineered with superior noise reduction technology and are barely heard. This shade motor features a long life built-in lithium-ion battery. Say good bye to expensive external batteries. Lithium-ion battery technology is mature and has moved into motorized shade. This is now the default option for retrofit installations where wiring a power source is not possible. The built-in lithium battery is expected to provide approximately 500 cycles of operation (depends on shade size) before needing a charge. That means you'll only need to plug in the optional external battery charger once a year or so.
The compact, low profile shade motor can be used in 1.25", 1.5" and 2" Rollease tubes and with its 2Nm torque can be used in shades as wide as 120". Choose this motor where small and large shades need to be lifted and where operation must be at their quietest levels.
Radio Frequency: This Gaposa shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact, you can control the shades in your living room from your bedroom completely wirelessly. The motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up, Full Down and to a customer specified preferred position. No need to hold the button down and wait for the shade to reach the desired position.
Multiple Controls: The shade motor is controlled via Gaposa's advanced RF technology which offers the user simple individual or group control. Each motor can be controlled by more than one remote control. You can use one remote for local room based control and another remote for whole home control. Need more advanced controls? No problem, Gaposa has the RollApp Android/iOS mobile device interface that provides manual and scheduled timer based control. Need integration with your home automation system? No Problem, Gaposa has the LinkIt RS232 control and QCTZ36SDU Dry Contact interface for integration with Home Automation systems.
Soft Stop: The shade motor reduces speed as it nears a programmed stopping point to softly stop your shade.
Retrofit Considerations
This motor can be retrofitted to existing Rollease Chain/Clutch driven shades. By default the this motors is compatible with Rollease R-Series components and typically does not take any more space than the chain/clutch mechanism.

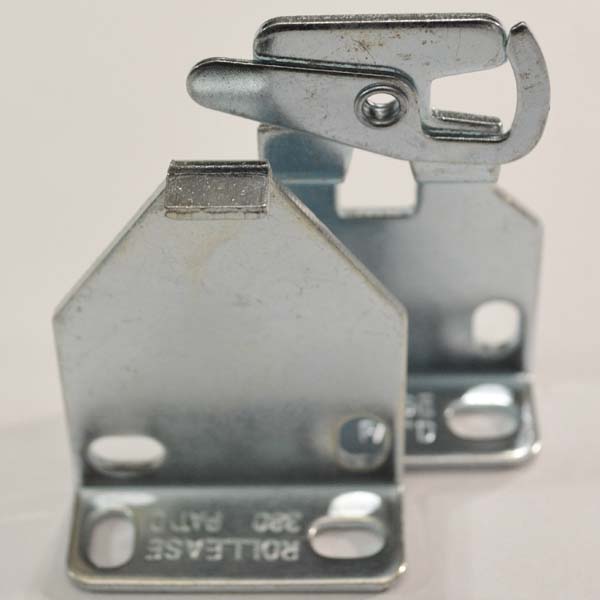

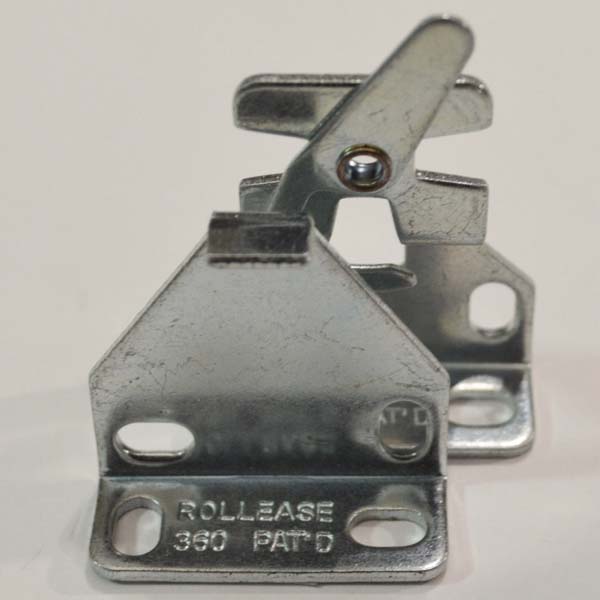

IF you have a Rollease R3/R8 Clutch/Chain driven roller shade on a 1.25" Rollease Tube or 1.5" Rollease Tube, all you need are the motor components. Simply pull out the clutch and insert the motor. The existing Rollease R Series RB3xx Brackets brackets are compatible.
IF you have a Rollease R16 Clutch/chain driven roller shade on a 1.5" Rollease Tube. or 2" Rollease Shade Tube, you will need the motor components plus new brackets. Simply pull out the clutch, insert the motor and replace your Rollease R Series RB5xx Brackets with the Rollease R Series RB3xx Brackets.

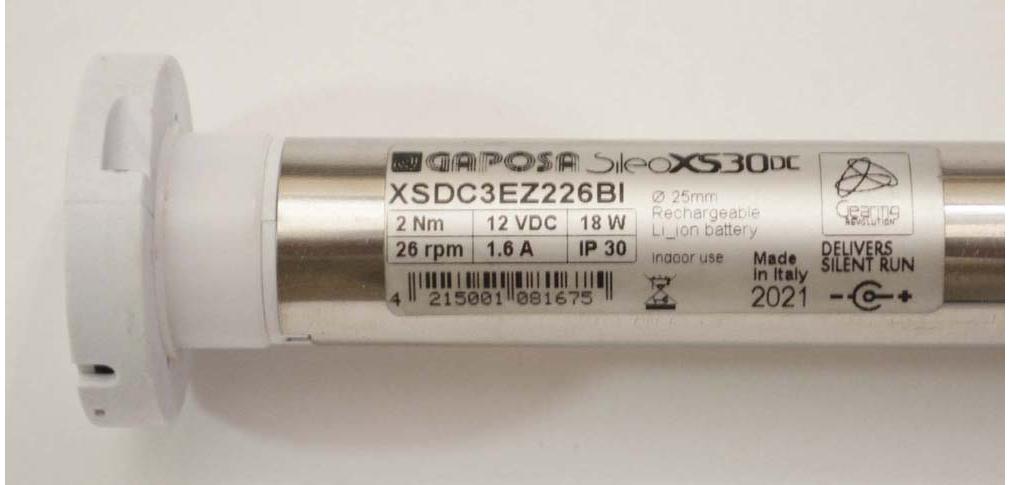

Gaposa XS30-Li2026 Li-ion Roller Shade Motor Specifications
• XS30 Series - Super Sileos - Ultra Quiet
• No external power source required (Except for Charging)
• Built-in 12v Rechargeable Lithium-ion Battery
• RF Control Technology: 434.15MHz
• Nominal Motor Size: 25mm
• Torque: 2.0Nm
• Lift Capacity - Not Including Tube Weight
- 1.25" Tube: 28.32lb
- 1.5" Tube: 23.6lb
- 2" Tube: 17.7lb
• Motor Speed: 26 RPM (Not Adjustable)
• Ultra Quiet Operation: <40 dBa (Not a Specification)
• Soft Stop: Speed is reduced when the shade comes to a stop
• 3 Programmable Stops (Open/Closed/Intermediate)
• Low Battery Indicator: None
• Built-in Charging Port

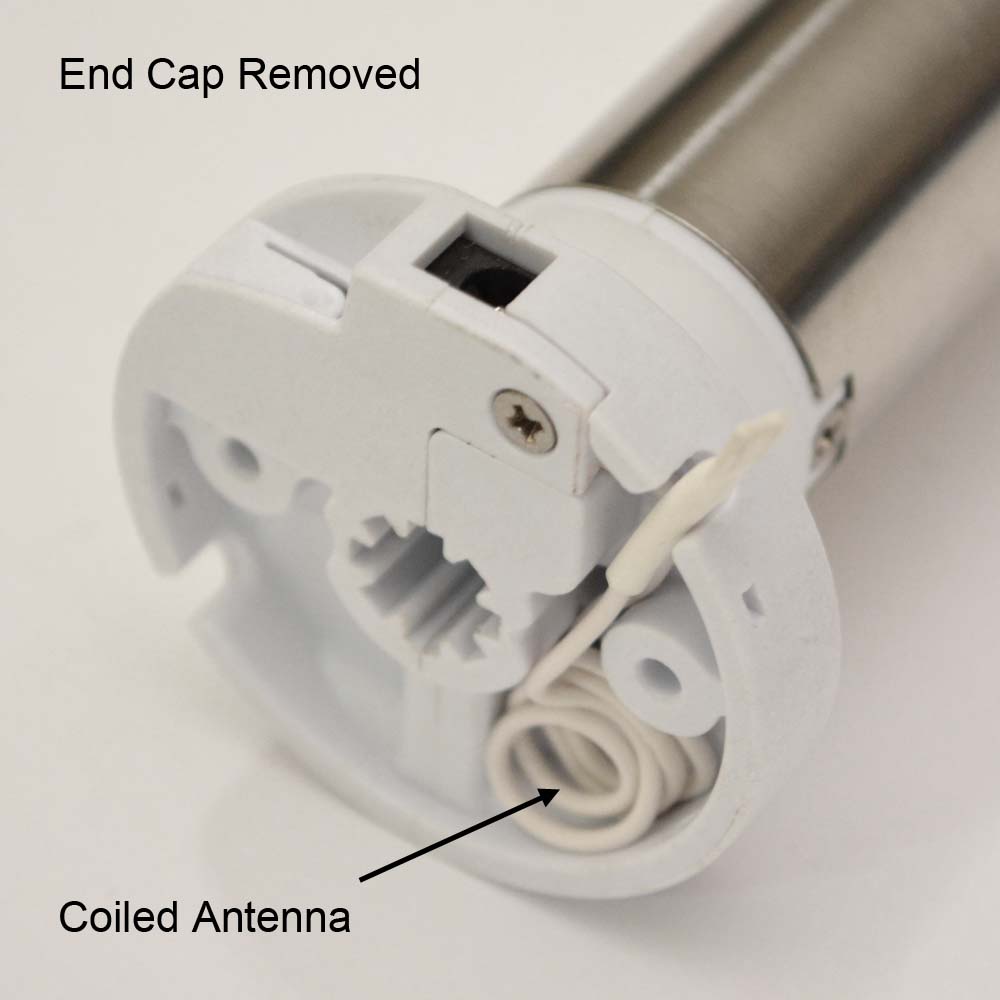

• Stowable Attached Antenna: 7"
• Requirements for use - Not Included
- Motor Crown and Drive (Tube Adapter)
- Gaposa RF Remote
- 1.25", 1.5" or 2" Rollease Shade Tube
- 1.25", 1.5" or 2" Idler/End Plug
- Rollease RB3xx Series Shade Brackets
• Dimensions
- Overall: 21.875" L x 1.75" Dia.
• Weight: App. 1.2lb
• Warranty: 3 years
• Made in Italy
• Includes:
- Motor
• Gaposa Part#: XSDC3EZ226B
• AVO Part#: XS30-Li2026
Note: This product can only ship via ground shipping methods due to the lithium battery.
Recommended Tip to Tip Deductions
1 1/8" - Using 1.25" Rollease Tube & Rollease R-Series Components
1 1/8" - Using 1.5" Rollease Tube & Rollease R-Series Components
1 1/4" - Using 2" Rollease Tube & Rollease R-Series Components
Tip to Tip Measurement: This is the measurement used for shades mounted within a window frame or within framed constraints and effectively the measurement from the outside edge of the brackets in a shade system.
Minimum Shade Width
23 7/8" Tip to Tip - Using 1.25" Rollease Tube & Rollease R-Series Components
24 1/4" Tip to Tip - Using 1.5" Rollease Tube & Rollease R-Series Components
24 5/8" Tip to Tip - Using 2" Rollease Tube & Rollease R-Series Components
Maximum Shade Width
64" Tip to Tip - Using 1.25" Rollease Tube & Rollease R-Series Components
96" Tip to Tip - Using 1.5" Rollease Tube & Rollease R-Series Components
120" Tip to Tip - Using 2" Rollease Tube & Rollease R-Series Components
Maximum Width limitations are guidelines to minimize tube deflection and are not always a reflection of lifting capacity. The shade fabricator calculator below should be used to determine a system's limitations.
Rollease Shade Tube Specifications
Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.
Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.
Roller Shade Tubes and Hem Bars are Sold Separately
• Rollease Roller Shade Tubes - Product Link
• Rollease Internal Bar and External Hem Bars - Product Link
