A-OK AM35-6/18-ES-E-Z RF & ZigBee* Li-ion Roller Shade Motor Kit with 2" x 48" Tube

This shade motor kit includes everything you need to build a motorized roller shade except the fabric.

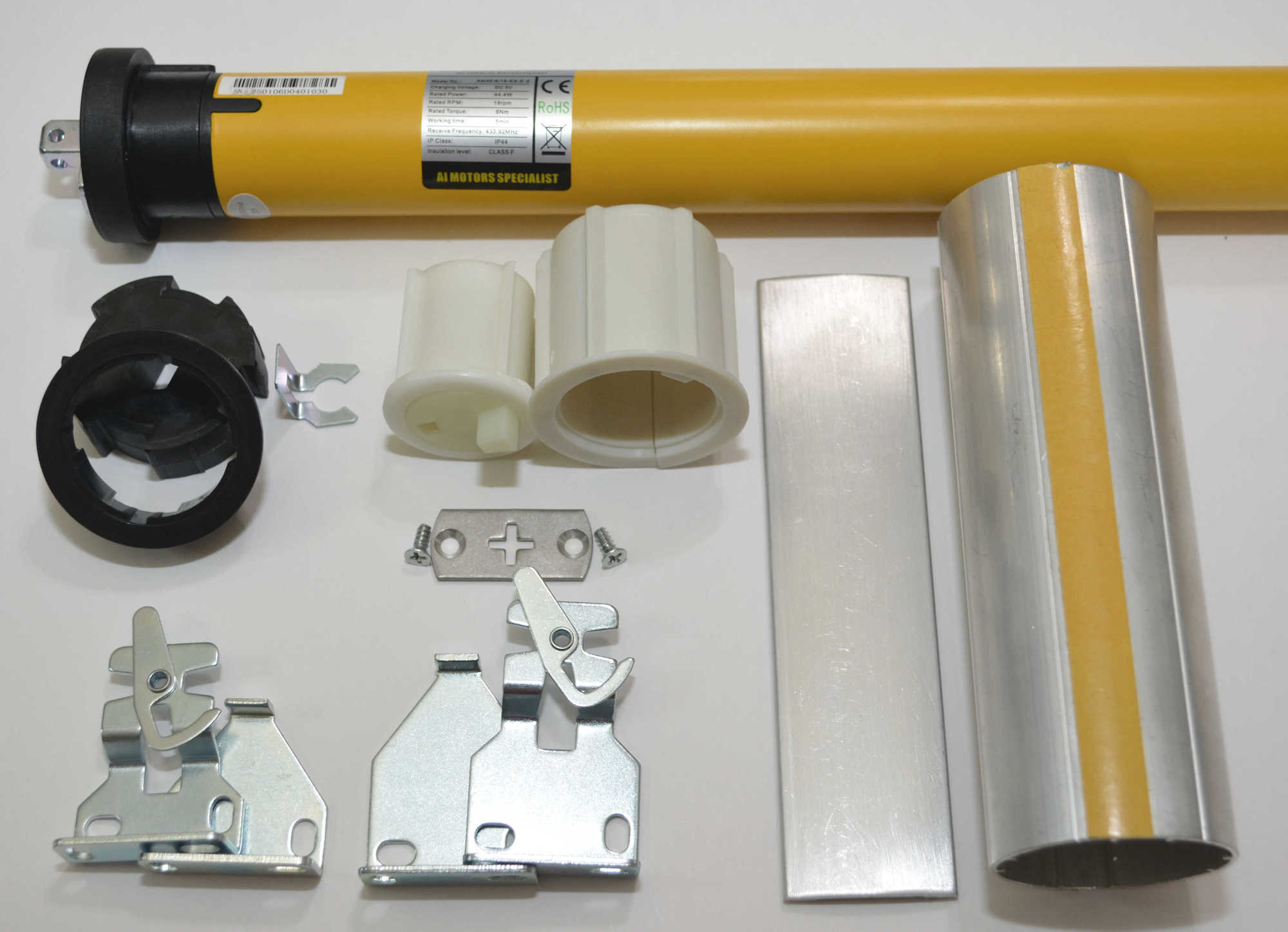

Included Items

   •  A-OK AM35-6/18-ES-E-Z Li-ion RF & ZigBee* Roller Shade Motor

   •  Rollease MTCRDR-35-2 Crown/Drive Tube adapters for 2" Rollease Tubes

   •  Somfy 9012258 R-Series Motor Head Bracket Adapter

   •  Rollease RB360 1.5" Projection Roller Shade Brackets *
        -  Supports Roll Diameters up to 2.75"

   •  Rollease RB380 2" Projection Roller Shade Brackets *
        -  Supports Roll Diameters up to 3.65"

   •  Rollease REP53 Idler/End Plug

   •  Rollease RA2 1.5" to 2" Tube Adapter

   •  Rollease RTEA5T - 2" x 48" ( +/- 1/4") Shade Tube w/Tape Applied
        -  Optional: FREE custom cut lengths cut to an accuracy of 1/16" +/- 1/32.

   •  Rollease RCBIHB - 1.5" x 48" ( +/- 1/4") Internal Hem Bar
        -  Optional: FREE custom cut lengths cut to an accuracy of 1/16" +/- 1/32.

Information and Tips

Recommended Tip to Tip Deduction = 1 3/8"
        -  Using Included Motor, Brackets, and End Plug

Tip to Tip is defined as the space that entire assembly (tubes, brackets, drives, idler etc.) needs to fit. This type of measurement is most often used for shades mounted within framed constraints.

Minimum Shade Width = 26.5" Tip to Tip
        -  Using Included Motor, Brackets, and End Plug

Maximum Shade Width = App. 120" Tip to Tip
        -  Maximum Width limitation is due to tube deflection not lifting capacity.

The use of the internal hem bar requires a material formed pocket at the bottom of the shade. The hem bar pocket is typically formed by stitching or fusing the material. Alternative methods like double stick tape and adhesives can be used with some experimentation.

The motor and end plug slide into the tube without the use of tools. The included roller shade tube features double stick tape to securely attach your roller shade material. We recommend cutting the shade material height so a minimum of 1.5" extra wraps of material is left on the shade tube when the shade is fully down. This prevents the material from directly pulling on the tape.

* Projection Distance is the distance from the mounting surface to the center of the tube. You would need to shim the brackets or use larger projection brackets if half the roll diameter is larger than the projection distance of the brackets. If you do not know what your roll diameter is you can calculate the roll diameter using the shade calculator below.

Are you using the correct tube for the shade width and height that you are fabricating? The Shade Fabricator Calculator below will predict tube deflection (and more) based on tube size, material weight, width and height. Tube deflection is bending of the tube which will predict how flat your shade will hang and whether or not ripples in the material might be present.

Shade Fabricator Calculator - (Excel Spreadsheet) - Calculates Roll Diameter, Shade Weight, Tube Deflection Etc.

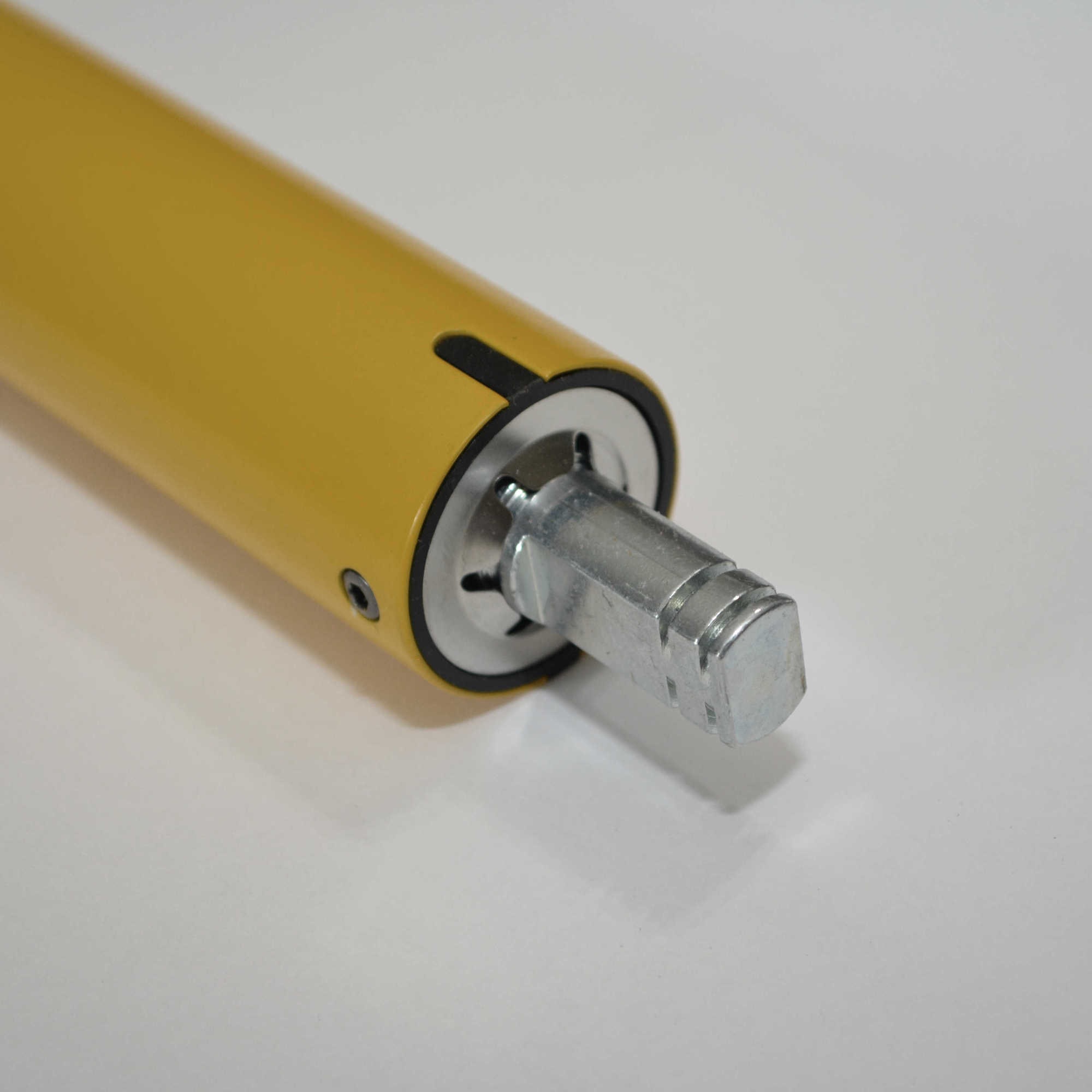

About the Motor

The A-OK AM35-6/18-ES-E-Z is a RF & ZigBee lithium-ion battery powered roller shade motor. Say good bye to expensive external batteries. Lithium-ion battery technology is mature and has moved into motorized shades. This is now the default option for retrofit installations where wiring to a power source is not possible. The built-in lithium battery is expected to provide approximately 180 cycles of operation (depends on shade size) before needing a charge. That means you'll only need to plug in the optional external battery charger twice a year or so.

This motor can be used with standard A-OK RF remotes and controls. The ZigBee feature of this motor does not need to be used.

RF Control Features - The A-OK AM35 shade motor is Radio Frequency based so you don't have to point the remote at it every time you want to control it. In fact you can control the shades in your living room from your bedroom completely wirelessly. The A-OK motor stores the limits set by the remote controls. With the momentary press of a button you can command the shade to go to the Full up or Full Down position. Need more programmable stopping positions? Not a problem. The A-OK motors can be programmed for up 6 stopping positions (4 intermediate). The advanced RF control technology offers the user simple individual or group control using basic remote controls as well as Android/iOS mobile device control via a seperate hub/interface. Each motor can be controlled by more than one remote control so you can have dedicated room controls and master controls for the whole home.

Note: The remote controls do not have individual buttons to command control of the intermediate positions. When you press the up or down button the shade will move to the next programmed stopping point. You can command the shade to bypass the intermediate stopping points by double pressing the Up or Down buttons with a 1 second pause between presses.

ZigBee Features - ZigBee provides two way comminucation and creates a mesh network potentially increasing the RF range of Zigbee devices. The ZigBee feature of this motor requires the use of a Tuya ZigBee Hub!! This motor can be controlled by Amazon Alexa ZigBee enabled Echo devices but not directly. The Tuya ZigBee hub is required!! Note: The Echo Dot does not have ZigBee. The Tuya ZigBee hub works with both the Smartlife and Tuya-Smartlife apps to provide mobile device control and scheduled control.

A-OK A-OK AM35-6/18-ES-E-Z Li-ion RF & ZigBee Roller Shade Motor Specifications
   •  No external power source required (Except for Charging)
   •  Built-in 5v Rechargeable Lithium-ion Battery
   •  Charging via USB-C (5V Phone Charger)
   •  Torque: 6Nm
   •  Lift Capacity - Not Including Tube Weight
        -  2" Tube: 53.11lb *
        -  2.5" Tube: 42.48lb *
   •  Motor Speed: 18 RPM
   •  Quiet Operation : 40dBa
   •  Soft Stop: Speed is reduced when the shade comes to a stop
   •  6 Programmable Stops (4 Intermediate)
   •  Compatible with A-OK RF Control Technology (433.92 MHz)
   •  Compatible with Tuya ZigBee Hub
   •  Audible Beep indicates when battery requires charging
   •  Compatible Tubes:
        -  Rollease RTEA5T 2" Tubes
   •  Requirements for use - Not Included
        -  A-OK Charger
        -  A-OK RF Remote
   •  Dimensions
        -  Overall: 24" L x 1.87" D - Insertion Dia.: 1.38"
   •  Weight: App. 3.1lb
   •  Warranty 5 years

* The stated torque capabilities are using the 10mm stud, heavy duty idler and brackets. If you need to use the full torque of this motor please refer to the AM35-6/18-ES-E-Z-HD kits. The HD kits include the heavy duty brackets and idler. The torque of this motor should be derated to 4Nm (35.4lb on 2" tube) when using the lighter duty components in this kit. This is more than enough for a 120"W x 96"H shade using average weight material (12oz/sqyd) and 120" W x 168"H using light weight material (6oz/sqyd). Neither of which are even close to the true lifting capacity of this motor. The limitations are due to deflection of the 2" tube under the associated material weights.

Note: This product can only ship via ground shipping methods due to the lithium battery.

A-OK AM35-6/18-ES-E-Z Shade Motor Programming Instructions

Rollease Shade Tube Specifications
