AVO 24VD170W - 24VDC 1.7A White DC Adapter / Power Supply

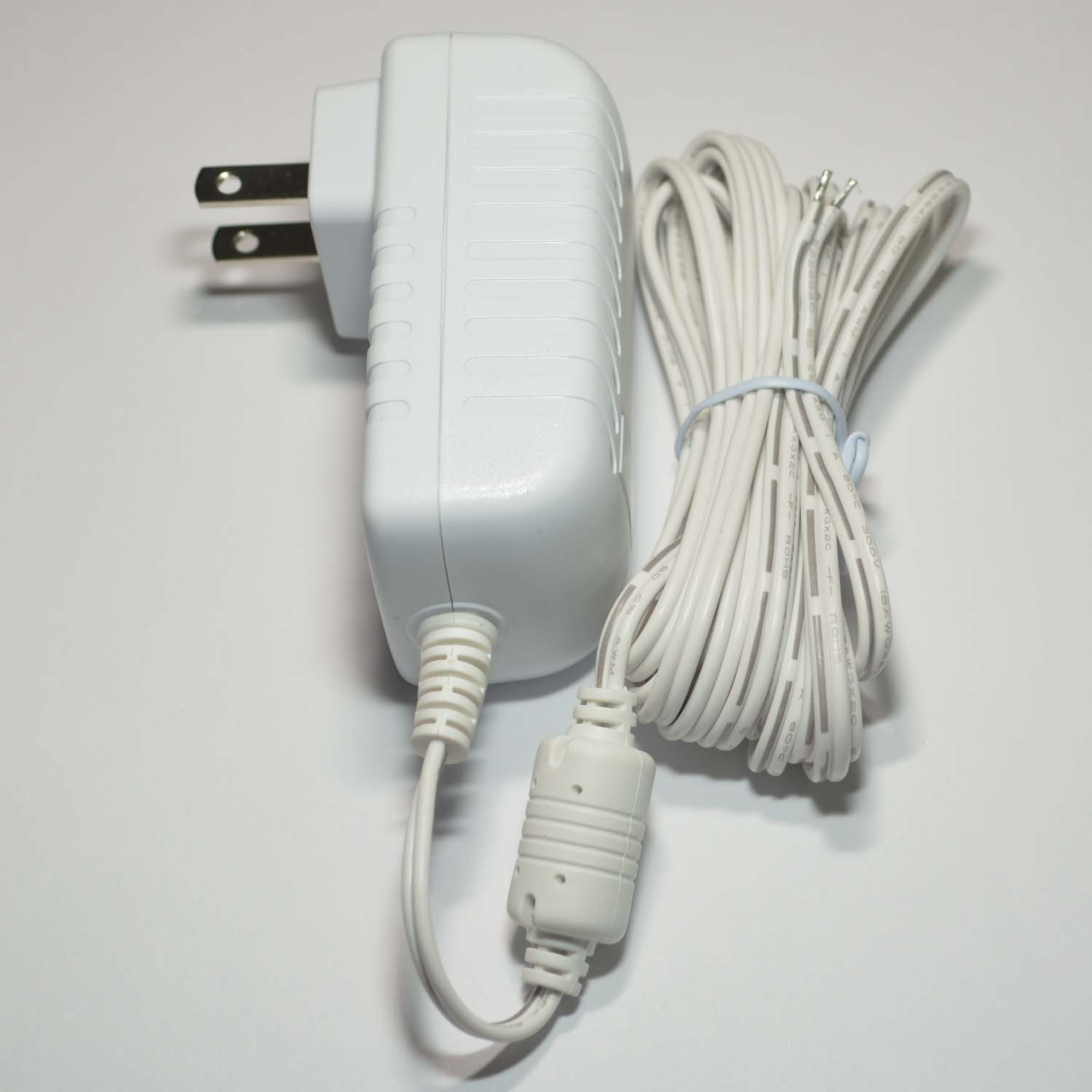

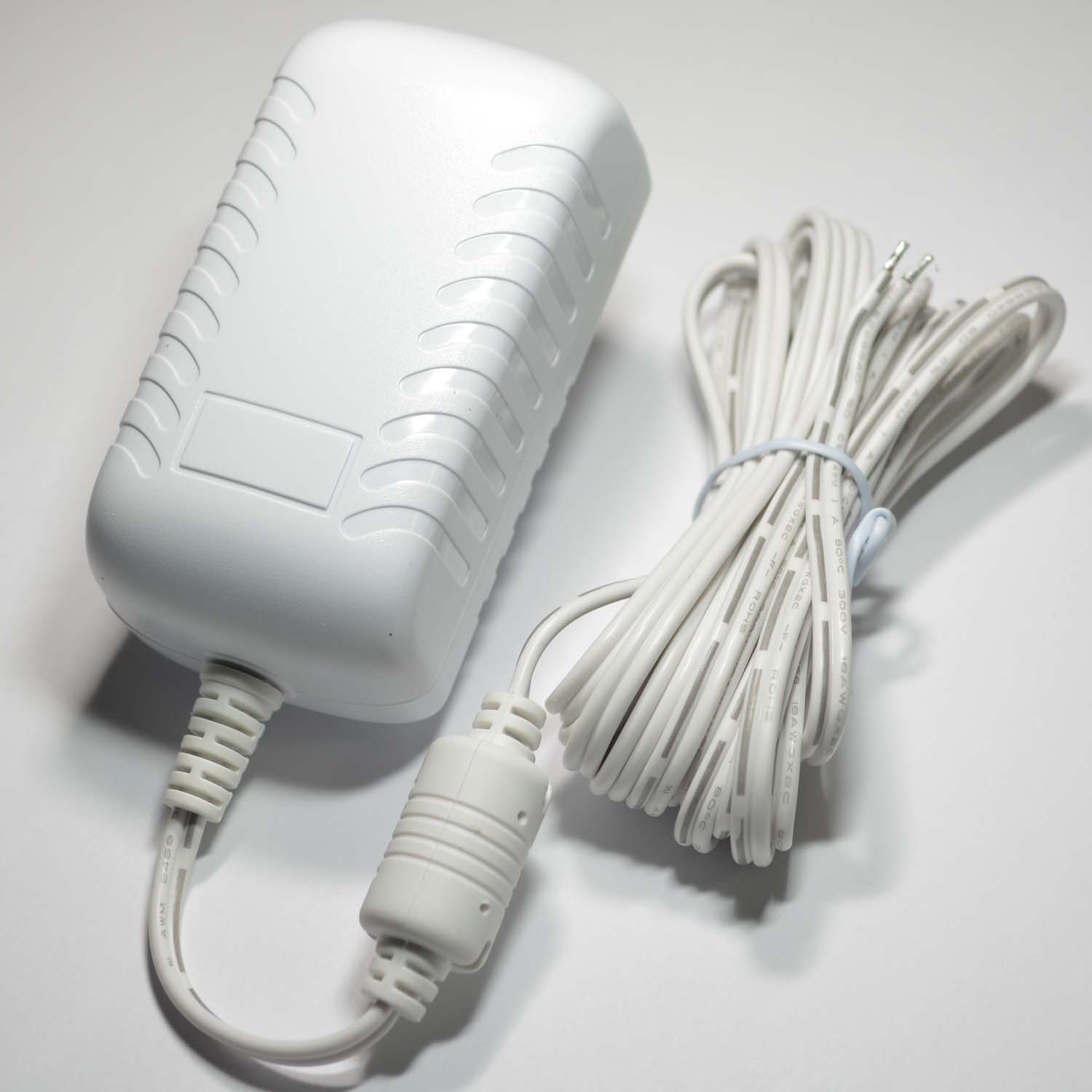

The AVO 24VD170W Wall Plug DC adapter is a regulated switching power supply with 9.8' of connected 18AWG leads. This white power supply is designed to blend into the environment more easily. The very compact design, as well as its color, makes it perfectly suitable for office or residential decors. This small power supply has the ability to power up to 2 moderately sized 24VDC Somfy Sonesse 30 ST30 Motorized Shades at one time.

AVO 24VD170W 24VDC 1.7A Wall Plug Power Adapter Specifications:
   •  24VDC 1.7A Regulated Switch Mode Wall Plug Adapter
   •  Color: White
   •  Input Voltage: 100-240VAC 50/60Hz at 1Amp (800ma) Full Load
   •  Output Voltage 24 Volts DC +/- 5% at 0 to 1.7Amp output
   •  Level VI Efficiency: 86%
   •  Max Continuous Output Current 1.7A (1700ma)
   •  Max Peak Output Current 1.9A (1900ma)
   •  3m (9.8') Tinned Copper 18 AWG Lead w/ Ferrite Noise Filter
   •  UL Listed Class II Power Supply
   •  Compact Size - Perfect for Portability & Aesthetics
   •  2 Prong Non-Polarized Plug
   •  2 Power Supplies can be plugged into 1 Duplex Outlet
   •  Built-In Short Circuit Protect w/ Auto Recovery
   •  Built-In Over Load Protect w/ Auto Recovery
   •  Operating Temperature: 32 - 104 Degrees F (0-40 Degrees C)
   •  Invidiually packed in white cardboard box
   •  Dimensions: 1.71" W x 3.27" H x 1.6" D (Not Including Cord or Plug)
   •  Weight: 0.46lb (7.3oz) With 3m (9.8') Lead
   •  Warranty: 2 Year - AV Outlet Facilitated
   •  Powers up to 2 - moderately sized Somfy ST30 Motorized Shades

OPTIONAL ITEMS: Solutions for using this power supply with your existing 24VDC powered window treatments.

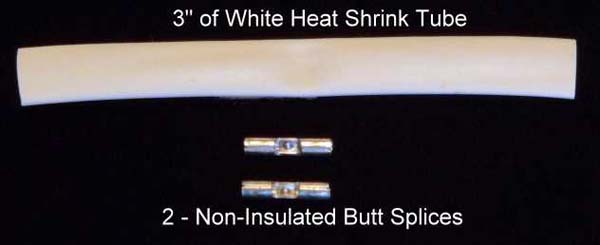

   •  Butt Splice Kit: Includes- 2 non insulated butt splices that accept 22 to 18 AWG wires and 3" of 1/4" 3:1 white heat shrink to cover the termination when crimped. Use this kit if you have your own leads from an old battery wand or other connector. Only 1 Kit need for connecting 1 to 3 Motors.

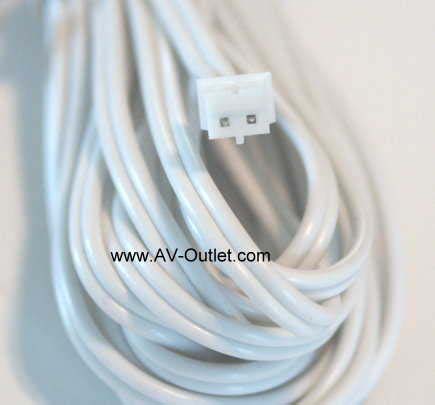

   •  ST30 Lead: Separate 10' Feet of 24 AWG White Lead w/ ST30 Connector. You can cut to length and butt splice on your own.

Instructions to Perform - Butt Splice Termination

A typical Somfy ST30 motorized shade 30" W x 65" H on a 1.5" tube uses 350ma of current and a shade 86" W x 73" H on a 1.5" tube typically requires 600ma of current.

* Our stated current draws are for use as estimates ONLY and are not specifications. Somfy states the ST30 Motors consume 750ma (0.75A) per motor. Current draw will depend on motor used, type of window treatment (roller shade, cellular, roman etc), size of tube, size and weight of the shade. To be certain of your needs you should test the current draw of your particular window treatment. Size your power supplies accordingly.

* If you connect multiple shades to one transformer they must be wired in parallel. If you do not understand the difference between series and parallel networks than you should not attempt to wire multiple shades to one power supply.
