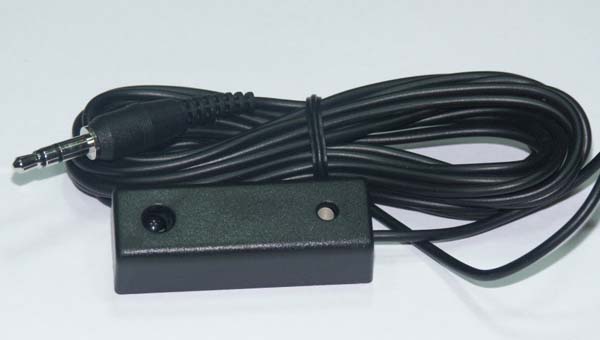

IRR-SM Surface Mount IR Network Receiver

The IRR-SM is a surface style IR Receiver designed for use with the all 12V IR Control Networks. This product is used to receive IR signals remotely so they can be transferred to the IR connecting block and then distributed to the components via IR Flashers or IR Emitters. Ideal for mounting in cabinets, doors, wall plates, speakers etc. Works with 12V IR connecting blocks that have: IR (or S Signal), V+ and G .

The Talk Back LED provides feedback for the status of the IR network. When the Talk Back LED is illuminated IR signals are being processed.

Works with all IR connecting blocks that have: IR (or S Signal), V+ and G Connections including Xantech, Niles, Russound, Direct Connect Etc. (12VDC powered).

IRR-SM Panel Mount IR Receiver Specifications
   •  Surface Mount IR Receiver
   •  Plasma & CFL Friendly
   •  Designed for 12V IR Control Products
   •  IR Feedback LED confirms reception of signal
   •  3.5mm Stereo Plug Connection - 10' of lead length
   •  up to 40' Reception Range @ 38 KHz
   •  up to 25' Reception Range @ 56 KHz
   •  34 KHz to 60 KHz Remote Frequency Bandwidth (Receive)
   •  38 KHz to 56 KHz Remote Frequency Bandwidth (Transmit)
   •  Can be connected in parallel with up to 3 total IR Receivers
   •  Works with nearly all remote controls
   •  Mounts with included double stick tape
   •  Dimensions: 1.75" L x 0.60" W x 0.50" D

View the IRR-SM Surface Mount IR Receiver Instructions
