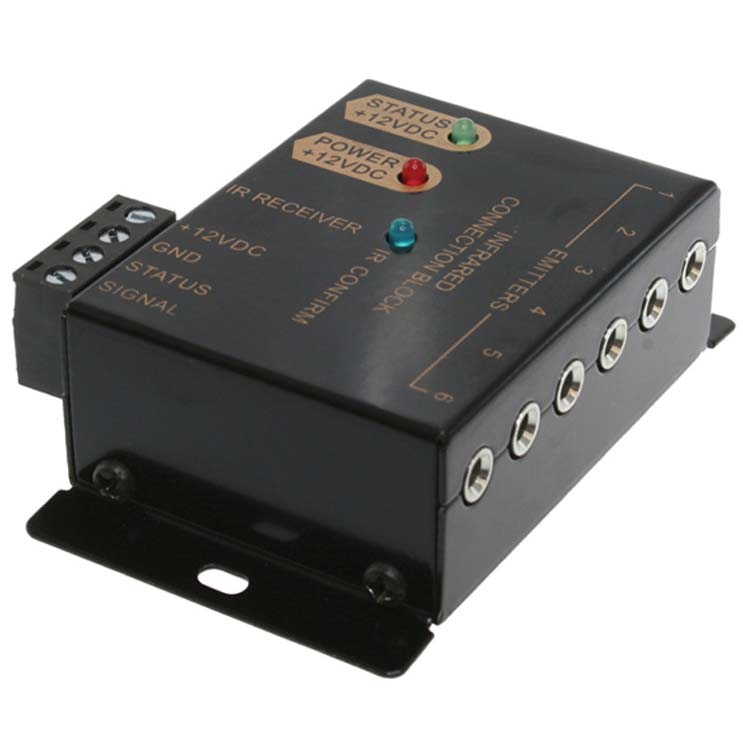

IRCB6 - Amplified IR Connecting Block, 6 Port w/ Power Supply

The Direct Connect IRCB6 amplified IR connecting block is the brains behind an IR Remote Control network. The IR connecting block enables the user to remotely control DVD Players, AV Receivers, Projectors, etc from a distributed IR control system. The IRCB6 usually is placed near the equipment rack. IR emitters are connected the IRCB6 and the equipment to be controlled. The IR Receiver is remotely located at a convenient control point up to 1000 feet away from the equipment rack and connected to the IRCB6 via CAT5 or other 3 conductor wire. The IRCB6 features 6 emitter output connections via 3.5mm plugs and two IR Receiver inputs (one via screw terminals and one via 3.5mm plug).  The 6 emitter ports can be connected to single or dual flasher emitters enabling control of up to 12 pieces of equipment in a remotely located rack. The removable large screw terminal allows up to 3 IR Receiver to be connected (Larger power supply may be required to connect additional receivers).

Direct Connect IRCB6 IR Amplifying Connecting Block Specifications
   •  The Brains of the IR Network - Everything connects to this block
   •  Six IR Flasher/Emitter Ports: 3.5mm Male
   •  12VDC Power Input Connector: 2.1mm Female
   •  IR Receiver Connection via 3.5mm Plug or Screw Connections
   •  Removable Connector Screw Terminal Connector for IR Receivers
   •  Compatible with ALL IR Codes
   •  Compatible with various MFG IR networking components
   •  Dimensions: 1 7/8" W x 3.25" H x 7/8" Thk
   •  1 Year Warranty
   •  Includes:
          - IRCB6 Connecting Block
          - Mounting Screws
          - Power Supply 12VDC 0.2A
