Description

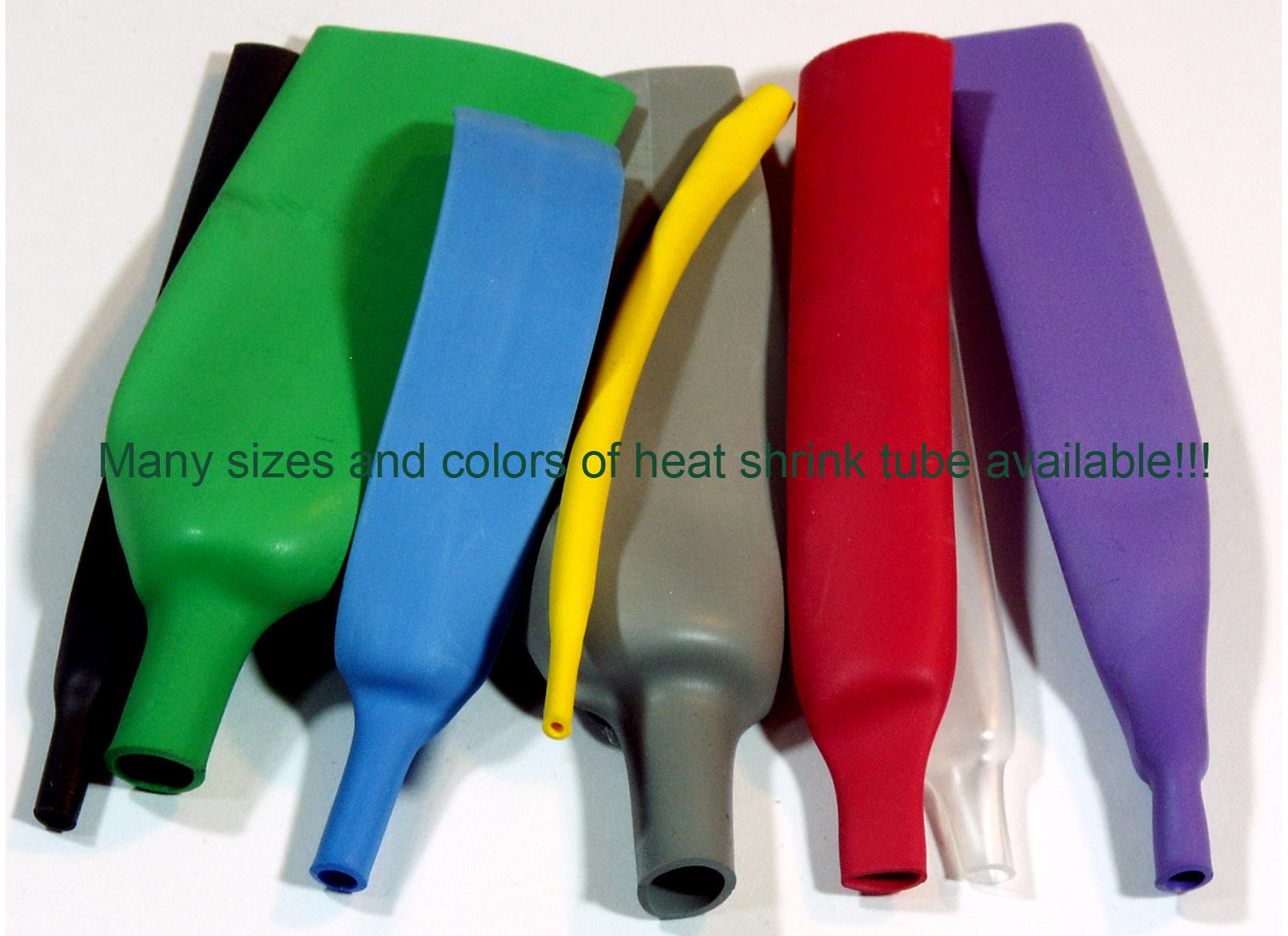

TechFlex 3:1 Heat Shrink Tubing shrinks to App. 1/3 of its original size. The high shrink ratio of this 3:1 tubing ensures that the tubing will slip over large connectors or plugs and still provide a tight, professional seal. Once shrunk, the tubing will hold its reduced state even in elevated temperatures. The wide range of available colors and diameters makes TechFlex Heat Shrink Tubing a perfect solution for many applications.
TechFlex H3N1.00/100 - 1" 3:1 Heat Shrink Tubing Specifications:
• Available Colors: Black, Red, White, Orange, Green, Gray
• Available Colors: Purple, Clear, Blue, Yellow, Brown
• Nominal Size: 1"
• Material: Polyolefin
• Shrink Ratio:3:1
• Shrink Temperature: 194 Deg. F
• Pre-shrunk Diameter: 24mm - 0.944"
• Shrunk Diameter: 8mm - 0.315"
• Pre-shrunk Wall Thickness: 0.014 to 0.016"
• Shrunk Wall Thickness: Depends on Final Diameter
• Weight: 0.0286lb per foot App.
• Mil Spec: Mil-I-23053/5
• Sold As: 100' Spool
