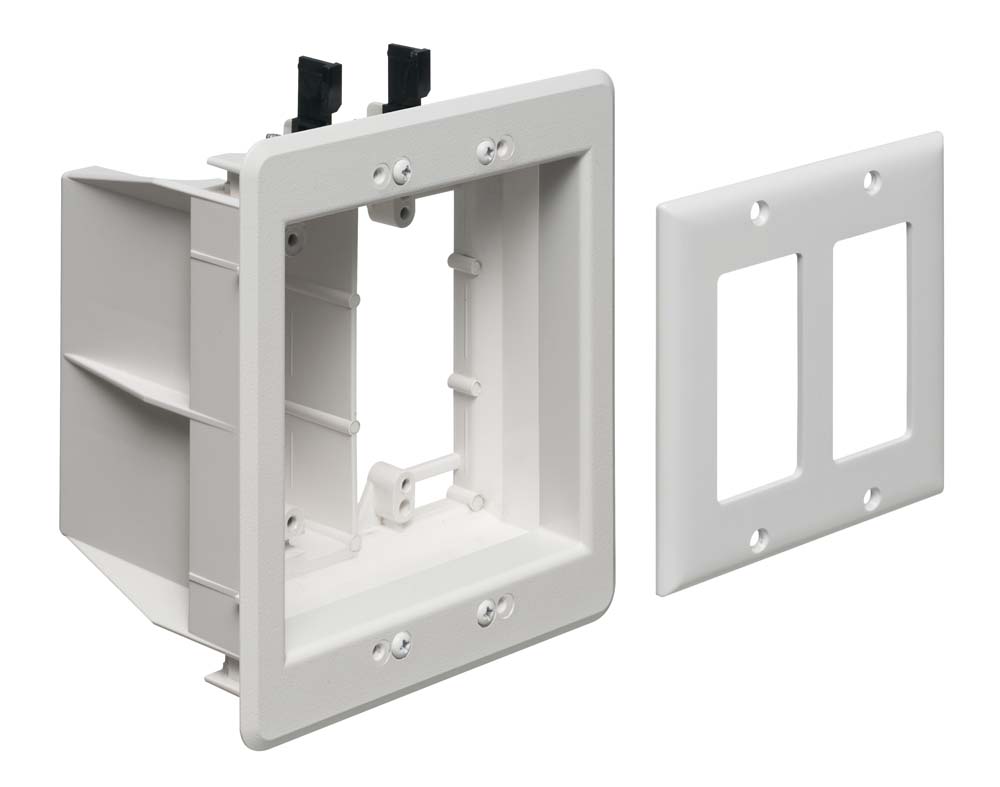

Arlington TVBU505 - Recessed 2 Gang Dual Voltage Box - White

Arlington Industries TVBU505 recessed Dual Voltage box is the perfect space saver where dual voltage wiring is needed in a retrofit application. The TVBU505 is the perfect space saver behind plasmas, LCD TV, or wherever you need to preserve space. The 2 gang recessed dual voltage box provide 1 isolated side to run a power outlet and a nice open side to as many low voltage AV wires you need. This box is for new construction and retrofit applications.

Arlington Industries TVBU505 Recessed Dual Voltage Box
   •  Color: White or Black
   •  UL / CSA Listed
   •  Dual Gang Recessed Box
   •  Power on one side and Low Voltage on the other side
   •  Retrofit or New Construction Applications
   •  Removable Front Flange
   •  Works with 2 x 4 Studs and 3/8" or Thicker Sheetrock
   •  Accepts Standard Wall Plates
   •  Impact Resistant Plastic results in less breakage on Job site
   •  Integrated NM Cable Holder and 1/2" Knockout
   •  Total Internal Depth: 3.75"
   •  Internal Depth to Plate: 2.25" - Power Side
   •  Internal Depth to Plate: Open - Low Voltage Side
   •  Side Wall Thickness - 0.105"
   •  Front Flange Thickness - 0.127"
   •  Panel Cut Out Dimensions:5.1"W x 5.65" H
   •  Overall Dimensions: 6.25" W x 6.875"H x 4.0" Depth
   •  Includes: Mounting Hardware and 2 Gang Decorator Trim Plate
