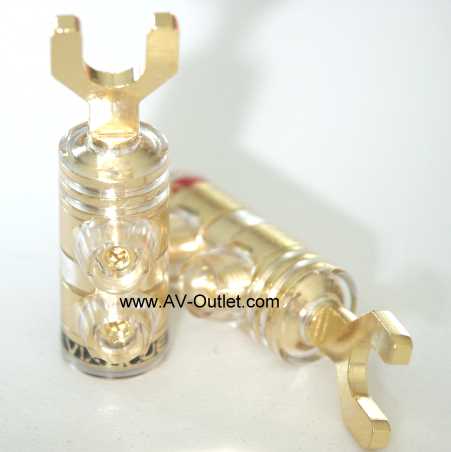

ViaBlue TS spades are screwed on to speaker jacks and thus establish constant firm contact between speaker cables and terminals. The ViaBlue TS Series was designed to provide a connector ideally suited for every possible connection and jack type. All TS connectors protect against short-circuiting with a transparent insulation bushing.
ViaBlue TS6 Spade Speaker Connector Specifications:
• 6mm (0.236") Gap Between Spade Prongs
• Super Thick 0.079" Construction wont bend easily and are angled perfectly
• Gold Plated - 81% Copper and 19% Brass Construction
• Durable clear insulating cover prevents shorting
• Dual 1.5mm Hex Head Set Screws for securing speaker wire
• Internal Diameter: 0.230" App.
- Accepts up to 6 AWG and easily 2 - 10 AWG Wires
• Internal Depth: 0.750" App.
• Includes: 2 Free Copper Crimp Sleeves See chart Below for Sizing
• Optional: Spare TS-Screws
• Optional: 1.5mm Precision Hex Key (We've tested several keys this one works best)
• Sold as a Pair (1 Red / 1 Black)
| Crimp Sleeve | Copper Tube | PVC Collar | Length | Fits Wires | ||||
| ID | OD | ID | OD | Copper | Overall | Max | Other | |
| 4mm2 | 0.109" | 0.125" | 0.186" | 0.217" | 0.710" | 1.030" | 12/1 | |
| 6mm2 | 0.135" | 0.155" | 0.230" | 0.275" | 0.710" | 1.036" | 10/1 | 14/2 |
| 10mm2 | 0.175" | 0.194" | 0.270" | 0.325" | 0.710" | 1.056" | 7/1 | 12/2 |
The final crimp dimension will depend on what type of crimp tool you will be using. Fancy tools are NOT required. We used a multipurpose crimper/stripper. These tools do vary in features from MFG to MFG. The feature you will be looking for will something like this tool picture. The goal is to achieve a half moon shape on one side of the crimped sleeve. This will allow you to maintain maximum contact area with the speaker connector. The other side of the crimp is not important as this will be contacted by the set screws in the speaker.
When using the crimp sleeve we recommend stripping off App. 1" of speaker wire insulation. Perform a test fit to make sure you have enough conductor present to fill the speaker connector and then crimp on the copper crimp sleeve. Finally, trim only enough conductor so that the crimp sleeve fits into the connector all the way. This way you have maximum contact area in the connector even if the crimp sleeve is a little short. The crimp sleeve can also be cut after crimping if they are too long.
