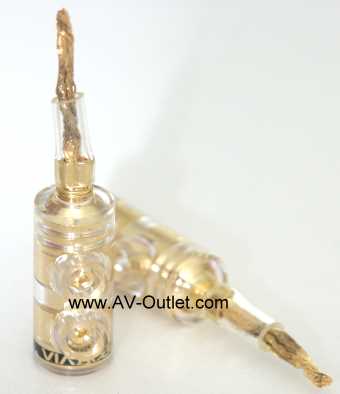

ViaBlue TS-Flex speaker connectors feature flexible pins are used for connecting speaker cables in tight spaces or where spring clip terminal are used. The flat gold plated OFC braid of the TS-Flex provide a large surface area to obtain maximum contact area with speaker terminals. The flexible flat braid gold plated copper braid will not oxidize and is App. 1" long. The flexible insulating tubing is also provided to protect against shorting of the non-inserted flexible braid portion and can also be removed. The ViaBlue TS Series speaker connectors are designed to provide a connector ideally suited for every possible connection and jack type. All TS connectors protect against short-circuiting with a transparent insulation bushing.
ViaBlue TS-Flex Pin Speaker Connector Specifications:
• Flex Pin is App. 1" Long
• The Removable Clear Flex Pin Insulation is 0.35" Long
• Gold Plated - 81% Copper and 19% Brass Construction
• Durable clear insulating cover prevents shorting
• Dual 1.5mm Hex Head Set Screws for securing speaker wire
• Internal Diameter: 0.230" App.
- Accepts up to 6 AWG and easily & 2 - 10 AWG Wires
• Internal Depth: 0.750" App.
• Includes: 4 Free Copper Crimp Sleeves See chart Below for Sizing

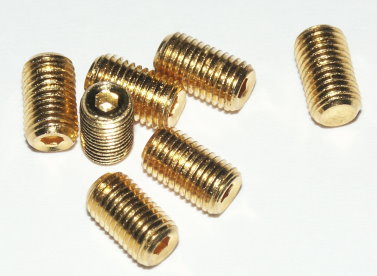

• Optional: Spare TS-Screws
• Optional: 1.5mm Precision Hex Key We've tested several keys this one works best)
• Sold as 2 Pairs (2 Red / 2 Black)

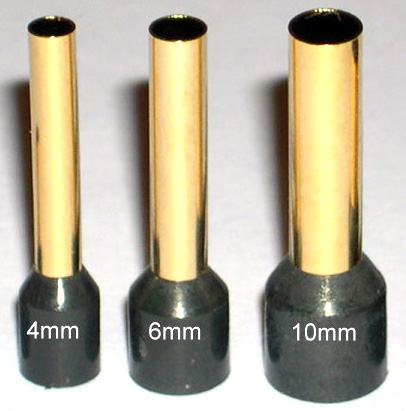

| Crimp Sleeve | Copper Tube | PVC Collar | Length | Fits Wires | ||||
| ID | OD | ID | OD | Copper | Overall | Max | Other | |
| 4mm2 | 0.109" | 0.125" | 0.186" | 0.217" | 0.710" | 1.030" | 12/1 | |
| 6mm2 | 0.135" | 0.155" | 0.230" | 0.275" | 0.710" | 1.036" | 10/1 | 14/2 |
| 10mm2 | 0.175" | 0.194" | 0.270" | 0.325" | 0.710" | 1.056" | 7/1 | 12/2 |
The final crimp dimension will depend on what type of crimp tool you will be using. Fancy tools are NOT required. We used a multipurpose crimper/stripper. These tools do vary in features from MFG to MFG. The feature you will be looking for will something like this tool picture. The goal is to achieve a half moon shape on one side of the crimped sleeve. This will allow you to maintain maximum contact area with the speaker connector. The other side of the crimp is not important as this will be contacted by the set screws in the speaker.
When using the crimp sleeve we recommend stripping off App. 1" of speaker wire insulation. Perform a test fit to make sure you have enough conductor present to fill the speaker connector and then crimp on the copper crimp sleeve. Finally, trim only enough conductor so that the crimp sleeve fits into the connector all the way. This way you have maximum contact area in the connector even if the crimp sleeve is a little short. The crimp sleeve can also be cut after crimping if they are too long.
