C5RJ45 - CAT 5E RJ45 Connector - Pack of 10

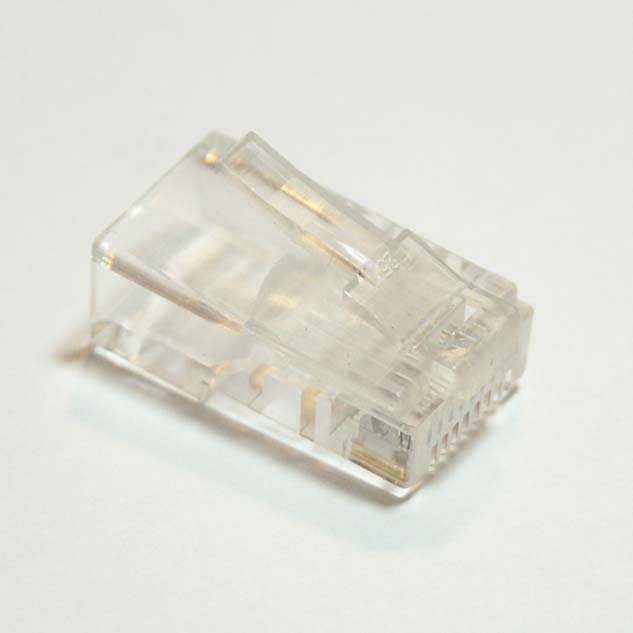

The C5RJ45EZ RJ45 (8P8C) ethernet cable connectors are designed for use with Category 5E solid 24 AWG cables.

C5RJ45-10, CAT-5E RJ45 Connector Specifications:
   •  RJ45 Connector for CAT 5, 24 AWG Solid Conductor Cable
   •  Gold Plated Contacts (50 micro inch)
   •  Housing: Thermoplastic, UL94V-0, GE141
   •  Current rating: 1.5 amps
   •  Voltage rating: 125 VAC
   •  Insulation resistance: 100 Mega Ohms
   •  Dielectric withstanding voltage: AC1000V50Hz-60HA/min
   •  Sold as a 10 Pack

Note: The diameter of CAT 5E and CAT 6 cables are different. CAT 5 cables use a 24AWG conductors and CAT 6 Cables use 23 AWG conductors. If you need RJ45 connectors for CAT 6 cable use part # C6RJ45EZ-10 which we have as an EZ crimp style.

See Wikipedia for Added Technical Info CAT-5E and CAT-6
