Arlington Ind. TVB613 - Recessed flat Panel Box - Black or White

Arlington TVB613 - Recessed flat Panel Box - Black or White

Product Code: TVB613

$15.75



Sold Per - Piece/Item

Stocked Item - Typ. Ships in 1 Biz Day (Info ?)

Description

Arlington Industries TVB613 recessed Plasma / Flat panel AV box box is the perfect space saver behind plasmas, LCD TV, or wherever you need to preserve space. The recessed outlet box allows for the power plug and AV Cable plugs to be set behind the surface of the sheetrock. The innovative design also allows for new construction or retrofit applications. The TVB613 features 4 gangs of usable space. The dual gang position has a removable divider that allows the use of low voltage on one side and power on the other. The other 2 single gang positions are for low voltage use only.

Arlington Industries TVB613 Recessed Flat Panel AV Box
   •  Color: Black or White
   •  UL / CSA Listed
   •  Dual Gang plus 2 Single Gang Recessed Box
   •  Dual Voltage - Power and Low Voltage use with included divider
   •  2 Single Gang Positions for Low Voltage Use
   •  Retrofit or New Construction Applications
   •  Accepts Standard 2 Gang Wall Plates and Single Gang Wall Plates
   •  Impact Resistant Plastic results in less breakage on Job site
   •  Removable Front Flange
   •  Integrated NM Cable Holder and 1/2" Knockout
   •  Works with 2 x 4 Studs and 1/2" or thicker sheetrock
   •  Fits in Std. Stud Spaces
   •  Total Internal Depth: 3.75"
   •  Internal Depth to 2 Gang Plate Position: 2.2"
   •  Internal Depth to Low Voltage Positions: 1.56"
   •  Side Wall Thickness - 0.130"
   •  Front Flange Thickness - 0.150"
   •  Panel Cut Out Dimensions -13"W x 5.6.25" H
   •  Overall Dimensions (w/ Front Flange - 17" W x 7"H x 4.1" Depth
   •  Includes: Mounting Hardware

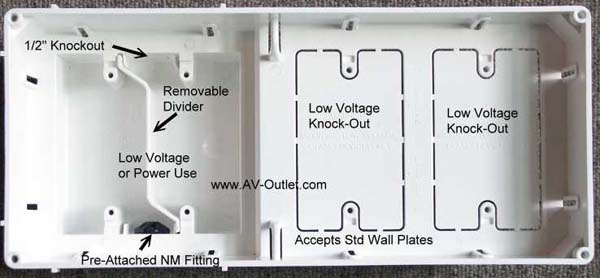

View Arlington TVB613 Recessed Flat Panel AV Box - Front

View Arlington TVB613 Recessed Flat Panel AV Box - Flange Off

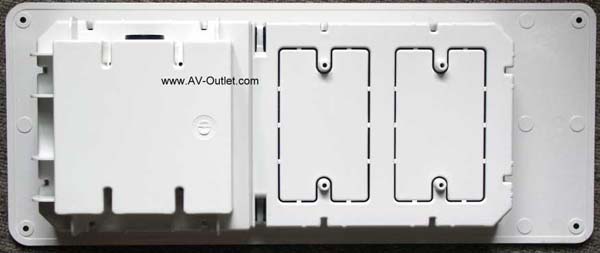

View Arlington TVB613 Recessed Flat Panel AV Box - Back
View the Arlington TVB613 Recessed Flat Panel Box - Product Brochure

Optional Items:

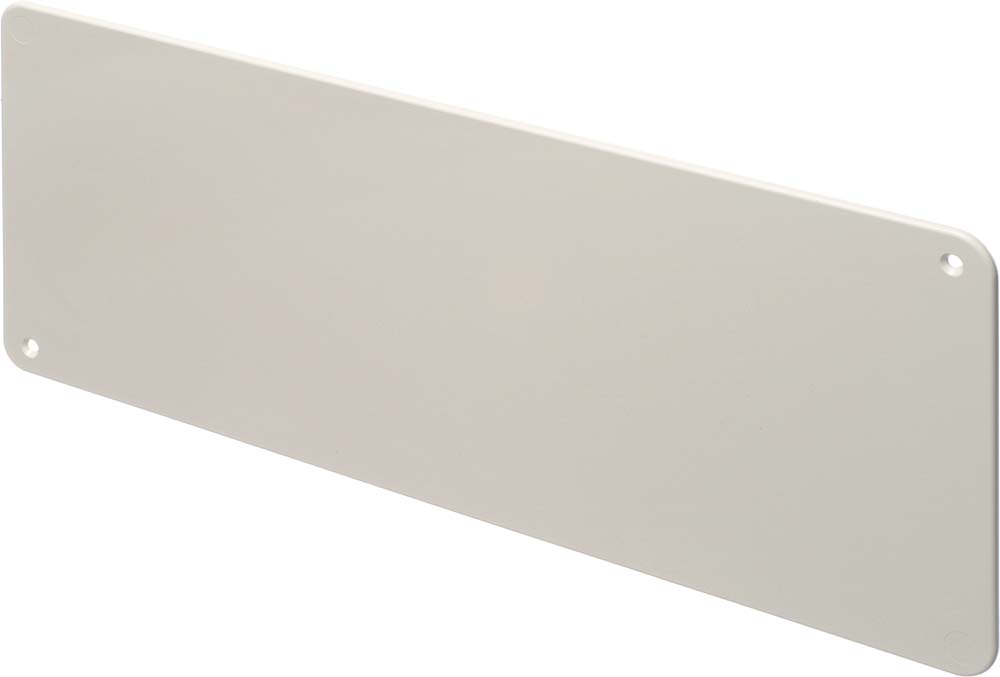

   •  TVB613C Cover Plate - White Only
   •  Bulk Wire Pass Thru Plates - White Only
        -  CED13 Single Gang Decorator Stlye Open Trim Bulk Wire Wall Plate

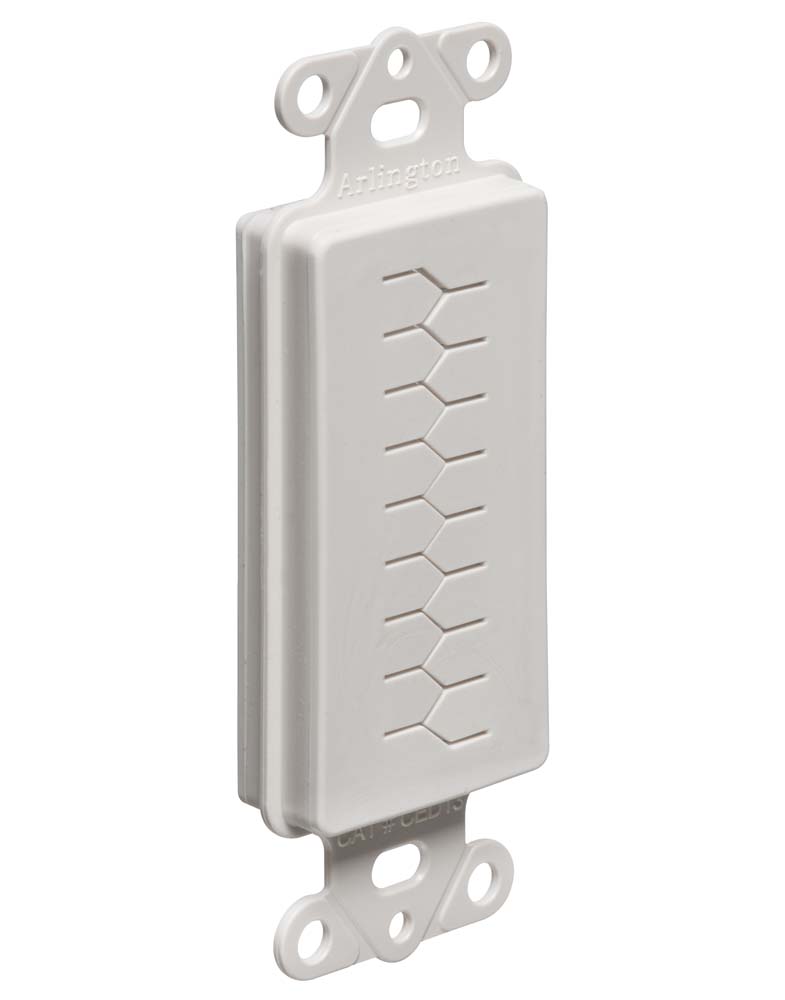

        -  CED130 Single Gang Decorator Style Soft Fingered Bulk Wire Wall Plate


Features

  • Black Black
  • White White
Arlington
  • Four Gang Four Gang
  • Combo Box Combo Box
  • Dual Voltage Dual Voltage
  • NC NC
  • Recessed Recessed
  • Retrofit Retrofit
  • Work Box Work Box
